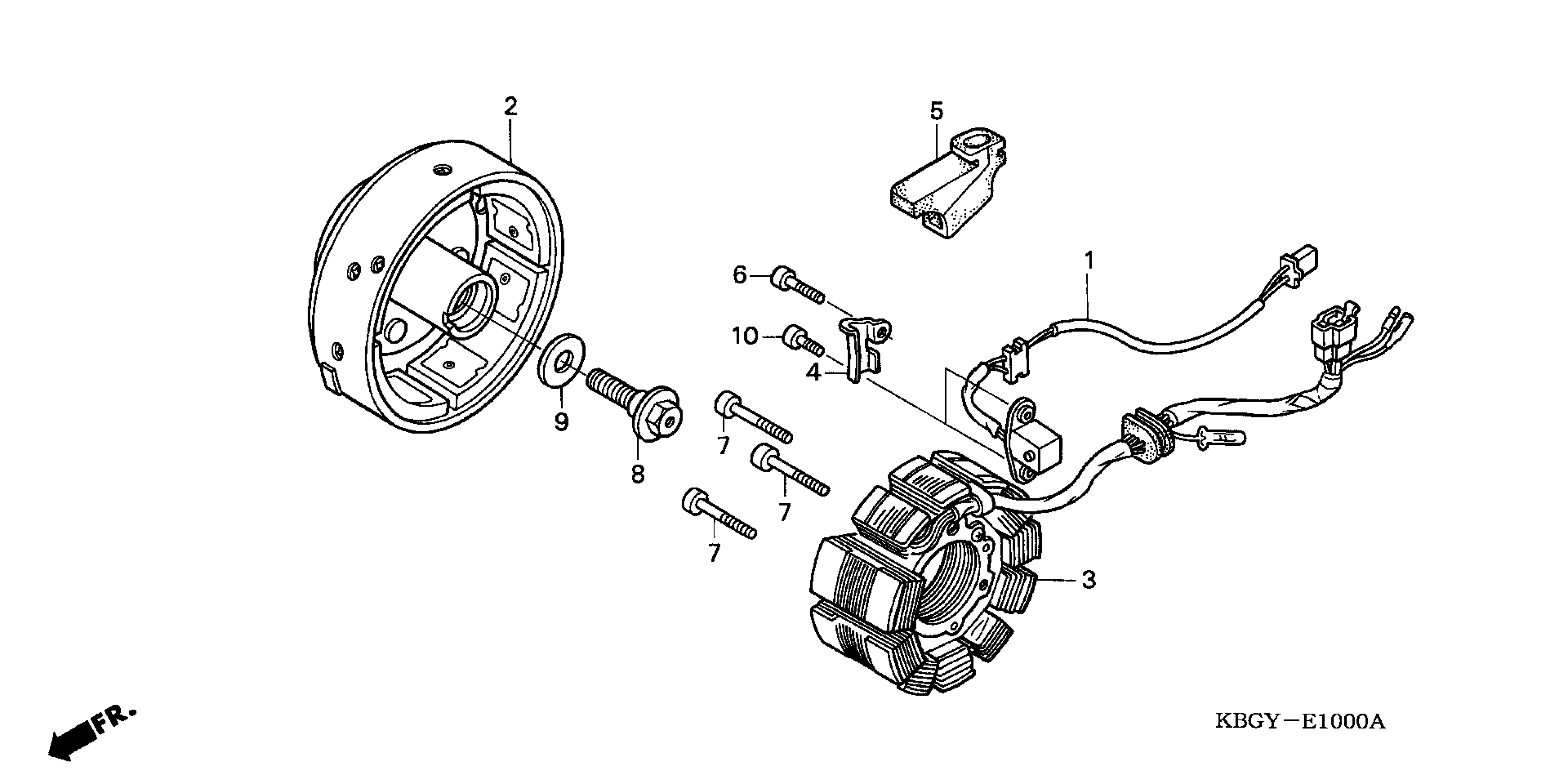

Honda CB250A (07) NIGHTHAWK, JPN, VIN# JH2MC240-7K400001 ALTERNATOR Diagram

#

Description
Price

1

GENERATOR, IGNITION PULSE

30300-KBG-004

$81.31

2

FLYWHEEL

31110-KBG-004

$361.68

3

STATOR

31120-KBG-004

Unavailable

4

CLAMP, WIRE

32912-KB4-670

$5.60

5

GROMMET B

32972-KR3-000

$6.91

6

BOLT, SOCKET (5X12)

90089-KR0-000

$2.80

7

BOLT, SOCKET (5X32)

90115-167-860

$2.01

8

BOLT, ROTOR SETTING

90123-402-700

$11.87

9

WASHER, PLAIN (12MM)

90441-KR3-000

$3.62

10

BOLT, SOCKET (6X20)

96600-06020-00

$1.19
