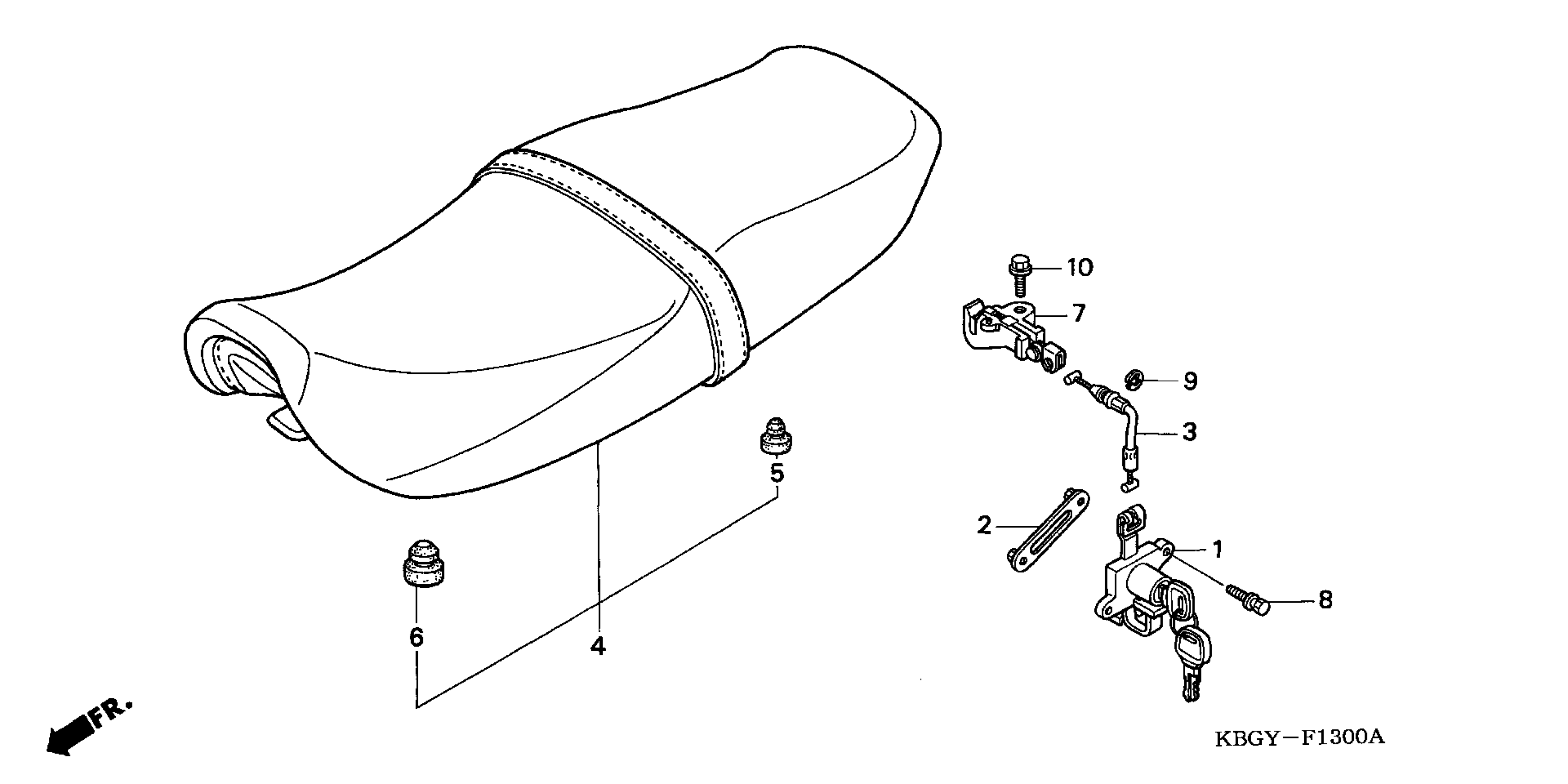

Honda CB250A (04) NIGHTHAWK, JPN, VIN# JH2MC240-4K100001 TO JH2MC240-4K199999 SEAT Diagram

LOCK ASSY., SEAT

77110-MN8-700

$89.25

PLATE, SEAT LOCK SETTING

77112-ML7-000

$8.38

CABLE, SEAT LOCK

77156-KBG-000

$7.18

SEAT ASSY., DOUBLE

77200-KBG-000

$467.75

RUBBER, SEAT CUSHION

77206-GF0-000

$5.46

RUBBER, SEAT CUSHION

77206-KBG-000

$8.08

HOOK, SEAT CATCH | Use up to Frame SN 4K100448 This part replaces 77220-KY6-000.

77220-KY6-010

$29.16

HOOK, SEAT CATCH

77220-KY6-010

$29.16

BOLT, BREAK OFF (6MM)

90008-MZ7-000

$8.03

CIRCLIP (6MM)

90603-720-000

$1.56

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
