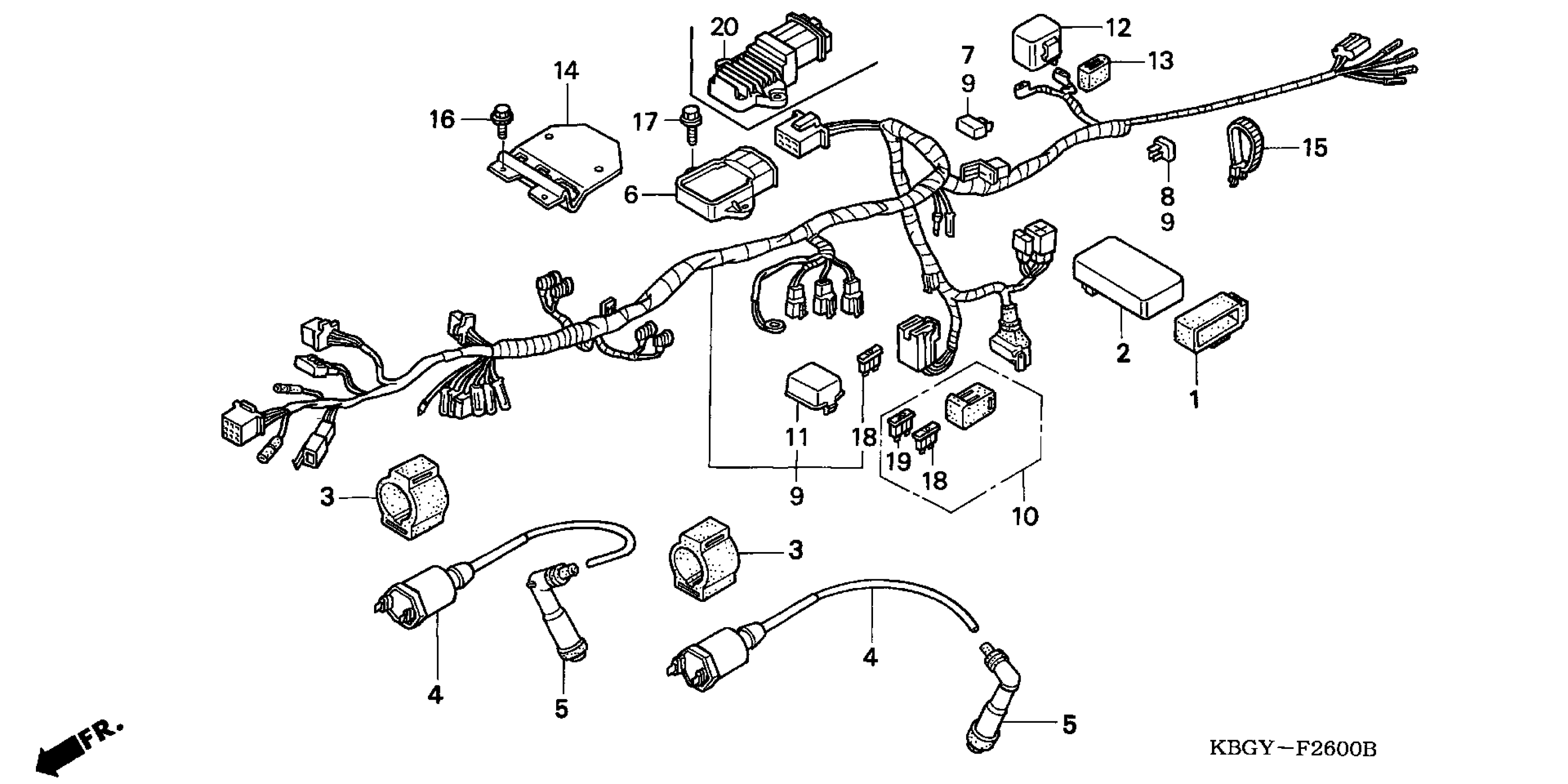

Honda CB250A (02) NIGHTHAWK, JPN, VIN# JH2MC240-2K910001 TO JH2MC240-2K999999 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HA0-000.

30401-KYY-900

$4.21

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)

30410-KBG-003

$223.38

SUSPENSION, IGNITION COIL

30506-KV3-771

$11.89

COIL, IGNITION This part replaces 30510-KBG-000.

30510-MK4-405

$80.38

CAP ASSY. This part replaces 30700-KR3-600.

30700-KR3-601

$21.70

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

RECTIFIER, SILICON

31700-196-000

$26.42

WIRE HARNESS

32100-KBG-000

Unavailable

FUSE, SPARE

38210-KBG-005

$18.36

CASE, FUSE (2P)

38224-SB2-003

$15.77

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

STAY, REGULATOR

50132-KBG-000

$27.28

BAND, WIRE HARNESS

90651-MA6-720

$3.73

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

FUSE, BLADE (10A)

98200-31000

$1.49

FUSE, BLADE (20A)

98200-32000

$1.49

RECTIFIER ASSY., REGULATE (SHINDENGEN)

31600-MV4-010

$278.54
