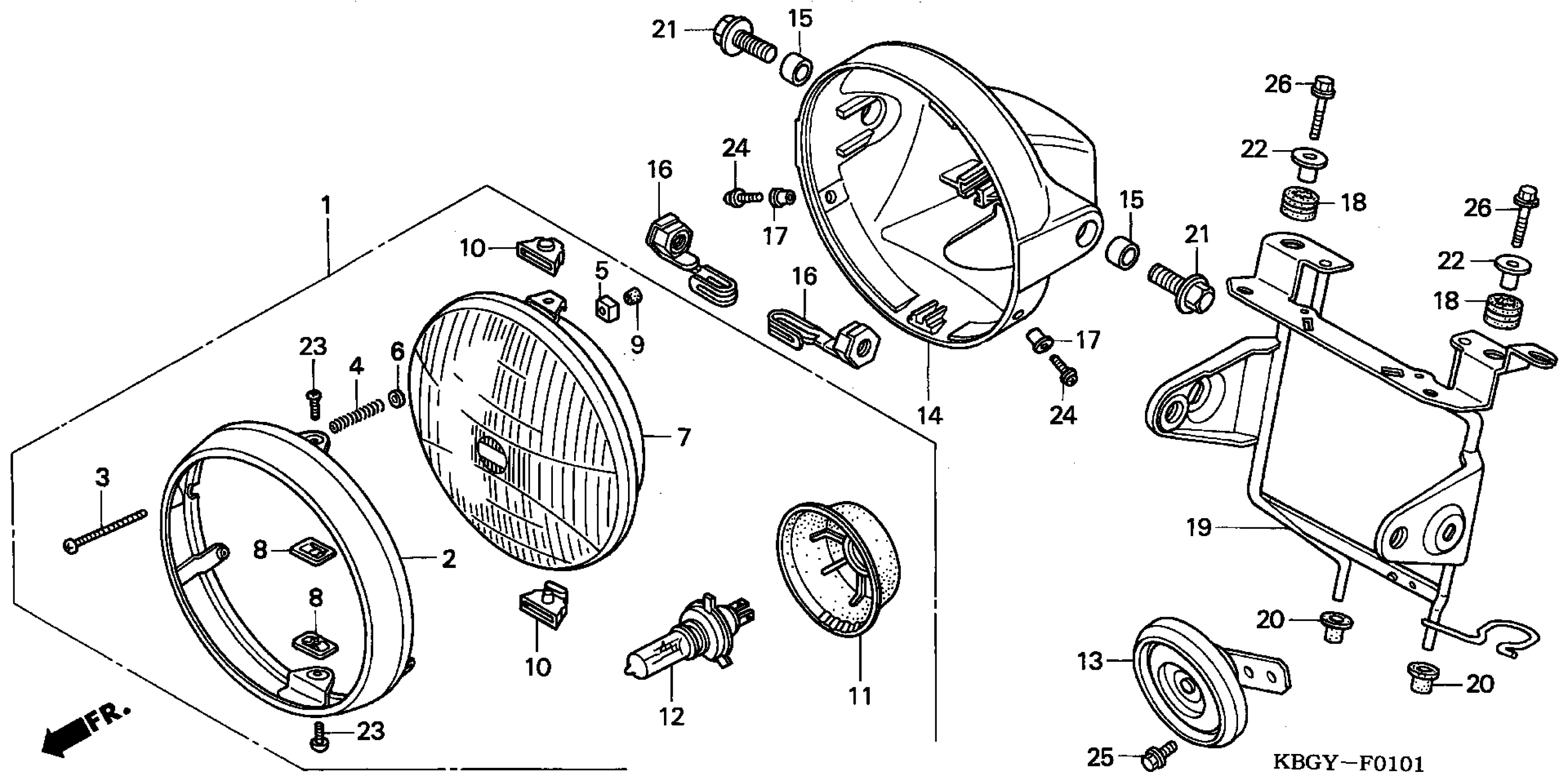

Honda CB250A (01) NIGHTHAWK, JPN, VIN# JH2MC240-1K900001 TO JH2MC240-1K999999 HEADLIGHT (CB250'01-'07) Diagram

#

Description
Price

1

HEADLIGHT ASSY.

33100-KPJ-671

Unavailable

2

RIM, HEADLIGHT

33101-443-611

Unavailable

3

SCREW, BEAM ADJUSTING (4MM)

33103-333-000

Unavailable

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-333-000

$2.20

5

NUT, BEAM ADJUSTING

33118-438-841

$2.23

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

HEADLIGHT UNIT

33120-KPJ-670

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

COVER, SCREW

33136-426-830

$1.89

10

COVER, BEAM ADJUSTING PIVOT

33137-MF5-841

$4.67

11

COVER, RUBBER This part replaces 33180-MC5-003.

33112-MM9-013

$10.09

11

COVER, RUBBER

33112-MM9-013

$10.09

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

13

HORN ASSY. (HIGH)

38110-MJ8-672

Unavailable

14

CASE, HEADLIGHT *NH1* (BLACK)

61301-413-000ZA

$92.44

15

COLLAR, HEADLIGHT CASE

61302-465-770

$5.70

16

NUT, L. HEADLIGHT CASE This part replaces 61303-424-770.

61303-424-771

$10.52

17

COLLAR, HEADLIGHT SETTING

61304-379-690

$11.00

18

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

19

STAY, HEADLIGHT

61311-KBG-010

Unavailable

20

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

21

BOLT, SPECIAL FLANGE (12X25)

90125-KW4-000

$26.43

22

COLLAR (6.2X11)

90501-GR2-000

$6.36

23

SCREW, PAN (5X8)

93500-05008-0H

$1.49

24

SCREW-WASHER (5X16)

93892-05016-07

$1.49

25

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

26

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
