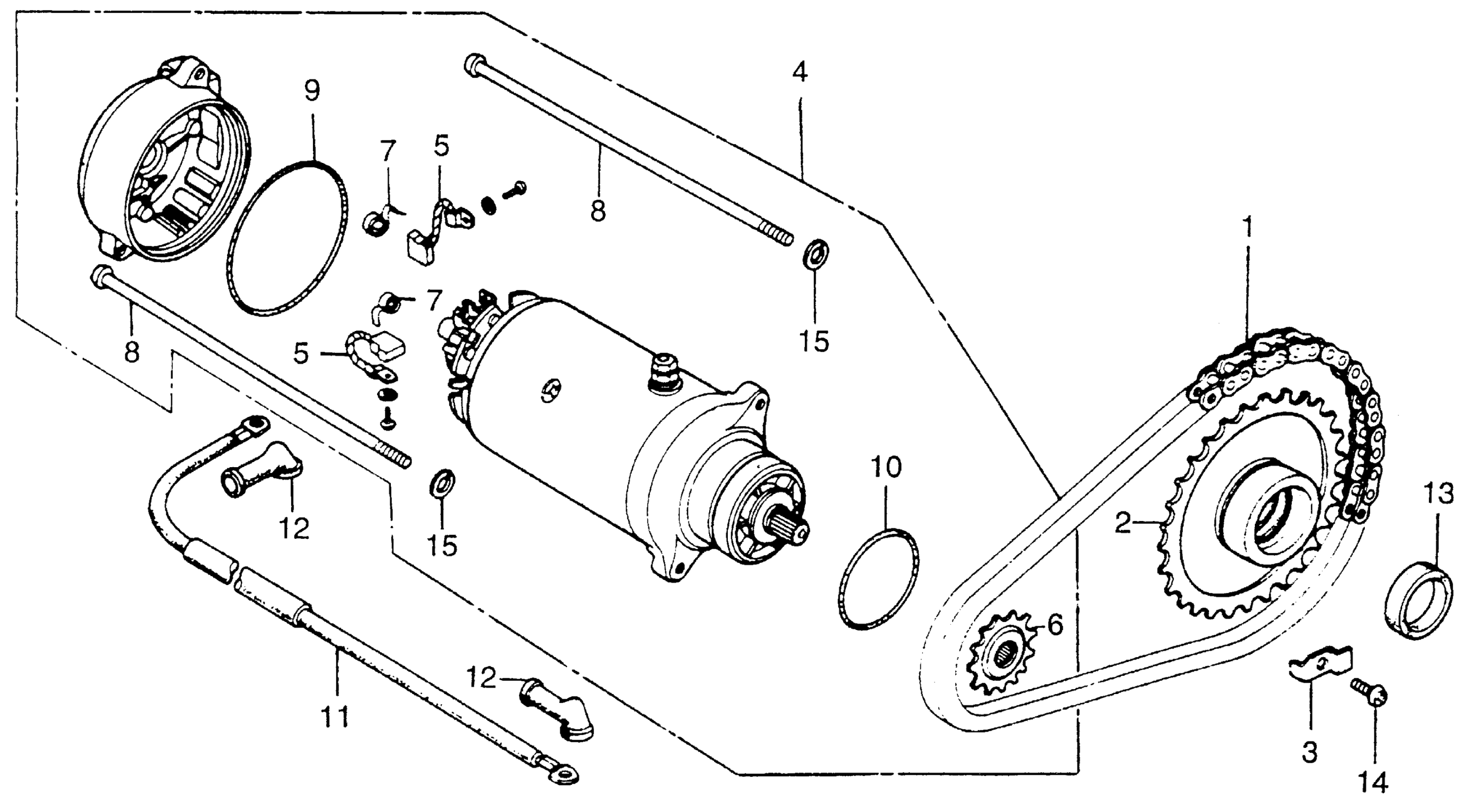

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 STARTING MOTOR Diagram

#

Description
Price

1

CHAIN, STARTER (DID219-54L) (DAIDO) This part replaces 28101-286-003.

28101-402-003

Unavailable

1

CHAIN, STARTER (DID219-54L) (DAIDO)

28101-402-003

Unavailable

2

SPROCKET, STARTER (NOT AVAILABLE)

28110-216-000

Unavailable

3

PLATE, DRIVE SPROCKET SETTING (NOT AVAILABLE)

28117-302-010

Unavailable

4

MOTOR, STARTER (12V) This part replaces 31200-306-158.

31200-306-405

Unavailable

5

BRUSH SET (MITSUBA) This part replaces 31201-216-154.

31201-230-174

Unavailable

5

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

6

SPROCKET, STARTER MOTOR (NOT AVAILABLE)

31202-230-174

Unavailable

7

SPRING, BRUSH

31204-230-174

$4.64

8

BOLT, SETTING (NOT AVAILABLE)

31205-286-158

Unavailable

9

O-RING (60X1.4) This part replaces 31206-286-158.

31206-402-008

Unavailable

9

O-RING (60X1.4)

31206-402-008

Unavailable

10

O-RING (60X1.4) This part replaces 31206-292-158.

31206-402-008

Unavailable

10

O-RING (60X1.4)

31206-402-008

Unavailable

11

CABLE, STARTER MOTOR (NOT AVAILABLE)

32402-304-000

Unavailable

12

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

13

OIL SEAL (20X26X4)

91205-216-003

Unavailable

14

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

15

WASHER, SPRING (6MM)

94111-06000

$1.49
