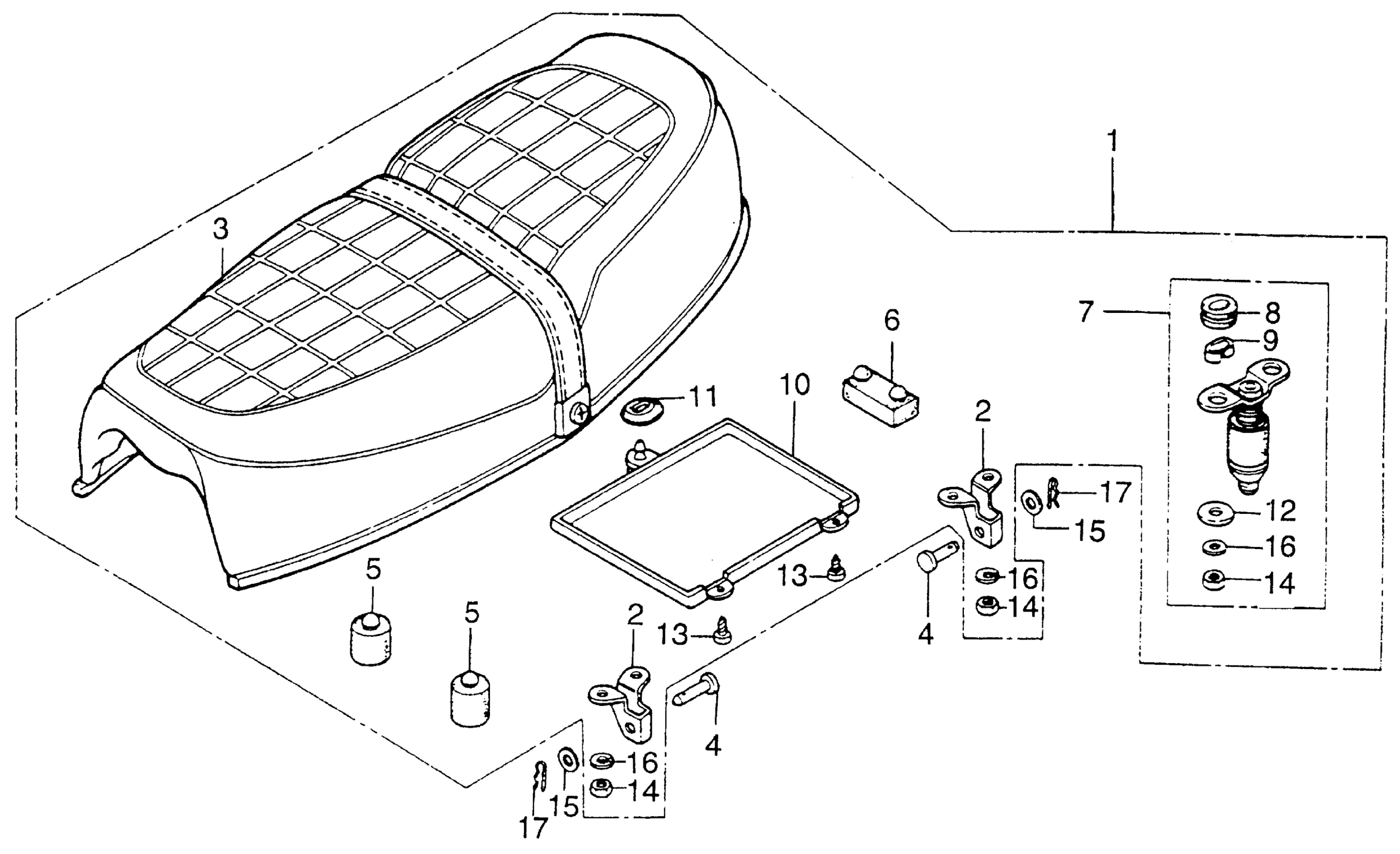

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 SEAT Diagram

#

Description
Price

1

SEAT ASSY. (NOT AVAILABLE)

77200-354-000

Unavailable

2

HINGE, SEAT (NOT AVAILABLE)

77201-317-670

Unavailable

3

COVER, SEAT (NOT AVAILABLE)

77201-354-300

Unavailable

4

PIN, SEAT HINGE (NOT AVAILABLE)

77203-317-670

Unavailable

5

RUBBER A, SEAT SETTING

77204-286-020

$10.02

6

RUBBER B, SEAT SETTING

77205-286-000

$5.28

6

RUBBER B, SEAT SETTING This part replaces 77205-292-010.

77205-286-000

$5.28

7

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

7

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

7

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

8

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

8

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

8

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

9

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

9

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

9

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

10

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

11

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

12

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

12

WASHER, PLAIN (6MM)

94103-06800

$1.49

13

SCREW, TAPPING (5X8)

93901-25080

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49

17

PIN, LOCK (6MM)

94251-06000

$1.49
