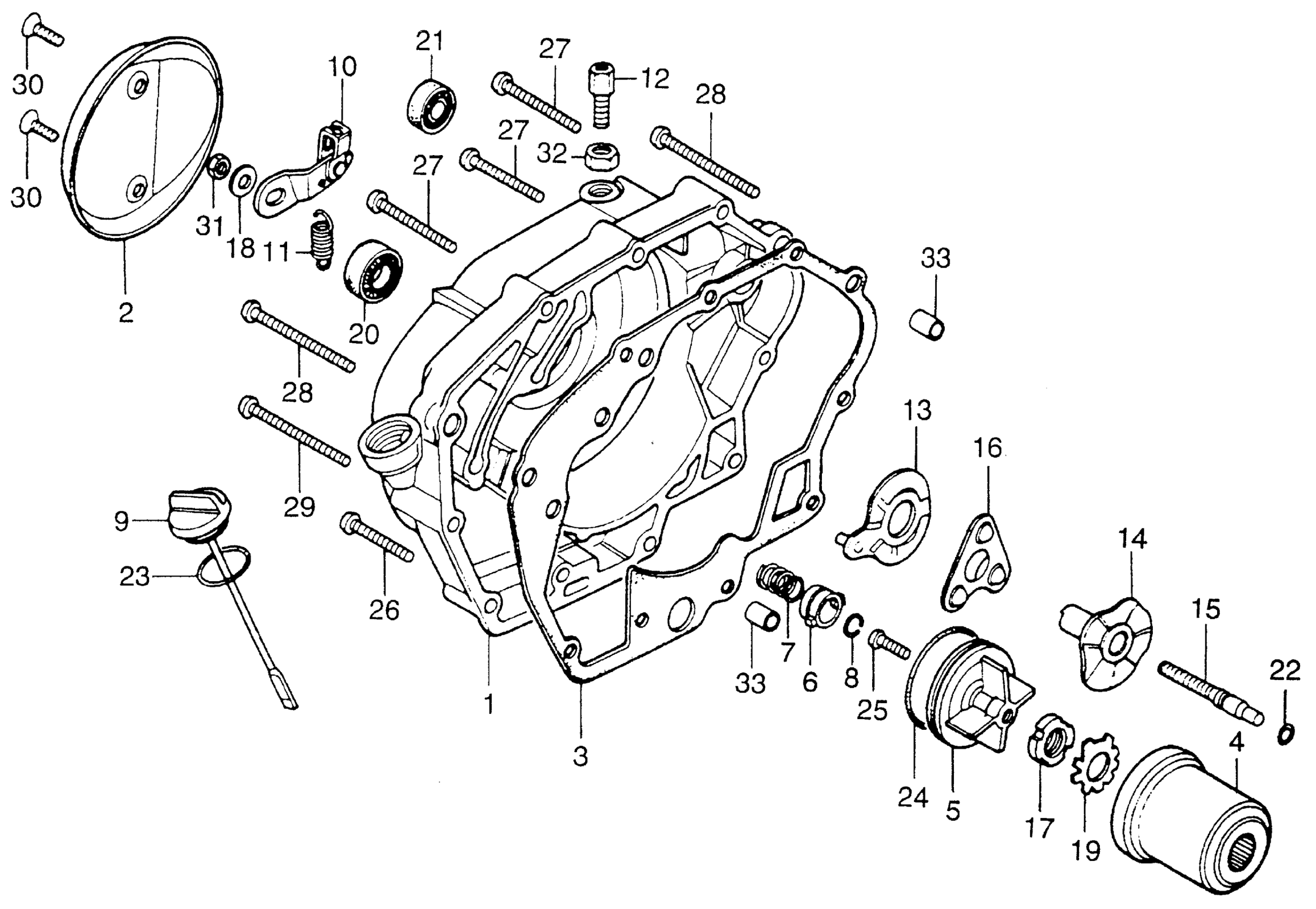

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-354-010

Unavailable

2

COVER, CLUTCH ADJUST

11348-354-000

Unavailable

3

GASKET, R. CRANKCASE COVER This part replaces 11394-302-010.

11394-302-306

Unavailable

3

GASKET, R. CRANKCASE COVER

11394-302-306

Unavailable

4

ROTOR, OIL FILTER (NOT AVAILABLE)

15441-354-000

Unavailable

5

CAP, OIL FILTER (NOT AVAILABLE)

15450-216-000

Unavailable

6

METAL, OIL GUIDE (NOT AVAILABLE)

15594-286-000

Unavailable

7

SPRING, OIL GUIDE METAL (NOT AVAILABLE)

15595-286-000

Unavailable

8

RING, OIL GUIDE METAL STOPPER (NOT AVAILABLE)

15597-286-000

Unavailable

9

DIPSTICK, OIL

15650-354-000

Unavailable

10

LEVER, CLUTCH (NOT AVAILABLE)

22810-354-000

Unavailable

11

SPRING, CLUTCH LEVER

22815-300-000

Unavailable

12

BOLT, ADJUST (A10X44)

22818-354-000

Unavailable

13

PLATE A, CLUTCH CAM (NOT AVAILABLE)

22820-354-000

Unavailable

14

LIFTER, CLUTCH (NOT AVAILABLE)

22830-354-000

Unavailable

15

SCREW, CLUTCH LIFTER ADJUSTING (NOT AVAILABLE)

22837-354-000

Unavailable

16

RETAINER, CLUTCH BALL

22860-046-000

$7.04

17

NUT, LOCK (16MM) This part replaces 90231-028-000.

90231-KCS-651

$4.21

17

NUT, LOCK (16MM) This part replaces 90231-200-000.

90231-KCS-651

$4.21

18

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

19

WASHER, SPRING (16MM)

90431-292-000

$2.92

20

OIL SEAL (12X28X5) (NOT AVAILABLE)

91201-011-000

Unavailable

21

OIL SEAL (14X24X5)

91202-KFL-841

$5.04

21

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$5.04

21

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

21

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

21

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

21

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$5.04

22

O-RING (5.1X2.2) (NOT AVAILABLE)

91301-354-000

Unavailable

23

O-RING (27.5X2.6) This part replaces 91302-001-000.

91302-001-710

$2.99

23

O-RING (27.5X2.6)

91302-001-710

$2.99

24

O-RING (46X2) This part replaces 91305-216-000.

91305-426-003

$7.19

24

O-RING (46X2)

91305-426-003

$7.19

25

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

25

SCREW, PAN (6X20)

93500-06020-0A

$1.49

26

SCREW, PAN (6X35)

93500-06035-0A

$1.49

26

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

27

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

27

SCREW, PAN (6X45)

93500-06045-0A

$1.49

28

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

28

SCREW, PAN (6X50)

93500-06050-0A

$1.49

29

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

29

SCREW, PAN (6X55)

93500-06055-0A

$1.49

30

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

30

SCREW, OVAL (6X16)

93700-06016-0A

$1.49

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (10MM)

94001-10000-0S

$1.49

33

PIN A, DOWEL (10X14)

94301-10140

$2.28
