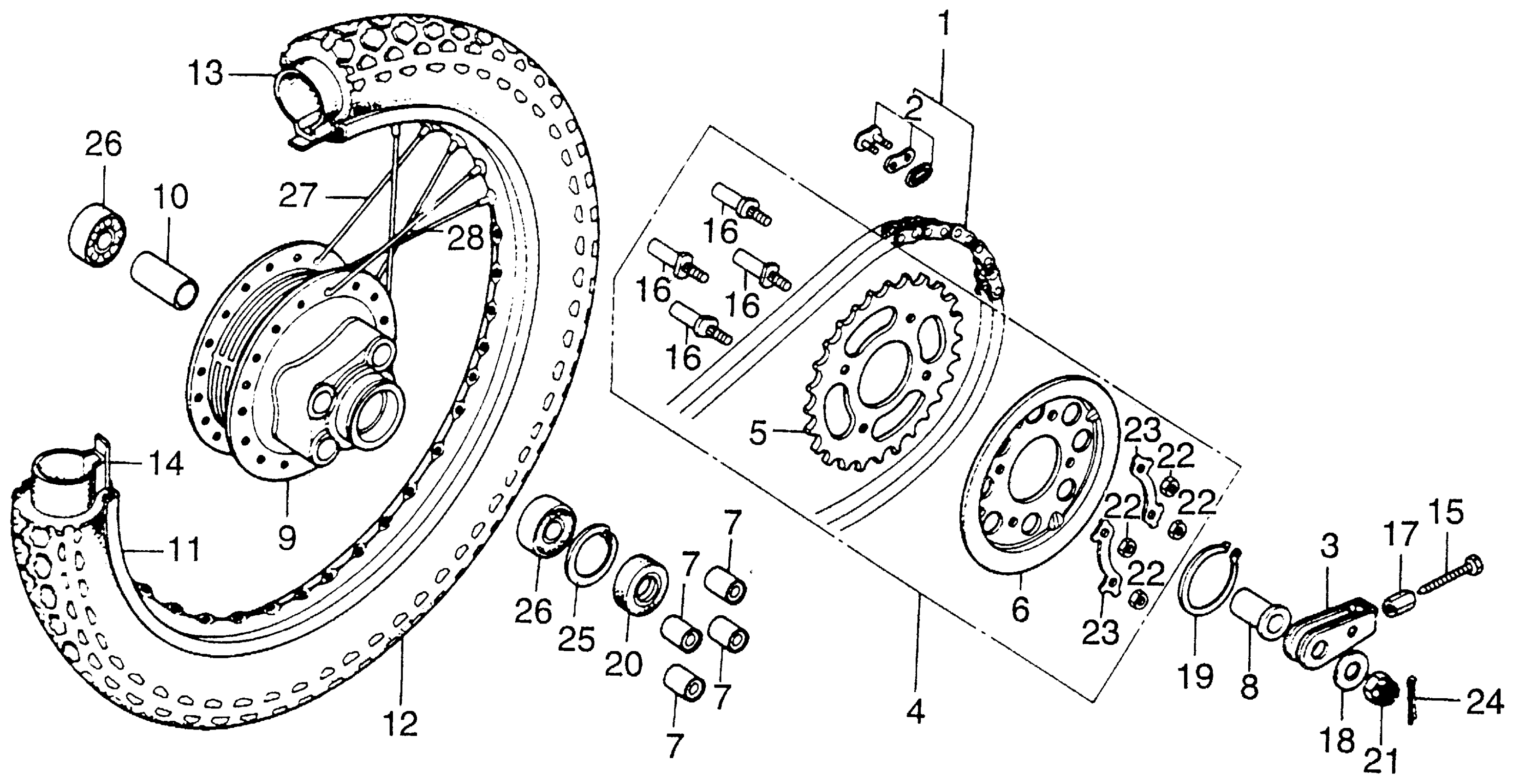

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 REAR WHEEL Diagram

#

Description
Price

1

CHAIN, DRIVE (102L) (DAIDO)

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-343-003.

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-343-005.

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-343-015.

405W3-434-505

Unavailable

2

MASTER LINK (DAIDO) (NOT AVAILABLE)

40531-343-003

Unavailable

2

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-343-005

Unavailable

3

ADJUSTER, DRIVE CHAIN

40543-216-000

Unavailable

4

SPROCKET ASSY., FINAL DRIVEN (NOT AVAILABLE)

41200-454-000

Unavailable

5

SPROCKET, FINAL DRIVEN (35T) (NOT AVAILABLE)

41201-343-010

Unavailable

6

PLATE, SPROCKET SIDE (NOT AVAILABLE)

41211-453-000

Unavailable

7

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

8

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-216-000

Unavailable

9

HUB, RR. WHEEL (NOT AVAILABLE)

42610-354-000

Unavailable

10

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-235-000

Unavailable

11

RIM, RR. WHEEL (1.60X18) (DAIDO) (NOT AVAILABLE)

42701-235-003

Unavailable

12

TIRE, RR. (3.00-18) (YOKOHAMA) (NOT AVAILABLE) | Use up to Frame SN 2028160

42711-315-009

Unavailable

13

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

13

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

13

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

13

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

13

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

13

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

13

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

13

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

14

FLAP, TIRE (1.40/1.60-18) (BS) | Use up to Frame SN 2028160 This part replaces 42713-268-003.

42713-304-003

$6.69

14

FLAP, TIRE (1.40/1.60-18) (BS) | Use up to Frame SN 2028160 This part replaces 42713-268-810.

42713-304-003

$6.69

14

FLAP, TIRE (1.40/1.60-18) (BS) | Use from Frame SN 2028161 This part replaces 42713-286-003.

42713-304-003

$6.69

14

FLAP, TIRE (1.40/1.60-18) (BS) | Use from Frame SN 2028161

42713-304-003

$6.69

14

FLAP, TIRE (1.40/1.60-18) (BS) | Use up to Frame SN 2028160 This part replaces 42713-340-006.

42713-304-003

$6.69

14

FLAP, TIRE (1.40/1.60-18) (BS) | Use from Frame SN 2028161 This part replaces 42713-389-009.

42713-304-003

$6.69

14

FLAP, TIRE (1.40/1.60-18) (BS) | Use up to Frame SN 2028160 This part replaces 44713-205-000.

42713-304-003

$6.69

15

BOLT, CHAIN ADJUSTING

90119-258-000

$5.99

16

BOLT, SPROCKET (NOT AVAILABLE)

90128-343-310

Unavailable

17

NUT (6X15)

90282-329-000

$4.67

18

WASHER (16.5X30) (NOT AVAILABLE)

90523-286-000

Unavailable

19

CIRCLIP (58MM)

90664-216-000

$5.55

20

DUST SEAL, WHEEL DAMPER (NOT AVAILABLE)

90757-216-003

Unavailable

21

NUT, CASTLE (16MM) (NOT AVAILABLE)

94011-16220-0S

Unavailable

22

NUT, HEX. (8MM)

94031-08000

$1.49

23

WASHER A3, TONGUED

94108-13000

$1.49

24

PIN, COTTER (4.0X30)

94201-40300

$1.49

25

CIRCLIP (INNER) (47MM) (NOT AVAILABLE)

94521-47000

$2.39

25

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

26

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030.

96140-63030-10

$14.48

26

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030-00.

96140-63030-10

$14.48

26

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

27

SPOKE B (9X163.5)

97395-52167-10

Unavailable

28

SPOKE B (9X162.5) (NOT AVAILABLE)

97660-52165-10

Unavailable
