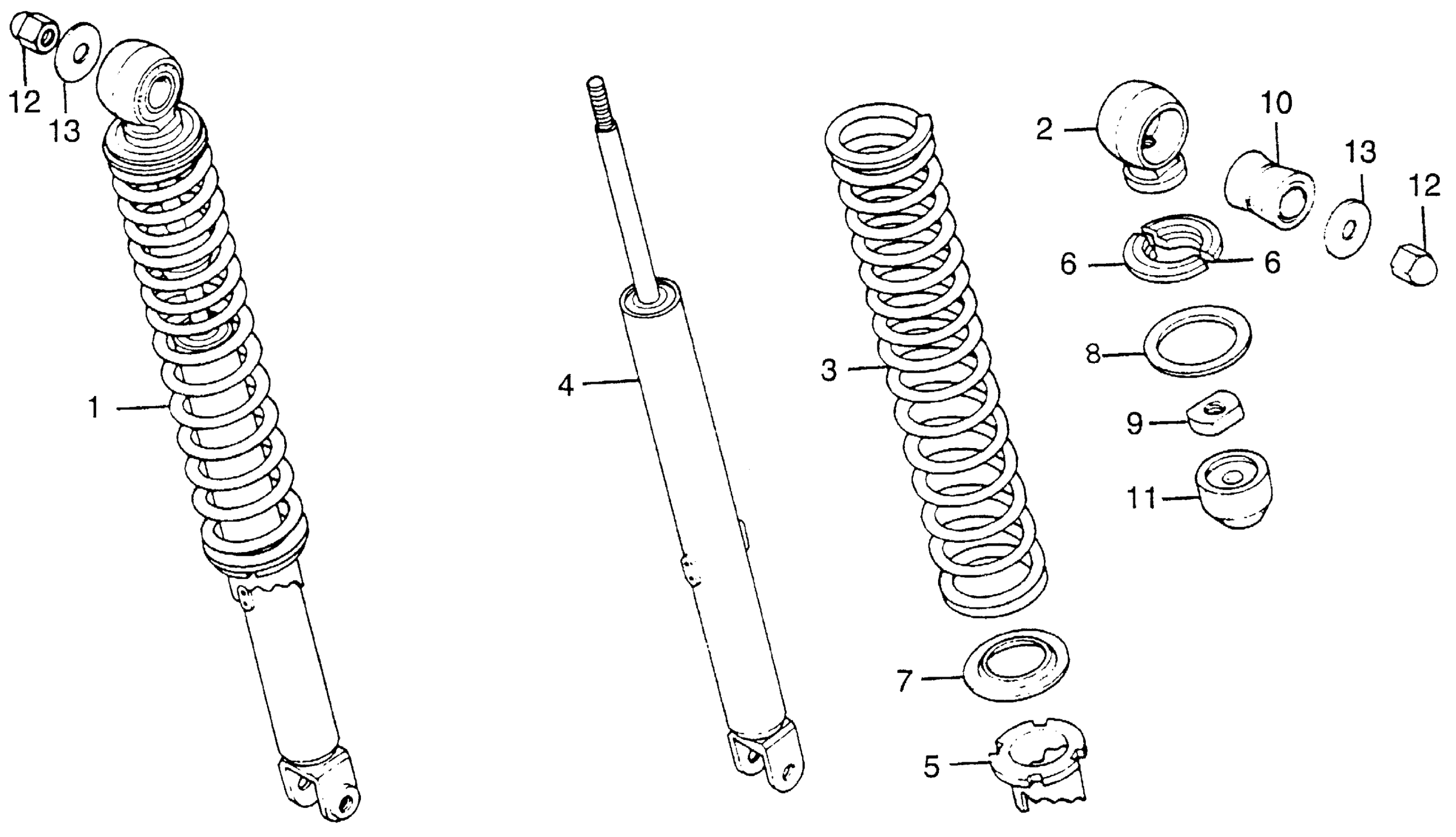

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-454-000

Unavailable

JOINT (UPPER) (NOT AVAILABLE)

52403-317-700

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52411-453-000

Unavailable

DAMPER, RR. (NOT AVAILABLE)

52420-453-000

Unavailable

ADJUSTER, RR. SHOCK ABSORBER SPRING

52422-455-000

Unavailable

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

SEAT, SPRING (LOWER) (NOT AVAILABLE)

52458-317-700

Unavailable

SEAT, RR. SHOCK ABSORBER SPRING (UPPER) (SHOWA) (NOT AVAILABLE)

52459-074-003

Unavailable

NUT, LOCK (9MM) (NOT AVAILABLE)

52482-331-003

Unavailable

RUBBER, JOINT (NOT AVAILABLE)

52485-303-000

Unavailable

RUBBER, STOPPER

52517-331-003

Unavailable

NUT, FLANGE (10MM)

90309-315-000

$5.35

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95
