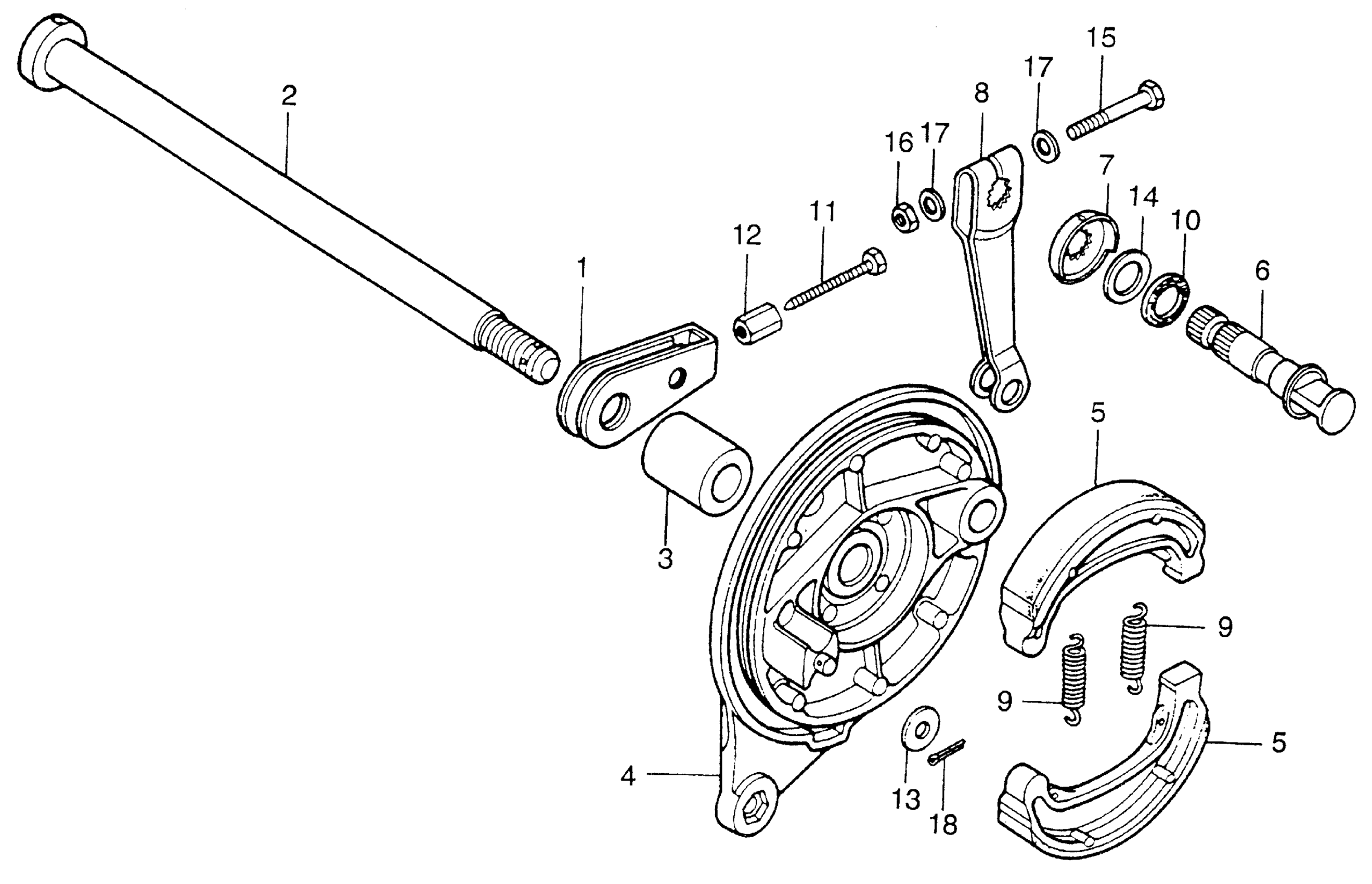

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 REAR BRAKE PANEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN

40543-216-000

Unavailable

2

AXLE, RR. WHEEL This part replaces 42301-316-670.

42301-316-671

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE

42313-216-000

Unavailable

4

PANEL, RR. BRAKE (NOT AVAILABLE)

43110-354-010

Unavailable

5

*06430-354-405 This part replaces 43120-354-670.

43120-354-405

Unavailable

6

CAM, RR. BRAKE (NOT AVAILABLE)

43141-362-000

Unavailable

7

PLATE, BRAKE INDICATOR (NOT AVAILABLE)

43145-369-000

Unavailable

8

ARM, RR. BRAKE (NOT AVAILABLE)

43410-333-670

Unavailable

9

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

BOLT, CHAIN ADJUSTING

90119-258-000

$5.99

12

NUT (6X15)

90282-329-000

$4.67

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

WASHER (14MM)

90549-121-000

Unavailable

15

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

15

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

15

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

18

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

18

PIN, COTTER (2.0X22)

94201-20220

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

18

PIN, COTTER (2.0X35)

94201-20350

$1.49

18

PIN, COTTER (2.0X22)

94201-29220

$1.49
