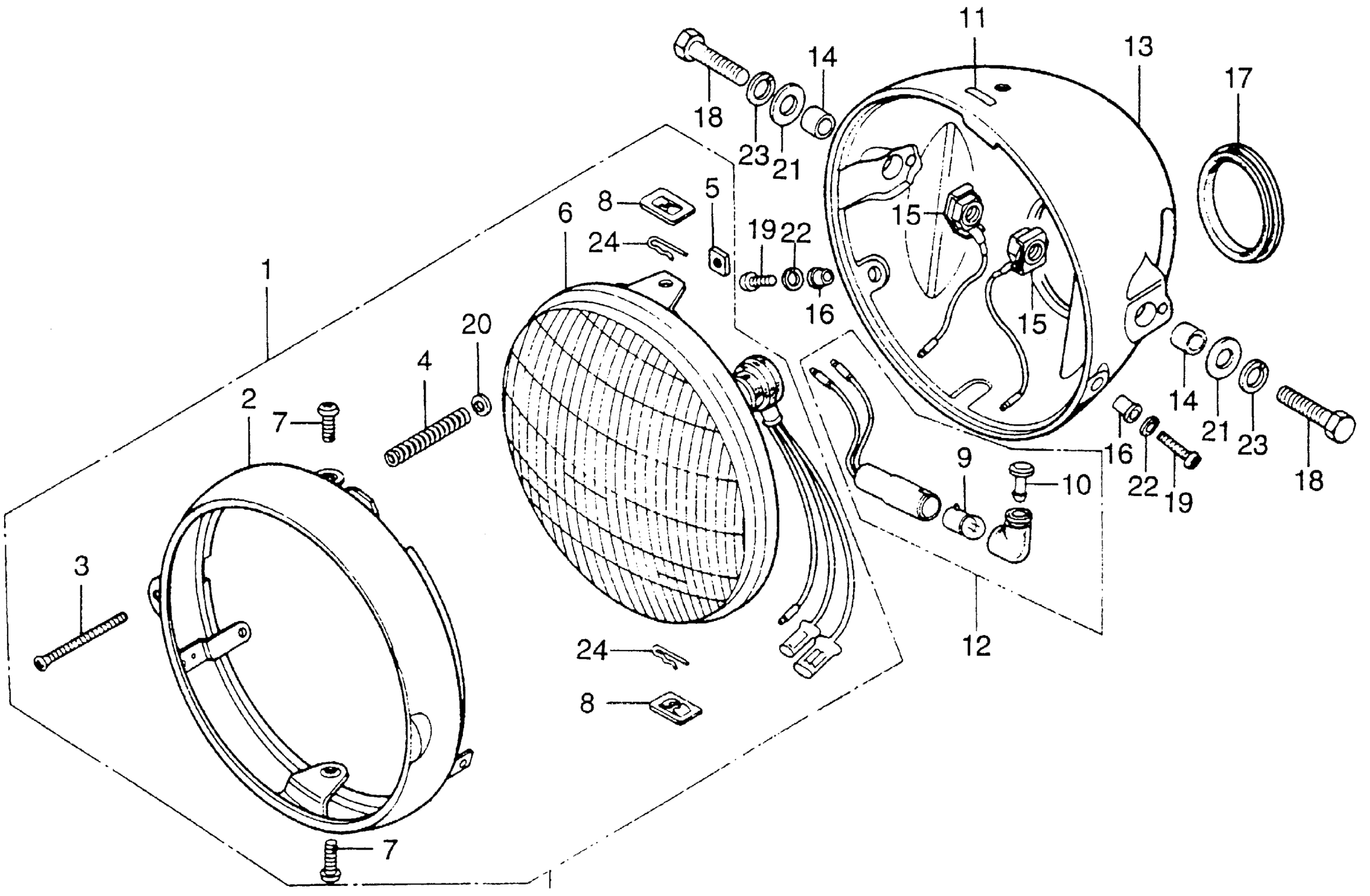

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 35/25W) (NOT AVAILABLE)

33100-292-674

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-292-672

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33103-292-670

Unavailable

4

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE)

33107-283-000

Unavailable

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

5

NUT, HEADLIGHT BEAM ADJ. This part replaces 33117-292-003.

33117-001-023

$2.39

6

HEADLIGHT UNIT (12V 35/25W)

33120-292-673

Unavailable

7

SCREW, UNIT HOLDER

33125-292-670

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

10

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE) This part replaces 37551-329-005.

37551-329-015

Unavailable

10

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE)

37551-329-015

Unavailable

11

LABEL, BEAM PILOT LAMP

37555-370-740

Unavailable

12

LAMP ASSY., HIGH BEAM PILOT (IMASEN) (NOT AVAILABLE)

37620-456-005

Unavailable

13

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE) This part replaces 61301-333-003B.

61301-333-013B

Unavailable

14

COLLAR, HEADLIGHT CASE

61302-292-000

Unavailable

15

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

16

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

17

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61306-333-003

Unavailable

18

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10032-0B.

92101-10032-0B

Unavailable

18

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.)

92101-10032-0B

Unavailable

19

SCREW, PAN (5X16)

93500-05016-0B

$1.49

20

WASHER, PLAIN (4MM)

94101-04000

$1.49

21

WASHER, PLAIN (10MM)

94101-10000

$1.49

22

WASHER, SPRING (5MM)

94111-05000

$1.49

23

WASHER, SPRING (8MM)

94111-10000

$1.49

24

PIN, LOCK (5MM)

94251-05000

$1.49
