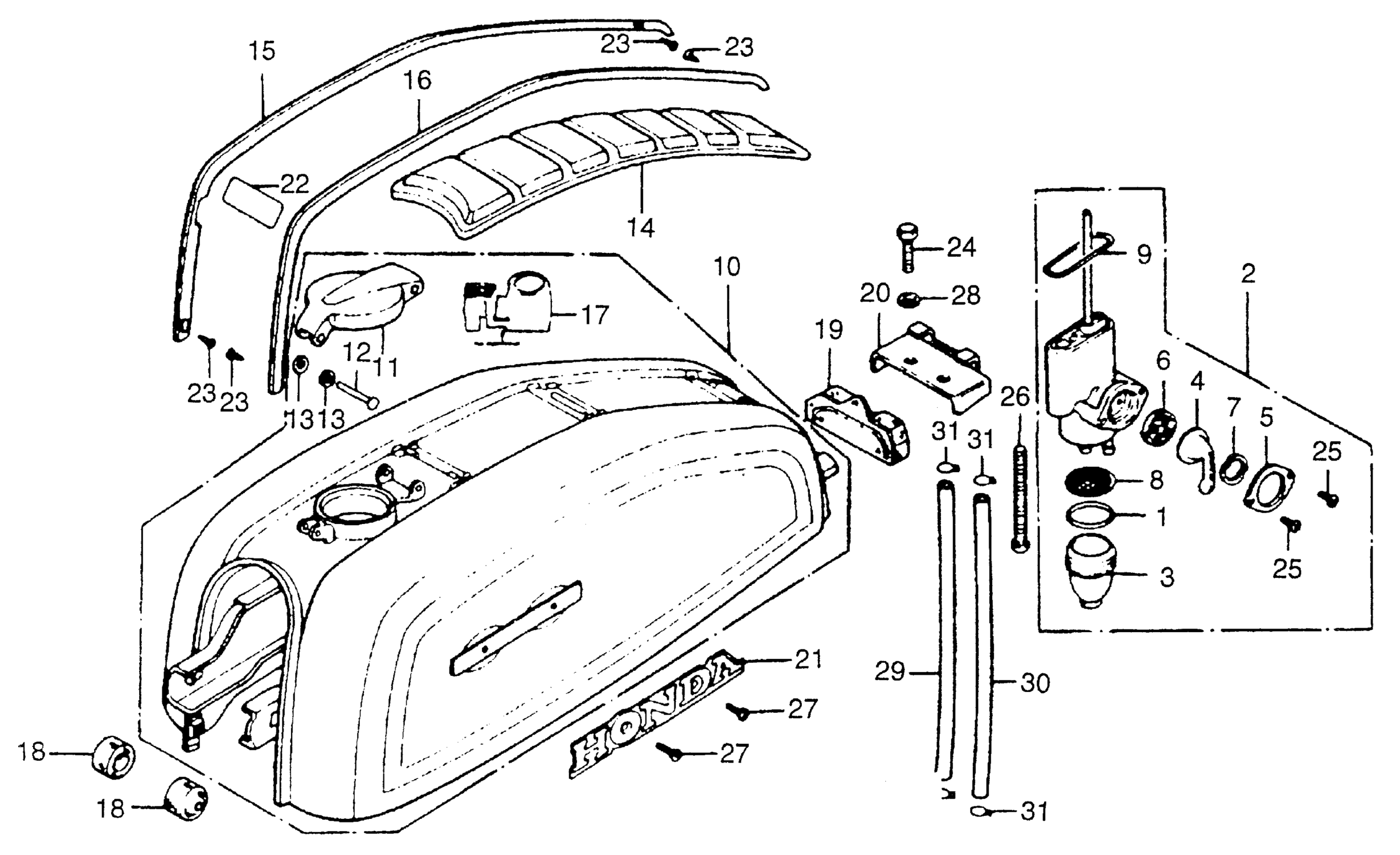

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 FUEL TANK Diagram

#

Description
Price

1

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$20.32

1

GASKET, FUEL STRAINER CUP

16173-001-004

$4.81

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.35

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.35

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.35

2

PETCOCK ASSY. (NOT AVAILABLE)

16950-389-670

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

4

LEVER, PETCOCK (NOT AVAILABLE)

16953-389-670

Unavailable

5

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16954-389-670

Unavailable

6

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$2.85

6

GASKET, VALVE

16957-ZE1-812

$2.85

7

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.01

7

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.01

7

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.01

7

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.01

8

SCREEN, FUEL STRAINER

16957-028-000

$14.57

8

SCREEN, FUEL STRAINER This part replaces 16957-028-004.

16957-028-000

$14.57

9

GASKET, PETCOCK BODY

16997-273-006

$6.47

10

TANK ASSY., FUEL *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE)

17050-389-670LX

Unavailable

10

TANK ASSY., FUEL *NH42MC* (CUSTOM SILVER) (NOT AVAILABLE)

17050-389-670NQ

Unavailable

10

TANK ASSY., FUEL *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE) This part replaces 17500-389-670LX.

17050-389-670LX

Unavailable

10

TANK ASSY., FUEL *NH42MC* (CUSTOM SILVER) (NOT AVAILABLE) This part replaces 17500-389-670NQ.

17050-389-670NQ

Unavailable

11

CAP, FUEL TANK

17510-323-310

Unavailable

12

PIN B, FUEL FILLER CAP (NOT AVAILABLE)

17514-323-300

Unavailable

13

WASHER, FILLER CAP FRICTION (NOT AVAILABLE)

17520-323-300

Unavailable

14

COVER, FUEL TANK (NOT AVAILABLE)

17521-351-000

Unavailable

15

MOLDING, R. FUEL TANK (NOT AVAILABLE)

17540-351-000

Unavailable

16

MOLDING, L. FUEL TANK (NOT AVAILABLE)

17550-351-000

Unavailable

17

LATCH ASSY., FUEL FILLER CAP

17550-377-315

Unavailable

18

RUBBER, FR. FUEL TANK

17611-303-000

$7.10

19

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-351-000

Unavailable

20

PLATE, SEAT CATCH (NOT AVAILABLE)

77234-351-000

Unavailable

21

EMBLEM, R. FUEL TANK

87121-351-000

Unavailable

22

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$2.96

23

SCREW, TAPPING (3X5)

90109-351-000

Unavailable

24

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

24

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

24

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

25

SCREW, PAN (3X6)

93500-03006-0A

$0.83

26

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.29

26

SCREW, PAN (6X40)

93500-06040-0A

$1.29

27

SCREW, OVAL (3X6)

93700-03006-0G

$0.68

28

WASHER, SPRING (6MM)

94111-06000

$0.86

29

BULK HOSE, FUEL (4.5X3000) (4.5X160)

95001-45003-60M

$32.93

30

BULK HOSE, FUEL (4.5X3000) (4.5X180)

95001-45003-60M

$32.93

31

CLIP, TUBE (B8)

95002-02080

$1.59
