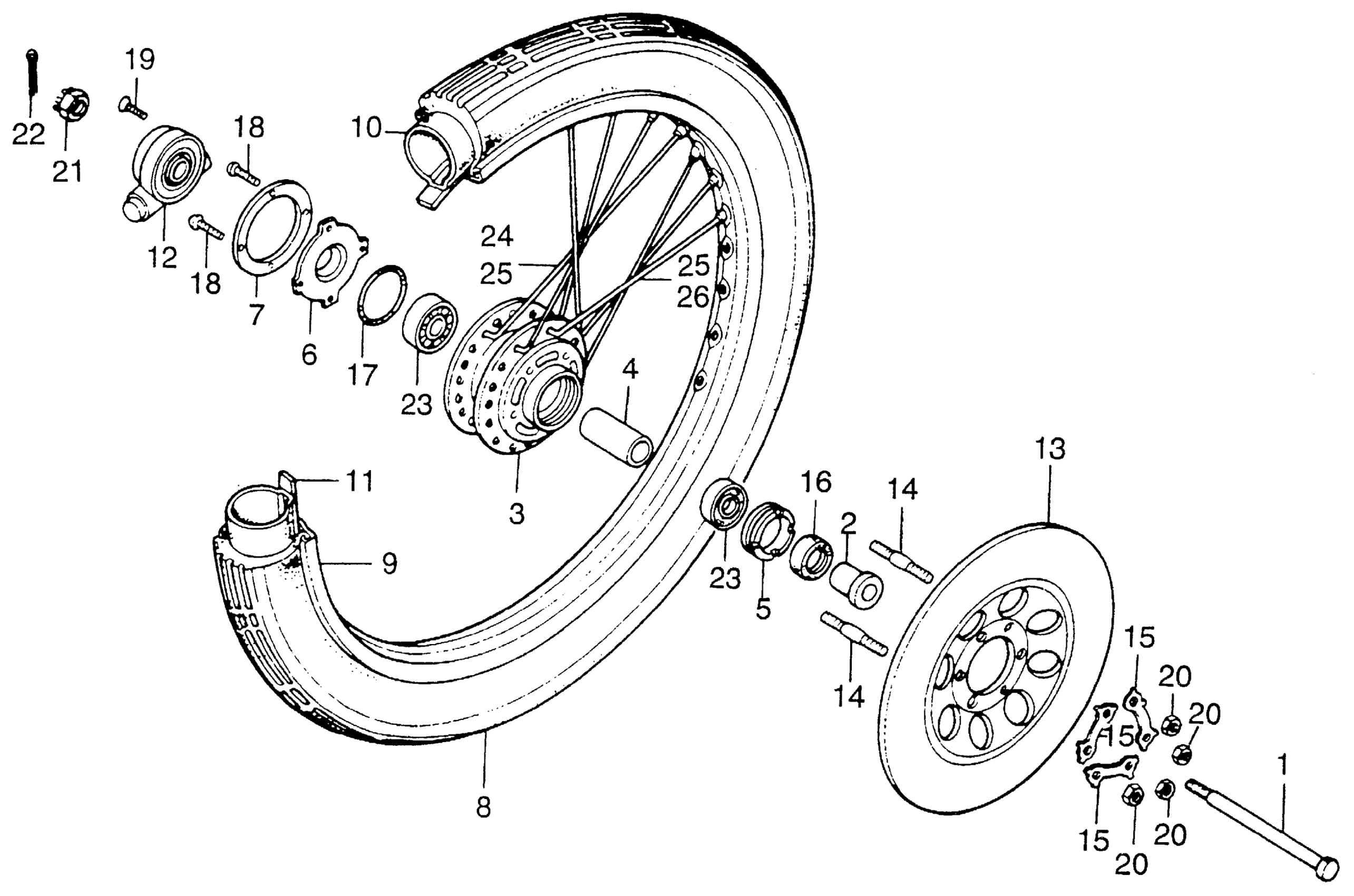

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FR. WHEEL

44301-304-971

Unavailable

2

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44321-351-700

Unavailable

3

HUB, FR. WHEEL (NOT AVAILABLE)

44611-351-700

Unavailable

4

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

5

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

6

RETAINER, GEAR BOX (NOT AVAILABLE)

44680-351-700

Unavailable

7

COVER, GEAR BOX (NOT AVAILABLE)

44691-351-700

Unavailable

8

TIRE, FR. (2.75-18) (YOKOHAMA) (NOT AVAILABLE) | Use up to Frame SN 2028160

44711-315-009

Unavailable

9

RIM, FR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 2028160 This part replaces 44711-354-701.

44701-317-701

Unavailable

9

RIM, FR. WHEEL (NOT AVAILABLE)

44701-317-701

Unavailable

9

RIM, FR. WHEEL (NOT AVAILABLE) This part replaces 44701-354-701.

44701-317-701

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 08400-21600.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 42712-166-004.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-028-000.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-150-005.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-205-000.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-315-009.

42712-KC6-005

Unavailable

11

FLAP, TIRE (1.40/1.60-18) (BS) | Use up to Frame SN 2028160 This part replaces 42713-268-003.

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS) | Use up to Frame SN 2028160 This part replaces 42713-268-810.

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS) | Use from Frame SN 2028161 This part replaces 42713-286-003.

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS) | Use from Frame SN 2028161

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS) | Use up to Frame SN 2028160 This part replaces 42713-340-006.

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS) | Use from Frame SN 2028161 This part replaces 42713-389-009.

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS) | Use up to Frame SN 2028160 This part replaces 44713-205-000.

42713-304-003

$6.69

12

BOX, SPEEDOMETER GEAR

44800-354-701

Unavailable

13

DISK, FR. BRAKE (NOT AVAILABLE)

45251-351-700

Unavailable

14

BOLT, STUD (6X28)

90135-107-720

$2.56

15

WASHER (6MM)

90522-351-700

Unavailable

16

DUST SEAL (22X36X8)

91252-300-003

$10.73

17

O-RING (47MM) (NOT AVAILABLE)

91304-250-015

Unavailable

18

SCREW, PAN (5X20)

93500-05020-0A

$1.49

19

SCREW, FLAT (5X20)

93600-05020-0A

$1.49

19

SCREW, FLAT (5X20) This part replaces 93617-05020-0A.

93600-05020-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

NUT, CASTLE (14MM) (NOT AVAILABLE)

94011-14020-0S

Unavailable

22

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

22

PIN, COTTER (3.0X45)

94201-30450

$1.49

23

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

23

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

24

SPOKE B (9X200.5) (NOT AVAILABLE)

97394-52241-10

Unavailable

26

SPOKE B (9X200) (NOT AVAILABLE)

97718-52240-10

Unavailable
