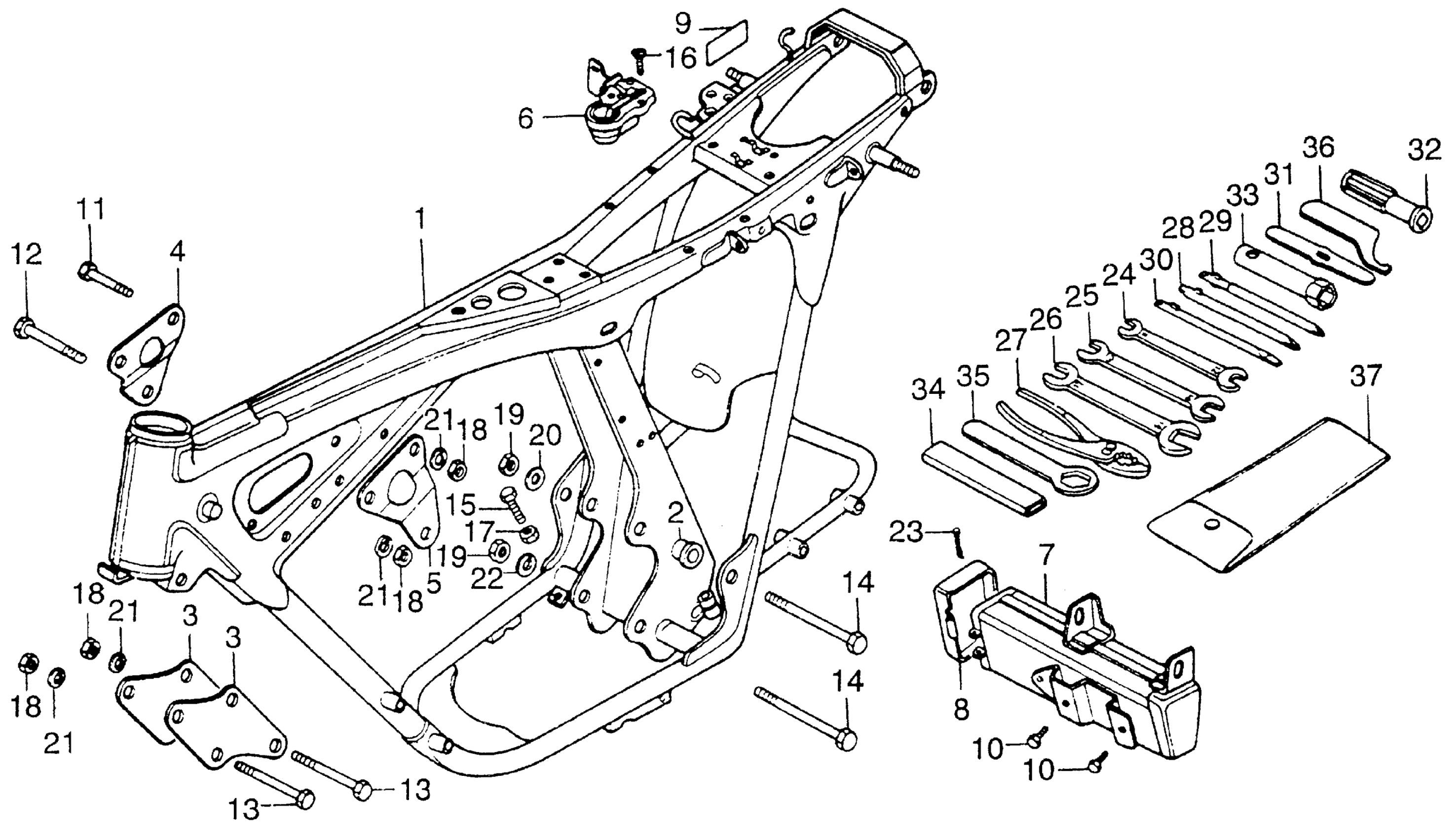

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 FRAME + TOOLS Diagram

#

Description
Price

1

FRAME *NH1* (BLACK)

50110-354-010B

Unavailable

2

BUSH, CENTER PIPE (NOT AVAILABLE)

50157-303-000

Unavailable

3

PLATE, R. FR. ENGINE HANGER (NOT AVAILABLE)

50352-351-000

Unavailable

4

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-354-000

Unavailable

5

STAY, L. ENGINE HANGER (NOT AVAILABLE)

50355-354-000

Unavailable

6

LOCK ASSY., SEAT (HONDALOCK)

77230-107-711

Unavailable

6

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-347-003.

77230-107-711

Unavailable

7

BOX, TOOL *NH1* (BLACK) (NOT AVAILABLE)

83500-306-000B

Unavailable

8

CAP, TOOL BOX *NH1* (BLACK)

83541-286-000B

Unavailable

9

LABEL, HELMET HOLDER

87511-323-670

$2.72

10

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

10

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

10

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

11

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

11

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

12

BOLT, HEX. (8X65) This part replaces 92000-08065-0A.

92101-08065-0A

$2.25

12

BOLT, HEX. (8X65)

92101-08065-0A

$2.25

13

BOLT, HEX. (8X80) This part replaces 92000-08080-0A.

92180-08080-0A

$2.50

13

BOLT, HEX. (8X80)

92180-08080-0A

$2.50

14

BOLT, HEX. (10X106) This part replaces 92000-10106-0A.

92101-10106-0A

Unavailable

15

BOLT, HEX. (6X45)

92043-06045

Unavailable

16

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

16

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

NUT, HEX. (10MM)

94001-10000-0S

$1.49

20

WASHER, PLAIN (10MM)

94101-10000

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49

22

WASHER, SPRING (8MM)

94111-10000

$1.49

23

PIN, COTTER (2.0X35)

94201-20350

$1.49

24

WRENCH (8X12) (OPEN END)

99001-08120

$2.75

25

WRENCH (10X14) (OPEN END)

99001-10140

$2.92

26

WRENCH (17X19) (OPEN END)

99001-17190

$4.14

27

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

28

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

29

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

30

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

31

LEVER, TIRE

99003-40000

$1.49

32

GRIP

99003-50000

$3.27

33

WRENCH, BOX (P18)

99004-18001

$4.08

34

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

35

WRENCH, EYE (22MM)

99006-22000

$4.16

36

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

37

BAG, TOOL

89101-ME5-670

Unavailable

37

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
