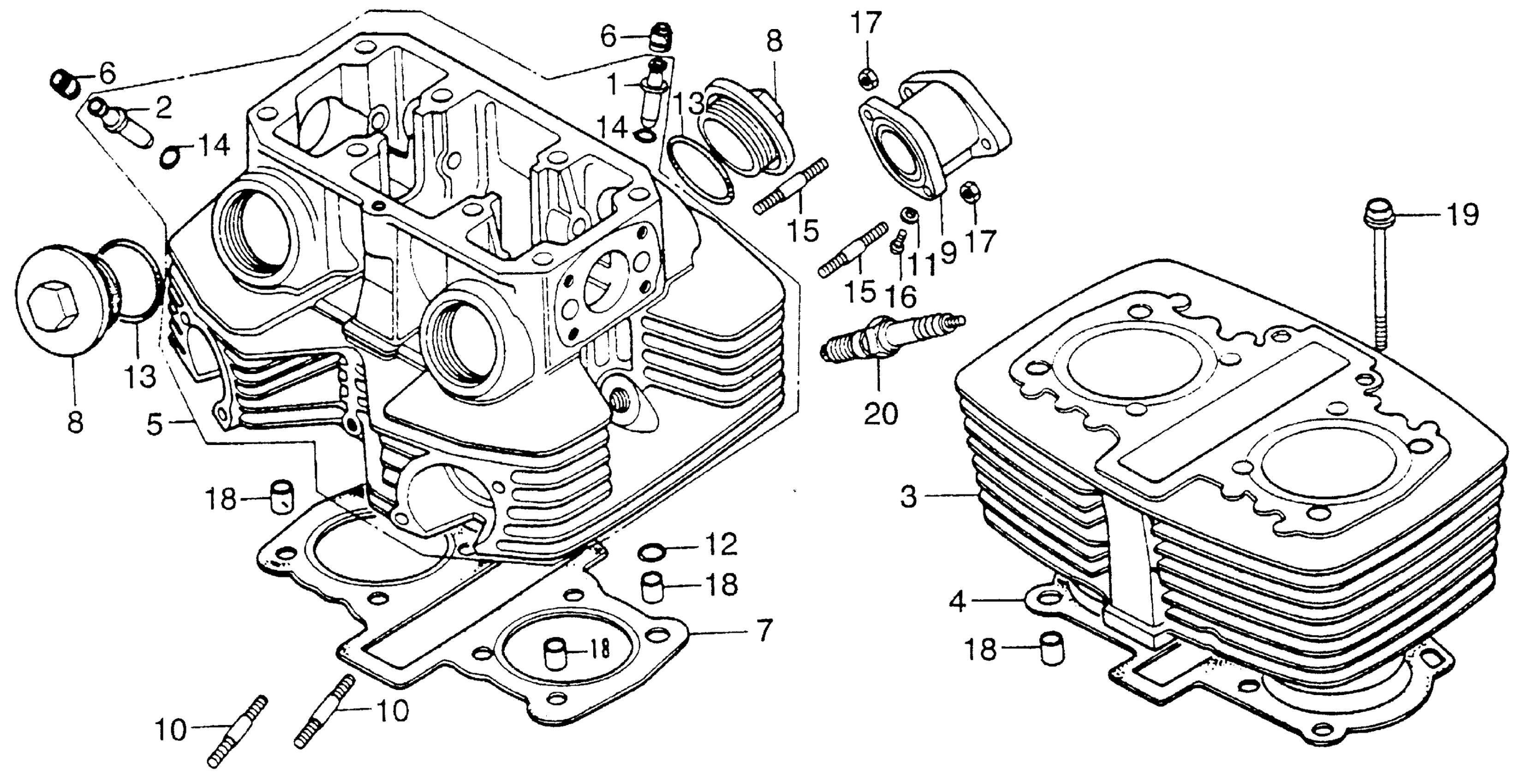

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-354-300.

12021-354-405

Unavailable

2

GUIDE, VALVE This part replaces 12023-354-300.

12021-354-405

Unavailable

3

CYLINDER (NOT AVAILABLE)

12100-354-000

Unavailable

4

GASKET, CYLINDER This part replaces 12191-354-000.

12191-354-306

Unavailable

4

GASKET, CYLINDER

12191-354-306

Unavailable

5

CYLINDER HEAD

12200-354-000

Unavailable

6

SEAL, VALVE STEM (NOT AVAILABLE)

12209-354-003

Unavailable

7

GASKET, CYL HD This part replaces 12251-354-000.

12251-354-405

Unavailable

8

CAP, VALVE ADJ.

12361-246-000

Unavailable

9

INSULATOR, CARBURETOR (NOT AVAILABLE)

16272-389-670

Unavailable

10

BOLT, STUD (6X50) This part replaces 90063-235-000.

92700-06050-0E

$1.54

10

BOLT, STUD (6X50)

92700-06050-0E

$1.54

11

WASHER, SEALING (5MM)

90452-323-000

$1.59

12

O-RING (10X1.6)

91301-200-000

$3.01

13

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-790.

91301-428-003

$2.21

13

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-791.

91301-428-003

$2.21

13

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

13

O-RING (35.5X3) (NOK) This part replaces 91302-216-000.

91301-428-003

$2.21

13

O-RING (35.5X3) (NOK) This part replaces 91302-500-000.

91301-428-003

$2.21

14

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

14

O-RING (9X1.6)

91305-028-900

$2.92

15

BOLT, STUD (6X28) This part replaces 92712-06028.

92712-06028-0B

$1.49

15

BOLT, STUD (6X28)

92712-06028-0B

$1.49

16

SCREW, PAN (5X6)

93500-05006-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

PIN A, DOWEL (10X14)

94301-10140

$2.28

19

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

19

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

20

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

$2.44

20

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

20

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

$2.44

20

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

$2.44

20

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

$2.44

20

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

$2.44
