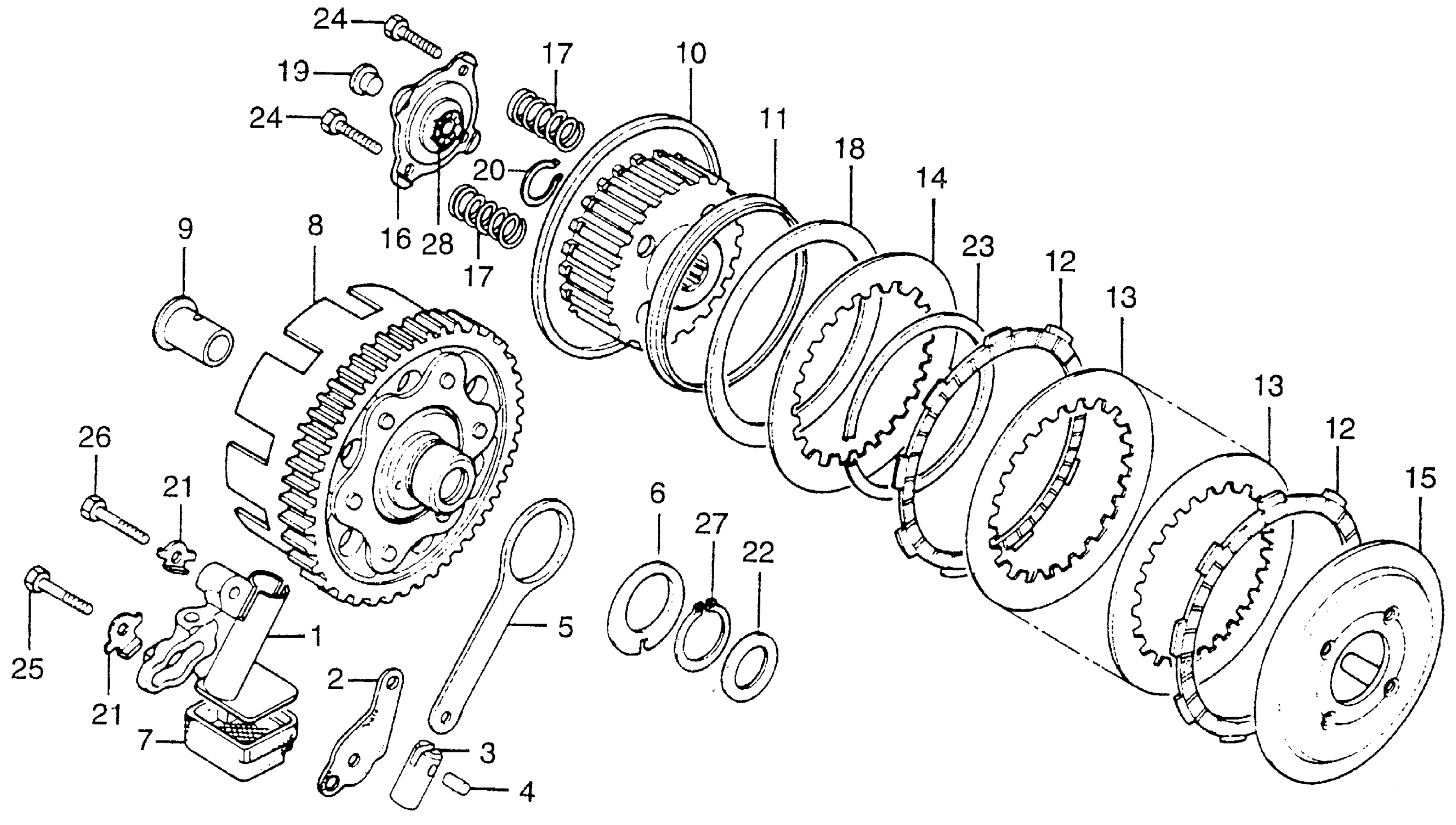

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 CLUTCH + OIL PUMP Diagram

#

Description
Price

1

PUMP, OIL

15210-354-010

Unavailable

2

GASKET PUMP, BODY (NOT AVAILABLE)

15219-302-000

Unavailable

3

PLUNGER, OIL PUMP (NOT AVAILABLE)

15231-354-000

Unavailable

4

PIN, OIL PUMP PLUNGER (NOT AVAILABLE)

15235-354-000

Unavailable

5

ROD, OIL PUMP

15281-354-000

Unavailable

6

WASHER, OIL PUMP ROD SIDE

15292-354-000

Unavailable

7

SCREEN, PUMP FILTER (NOT AVAILABLE) This part replaces 15334-354-010.

15334-302-000

Unavailable

8

CLUTCH (OUTER) (NOT AVAILABLE)

22100-354-000

Unavailable

9

COLLAR (20MM)

22116-354-000

Unavailable

10

CENTER, CLUTCH

22120-354-000

Unavailable

11

SEAT, DISK SPRING

22125-333-000

Unavailable

12

DISK B, CLUTCH FRICTION This part replaces 22201-302-000.

22202-ML4-611

$18.13

12

DISK B, CLUTCH FRICTION This part replaces 22202-ML4-610.

22202-ML4-611

$18.13

12

DISK B, CLUTCH FRICTION

22202-ML4-611

$18.13

13

PLATE A, CLUTCH This part replaces 22311-200-000.

23311-200-000

$12.22

13

PLATE A, CLUTCH

23311-200-000

$12.22

14

PLATE B, CLUTCH

22321-333-010

Unavailable

15

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-354-000

Unavailable

16

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-354-000

Unavailable

17

SPRING, CLUTCH

22401-362-000

Unavailable

18

SPRING, CLUTCH (NOT AVAILABLE)

22402-354-005

Unavailable

19

PIECE, CLUTCH LIFTER (NOT AVAILABLE)

22846-354-000

Unavailable

20

RING A SET (20MM) (NOT AVAILABLE)

22903-200-000

Unavailable

21

WASHER, SPRING (6MM) (NOT AVAILABLE)

90433-283-000

Unavailable

22

WASHER, THRUST (20MM)

90455-701-000

Unavailable

23

SET-RING, SPECIAL (92MM) (NOT AVAILABLE)

90609-333-000

Unavailable

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

25

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

25

BOLT, HEX. (6X28) This part replaces 92000-06028-0A.

92101-06028-0A

$1.49

25

BOLT, HEX. (6X28) This part replaces 92000-06028-05.

92101-06028-0A

$1.49

25

BOLT, HEX. (6X28) This part replaces 92100-06028.

92101-06028-0A

$1.49

25

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

26

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

26

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

26

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

27

CIRCLIP (OUTER) (35MM) (NOT AVAILABLE)

94510-35120

Unavailable

28

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$17.13

28

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
