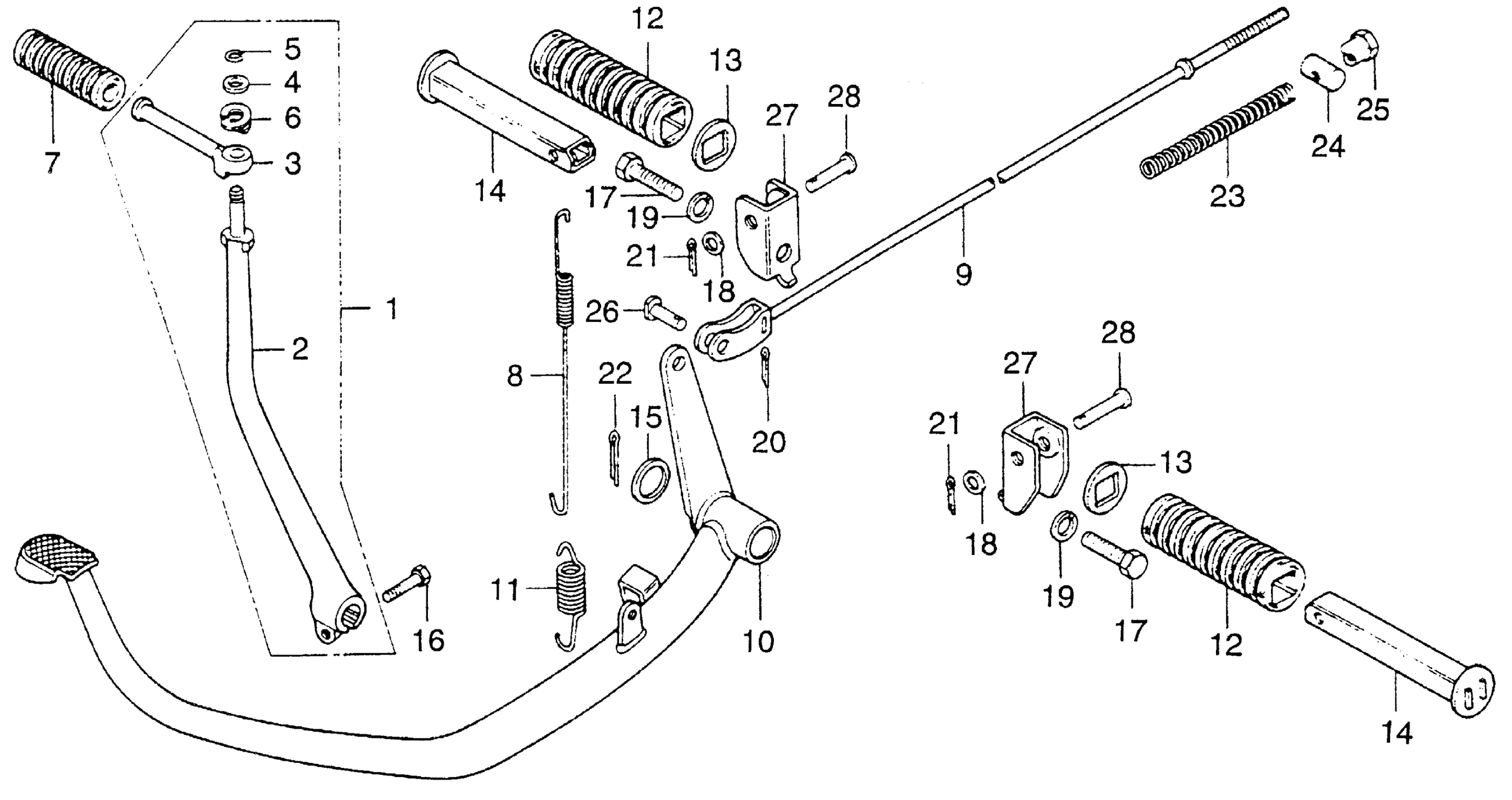

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 BRAKE PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-342-670

Unavailable

2

ARM, KICK STARTER

28301-342-000

Unavailable

3

PEDAL, KICK STARTER (NOT AVAILABLE)

28302-342-300

Unavailable

4

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

5

CLIP, KICK STARTER KNUCKLE This part replaces 28304-001-000.

28324-001-000

$2.92

5

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

6

SPRING, KICK STARTER KNUCKLE This part replaces 28305-001-000.

28322-001-000

$2.84

6

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

7

RUBBER, KICK STARTER

28311-342-000

$6.71

8

SPRING, STOP SWITCH

35357-KE5-000

Unavailable

8

SPRING, STOP SWITCH This part replaces 35357-303-010.

35357-KE5-000

Unavailable

9

ROD, RR. BRAKE (NOT AVAILABLE)

43451-354-000

Unavailable

10

PEDAL, BRAKE (NOT AVAILABLE)

46510-354-000

Unavailable

11

SPRING, BRAKE PEDAL

46541-354-000

Unavailable

12

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

12

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

13

WASHER, PILLION FOOTPEG

50712-377-000

Unavailable

14

BAR, PILLION FOOTPEG

50715-MA6-000

$19.16

14

BAR, PILLION FOOTPEG This part replaces 50715-377-000.

50715-MA6-000

$19.16

15

WASHER (17.5MM)

90512-303-000

$1.77

16

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

16

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

17

BOLT, HEX. (10X25) This part replaces 92000-10025-0A.

92101-10025-0A

$2.19

17

BOLT, HEX. (10X25)

92101-10025-0A

$2.19

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (8MM)

94111-10000

$1.49

20

PIN, COTTER (1.6X12)

94201-16120

$1.49

21

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

21

PIN, COTTER (1.6X25)

94201-16250

$1.49

22

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

22

PIN, COTTER (2.5MM)

94201-25300

$1.49

23

SPRING A, BRAKE ROD

95014-73100

$1.49

23

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

24

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

24

JOINT, BRAKE ARM

95015-32001

$1.49

25

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

26

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

27

BRACKET B, PILLION STEP (NOT AVAILABLE)

95015-72100

Unavailable

28

PIN B, PILLION FOOTPEG

95015-82000

$2.41
