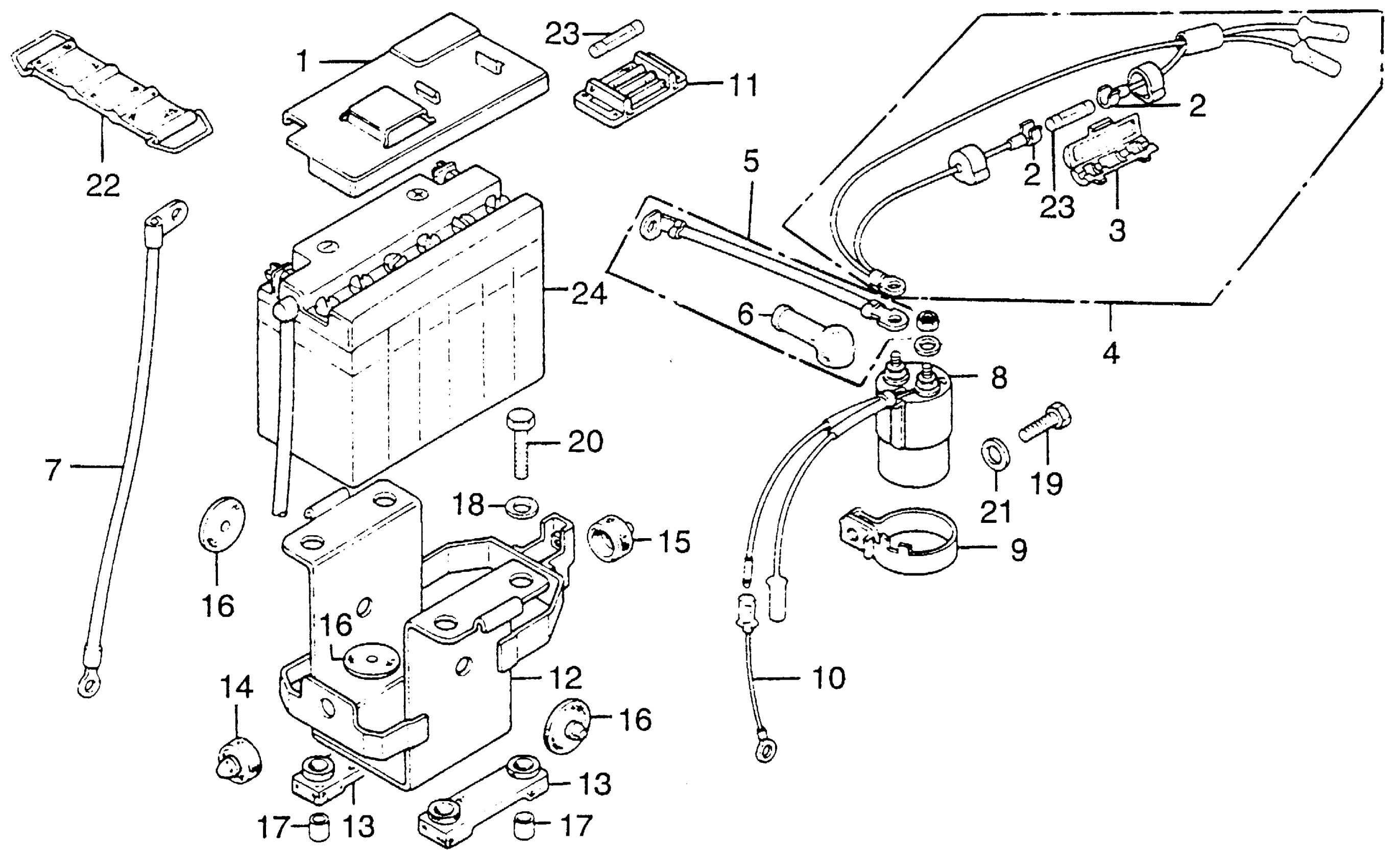

Honda CB200TA MOTORCYCLE, JPN, VIN# CB200T-2000001 BATTERY Diagram

#

Description
Price

1

COVER, BATTERY (NOT AVAILABLE)

31561-354-000

Unavailable

2

CONNECTOR, FUSE

32112-230-000

$3.64

3

CASE, FUSE (NOT AVAILABLE)

32120-323-000

Unavailable

4

SUB-WIRE HARNESS, MAGNETIC (NOT AVAILABLE)

32211-351-000

Unavailable

5

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-303-000.

32401-319-010

Unavailable

5

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-319-000.

32401-319-010

Unavailable

5

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-319-010

Unavailable

6

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

6

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

7

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-336-000

Unavailable

8

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-306-670.

35850-371-670

Unavailable

8

SWITCH ASSY., STARTER MAGNETIC

35850-371-670

Unavailable

9

STAY, STARTER SWITCH (NOT AVAILABLE)

35852-303-010

Unavailable

10

WIRE, HORN GROUND (NOT AVAILABLE)

38105-323-000

Unavailable

11

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

12

TRAY, BATTERY (NOT AVAILABLE)

83600-307-010

Unavailable

13

RUBBER, BATTERY (NOT AVAILABLE)

83611-354-000

Unavailable

14

RUBBER A, BATTERY DISTANCE (NOT AVAILABLE)

83616-307-000

Unavailable

15

RUBBER B, BATTERY DISTANCE (NOT AVAILABLE)

83617-307-000

Unavailable

16

RUBBER, BATTERY BOX

83618-323-000

$2.47

17

COLLAR, BATTERY TRAY SETTING (NOT AVAILABLE)

84706-307-000

Unavailable

18

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

BAND, BATTERY This part replaces 95012-15000.

95012-15001

$6.31

22

BAND, BATTERY

95012-15001

$6.31

23

FUSE A (15A)

98200-11500

$1.49

24

BATTERY ASSY. (12N9-4B-1) This part replaces 31500-222-000.

31500-235-677AH

Unavailable

24

BATTERY ASSY. (12N9-4B-1) This part replaces 31500-235-000.

31500-235-677AH

Unavailable

24

BATTERY ASSY. (12N9-4B-1) This part replaces 31500-235-677.

31500-235-677AH

Unavailable

24

BATTERY ASSY. (12N9-4B-1) This part replaces 31500-307-671.

31500-235-677AH

Unavailable

24

BATTERY ASSY. (12N9-4B-1) This part replaces 98203-21240.

31500-235-677AH

Unavailable
