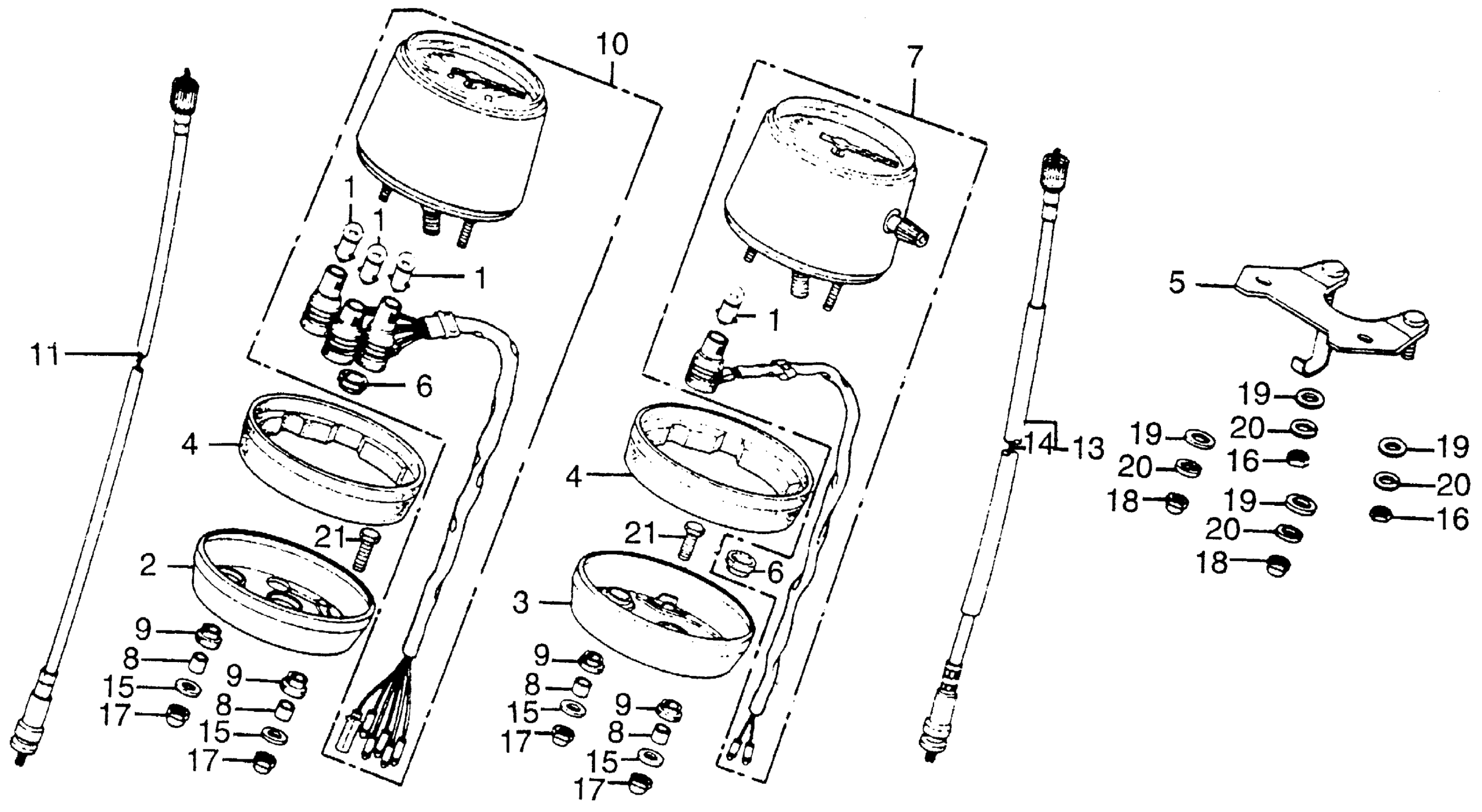

Honda CB200TA (76) MOTORCYCLE, JPN, VIN# CB200T-2100001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

RING, R. METER SETTING

37111-453-008

Unavailable

3

RING, L. METER SETTING

37112-453-008

Unavailable

4

RUBBER, METER (NOT AVAILABLE)

37113-453-008

Unavailable

5

BRACKET, METER (NOT AVAILABLE)

37114-354-000

Unavailable

6

GROMMET, WIRE (NOT AVAILABLE)

37115-453-000

Unavailable

7

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-389-671

Unavailable

8

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

9

RUBBER, METER SETTING

37244-307-670

$2.67

10

TACHOMETER ASSY.

37250-389-671

Unavailable

11

CABLE ASSY., TACHOMETER

37260-333-000

Unavailable

11

CABLE ASSY., TACHOMETER This part replaces 37260-389-770.

37260-333-000

Unavailable

13

CABLE ASSY., SPEEDOMETER

44830-389-770

Unavailable

15

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

NUT, CAP (6MM) This part replaces 94021-06220.

94021-06220-0S

$1.61

17

NUT, CAP (6MM)

94021-06220-0S

$1.61

18

NUT, CAP (8MM) (SOURCE: VINTAGE PARTS INC.)

94021-08220-0S

Unavailable

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

BOLT, HEX. (8X16) (NOT AVAILABLE) This part replaces 95100-08016.

95300-08016-00

Unavailable

21

BOLT, HEX. (8X16) (NOT AVAILABLE) This part replaces 95100-08016-00.

95300-08016-00

Unavailable
