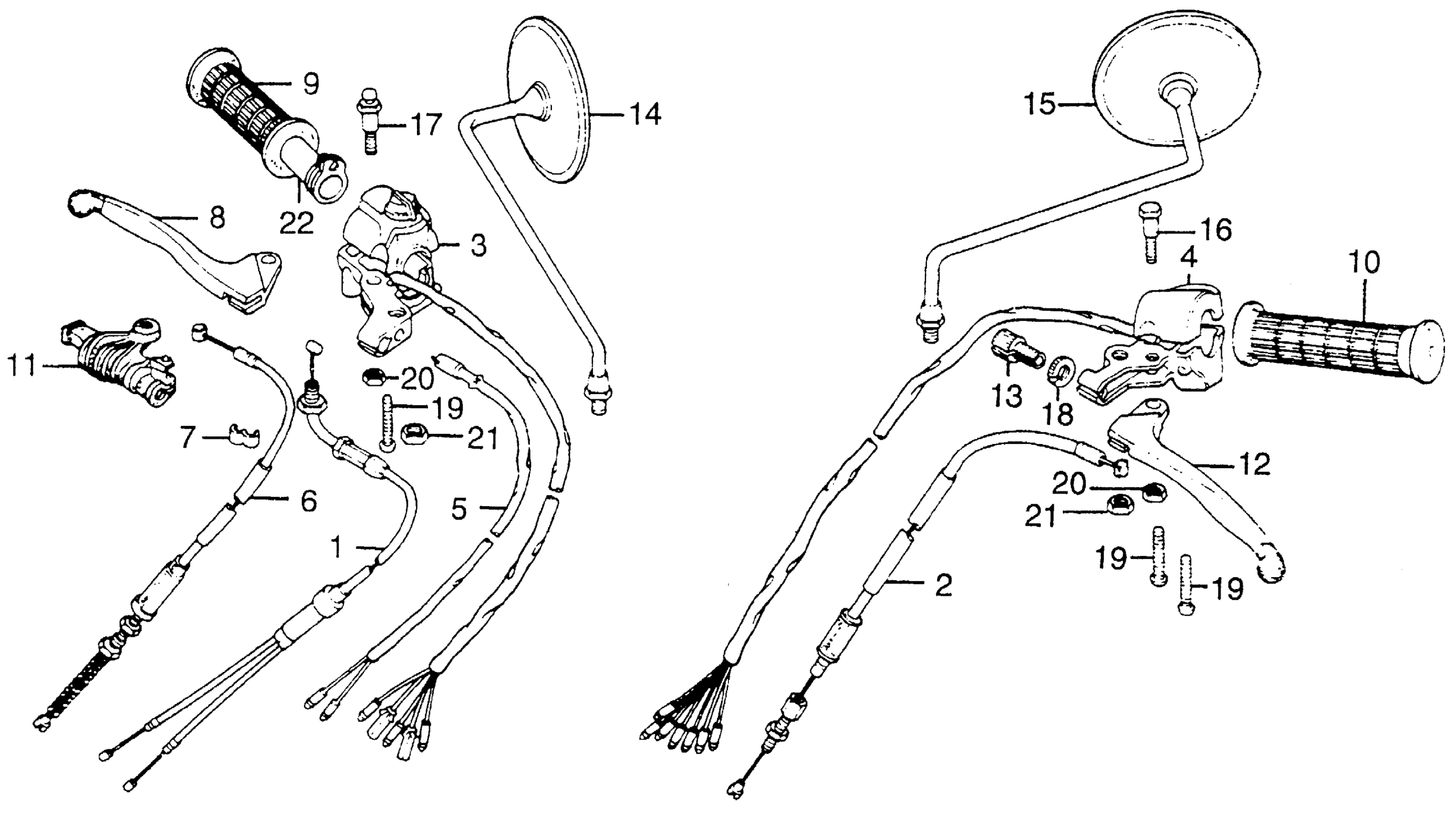

Honda CB200TA (76) MOTORCYCLE, JPN, VIN# CB200T-2100001 HANDLE SWITCH + LEVER Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-389-405

Unavailable

1

CABLE, THROTTLE This part replaces 17910-389-770.

17910-389-405

Unavailable

2

CABLE, CLUTCH This part replaces 22870-354-010.

22870-354-020

Unavailable

2

CABLE, CLUTCH

22870-354-020

Unavailable

2

CABLE, CLUTCH This part replaces 22870-389-770.

22870-354-020

Unavailable

3

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35150-389-671

Unavailable

4

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) This part replaces 35200-389-671.

35200-383-670

Unavailable

5

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$17.46

5

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$17.46

5

SWITCH ASSY., FR. STOP This part replaces 35340-329-000.

35340-329-003

$17.46

5

SWITCH ASSY., FR. STOP

35340-329-003

$17.46

5

SWITCH ASSY., FR. STOP This part replaces 35340-329-010.

35340-329-003

$17.46

6

CABLE, FR. BRAKE This part replaces 45450-354-700.

45450-383-671

Unavailable

6

CABLE, FR. BRAKE

45450-383-671

Unavailable

6

CABLE, FR. BRAKE This part replaces 45450-389-770.

45450-383-671

Unavailable

7

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-370-000

Unavailable

8

LEVER, R. HANDLEBAR This part replaces 53150-354-702.

53175-121-740

Unavailable

8

LEVER, R. HANDLEBAR

53175-121-740

Unavailable

8

LEVER, R. HANDLEBAR This part replaces 53175-141-850.

53175-121-740

Unavailable

8

LEVER, R. HANDLEBAR This part replaces 53175-354-702.

53175-121-740

Unavailable

9

GRIP, R. HANDLEBAR

53165-342-670

$15.64

10

GRIP, L. HANDLEBAR

53166-342-670

$13.49

11

COVER, R. HANDLEBAR LEVER (NOT AVAILABLE)

53171-351-000

Unavailable

12

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

12

LEVER, L. HANDLE

53178-369-700

$28.35

12

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

12

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

12

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

13

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

14

MIRROR, R. This part replaces 88100-333-004.

88110-333-611

$37.14

14

MIRROR, R.

88110-333-611

$37.14

15

MIRROR, L. This part replaces 88120-333-004.

88120-333-611

Unavailable

15

MIRROR, L. This part replaces 88120-333-610.

88120-333-611

Unavailable

15

MIRROR, L.

88120-333-611

Unavailable

16

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

17

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

18

NUT, FIXING

90321-315-670

$7.31

18

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

19

SCREW, PAN (5X25)

93500-05025-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

PIPE A, THROTTLE GRIP

95014-51100

$17.62
