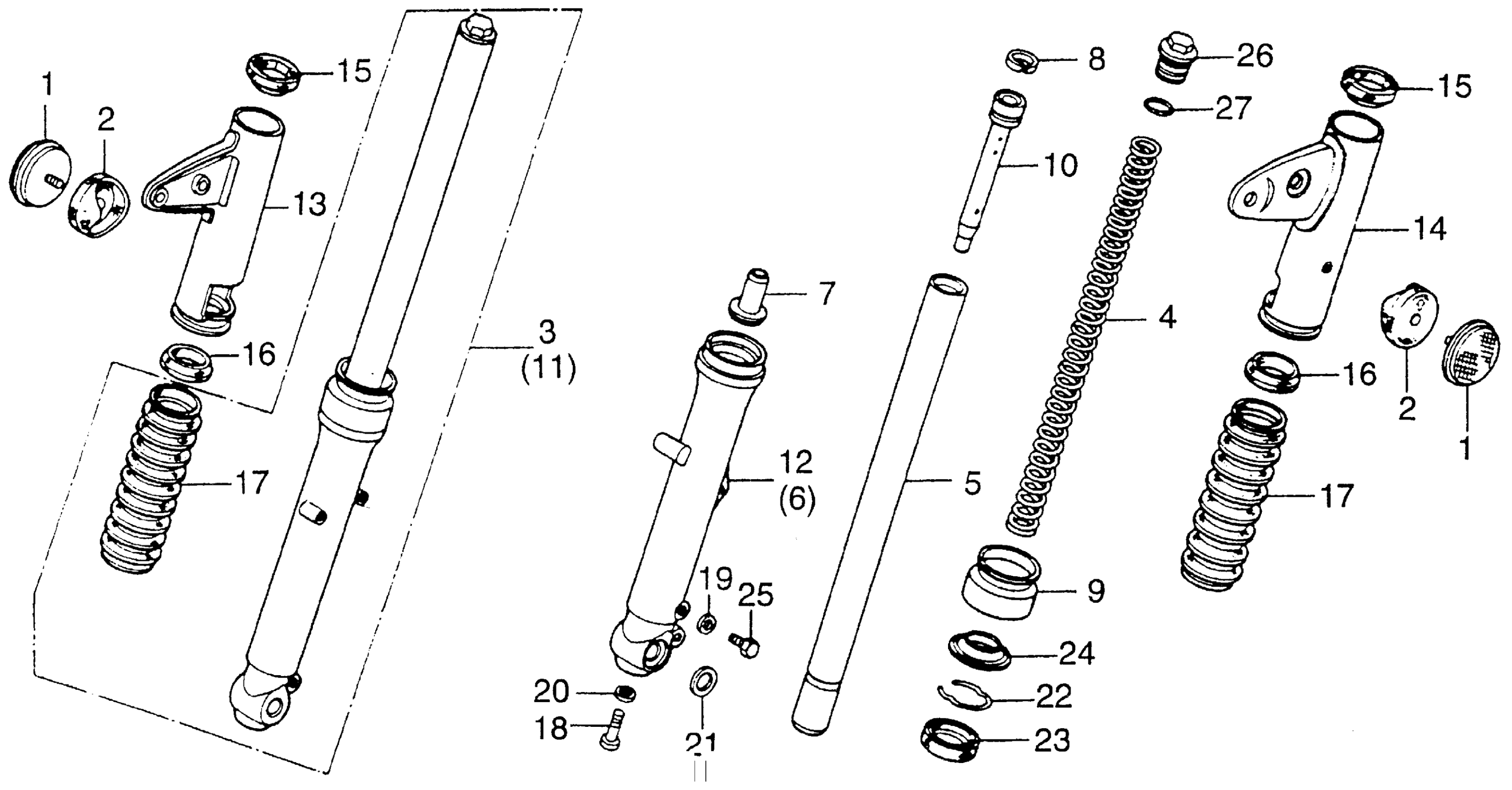

Honda CB200TA (76) MOTORCYCLE, JPN, VIN# CB200T-2100001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33743-342-670

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) This part replaces 51400-453-010.

51400-453-020

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-453-020

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51410-453-010

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51420-453-010

Unavailable

6

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51431-453-010

Unavailable

7

PIECE, OIL LOCKING

51432-453-000

Unavailable

8

RING, PISTON (NOT AVAILABLE)

51437-331-770

Unavailable

9

COVER, CASE (LOWER) (NOT AVAILABLE)

51452-453-000

Unavailable

10

PIPE, SEAT (NOT AVAILABLE)

51470-453-010

Unavailable

11

FORK ASSY., L. FR. This part replaces 51500-453-010.

51500-453-020

Unavailable

11

FORK ASSY., L. FR.

51500-453-020

Unavailable

12

CASE, L. FR. FORK (LOWER)

51531-354-013

Unavailable

13

COVER, R. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

51610-453-000XW

Unavailable

14

COVER, L. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

51620-453-000XW

Unavailable

15

RUBBER A, FORK COVER (NOT AVAILABLE)

51641-453-000

Unavailable

16

RUBBER B, FORK COVER (NOT AVAILABLE)

51644-453-000

Unavailable

17

BOOT, FR. FORK (NOT AVAILABLE)

51651-453-000

Unavailable

18

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

18

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

19

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

20

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

21

WASHER (15.2X25)

90557-230-000

$2.39

22

RING, OIL SEAL STOP

90601-354-000

$5.13

23

OIL SEAL (31X45X10) (NOT AVAILABLE)

91254-453-010

Unavailable

24

OIL SEAL (31X43X10)

91255-GAA-003

$20.00

24

OIL SEAL (31X43X10) This part replaces 91255-110-003.

91255-GAA-003

$20.00

24

OIL SEAL (31X43X10) This part replaces 91255-110-005.

91255-GAA-003

$20.00

25

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

26

BOLT D1, FORK

94605-27101

$8.00

27

O-RING (23X2.4)

94608-30000

$1.49
