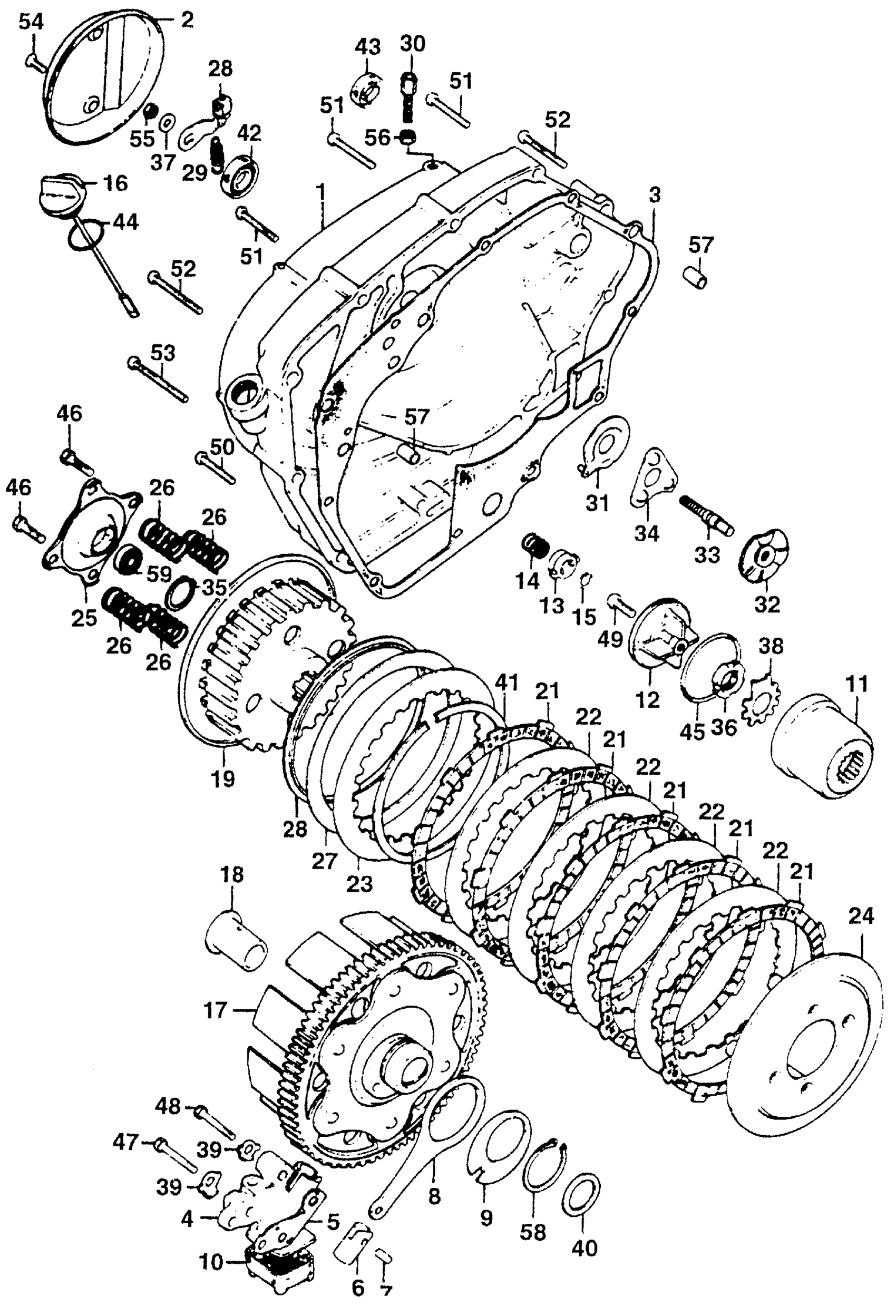

Honda CB200A MOTORCYCLE, JPN, VIN# CB200-1000001 RIGHT CRANKCASE COVER + CLUTCH Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-354-010

Unavailable

COVER, CLUTCH ADJUST

11348-354-000

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-302-010.

11394-302-306

Unavailable

GASKET, R. CRANKCASE COVER

11394-302-306

Unavailable

PUMP, OIL

15210-354-010

Unavailable

GASKET PUMP, BODY (NOT AVAILABLE)

15219-302-000

Unavailable

PLUNGER, OIL PUMP (NOT AVAILABLE)

15231-354-000

Unavailable

PIN, OIL PUMP PLUNGER (NOT AVAILABLE)

15235-354-000

Unavailable

ROD, OIL PUMP

15281-354-000

Unavailable

WASHER, OIL PUMP ROD SIDE

15292-354-000

Unavailable

SCREEN, PUMP FILTER (NOT AVAILABLE) This part replaces 15334-354-010.

15334-302-000

Unavailable

ROTOR, OIL FILTER (NOT AVAILABLE)

15441-354-000

Unavailable

CAP, OIL FILTER (NOT AVAILABLE)

15450-216-000

Unavailable

METAL, OIL GUIDE (NOT AVAILABLE)

15594-286-000

Unavailable

SPRING, OIL GUIDE METAL (NOT AVAILABLE)

15595-286-000

Unavailable

RING, OIL GUIDE METAL STOPPER (NOT AVAILABLE)

15597-286-000

Unavailable

DIPSTICK, OIL

15650-354-000

Unavailable

CLUTCH (OUTER) (NOT AVAILABLE)

22100-354-000

Unavailable

COLLAR (20MM)

22116-354-000

Unavailable

CENTER, CLUTCH

22120-354-000

Unavailable

SEAT, DISK SPRING

22125-333-000

Unavailable

DISK B, CLUTCH FRICTION This part replaces 22201-302-000.

22202-ML4-611

$18.13

DISK B, CLUTCH FRICTION This part replaces 22202-ML4-610.

22202-ML4-611

$18.13

DISK B, CLUTCH FRICTION

22202-ML4-611

$18.13

PLATE A, CLUTCH This part replaces 22311-200-000.

23311-200-000

$12.22

PLATE A, CLUTCH

23311-200-000

$12.22

PLATE B, CLUTCH

22321-333-010

Unavailable

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-354-000

Unavailable

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-354-000

Unavailable

SPRING, CLUTCH

22401-362-000

Unavailable

SPRING, CLUTCH (NOT AVAILABLE)

22402-354-005

Unavailable

LEVER, CLUTCH (NOT AVAILABLE)

22810-354-000

Unavailable

SPRING, CLUTCH LEVER

22815-300-000

Unavailable

BOLT, ADJUST (A10X44)

22818-354-000

Unavailable

PLATE A, CLUTCH CAM (NOT AVAILABLE)

22820-354-000

Unavailable

LIFTER, CLUTCH (NOT AVAILABLE)

22830-354-000

Unavailable

SCREW, CLUTCH LIFTER ADJUSTING (NOT AVAILABLE)

22837-354-000

Unavailable

RETAINER, CLUTCH BALL

22860-046-000

$7.04

RING A SET (20MM) (NOT AVAILABLE)

22903-200-000

Unavailable

NUT, LOCK (16MM) This part replaces 90231-028-000.

90231-KCS-651

$4.21

NUT, LOCK (16MM) This part replaces 90231-200-000.

90231-KCS-651

$4.21

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

WASHER, SPRING (16MM)

90431-292-000

$2.92

WASHER, SPRING (6MM) (NOT AVAILABLE)

90433-283-000

Unavailable

WASHER, THRUST (20MM)

90455-701-000

Unavailable

SET-RING, SPECIAL (92MM) (NOT AVAILABLE)

90609-333-000

Unavailable

OIL SEAL (12X28X5) (NOT AVAILABLE)

91201-011-000

Unavailable

OIL SEAL (14X24X5)

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$5.04

O-RING (27.5X2.6) This part replaces 91302-001-000.

91302-001-710

$2.99

O-RING (27.5X2.6)

91302-001-710

$2.99

O-RING (46X2) This part replaces 91305-216-000.

91305-426-003

$7.19

O-RING (46X2)

91305-426-003

$7.19

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28) This part replaces 92000-06028-0A.

92101-06028-0A

$1.49

BOLT, HEX. (6X28) This part replaces 92000-06028-05.

92101-06028-0A

$1.49

BOLT, HEX. (6X28) This part replaces 92100-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

SCREW, PAN (6X20)

93500-06020-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

SCREW, PAN (6X45)

93500-06045-0A

$1.49

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

SCREW, PAN (6X50)

93500-06050-0A

$1.49

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

SCREW, PAN (6X55)

93500-06055-0A

$1.49

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

SCREW, OVAL (6X16)

93700-06016-0A

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

NUT, HEX. (10MM)

94030-10000

$1.49

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28

CIRCLIP (OUTER) (35MM) (NOT AVAILABLE)

94510-35120

Unavailable

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$17.13

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
