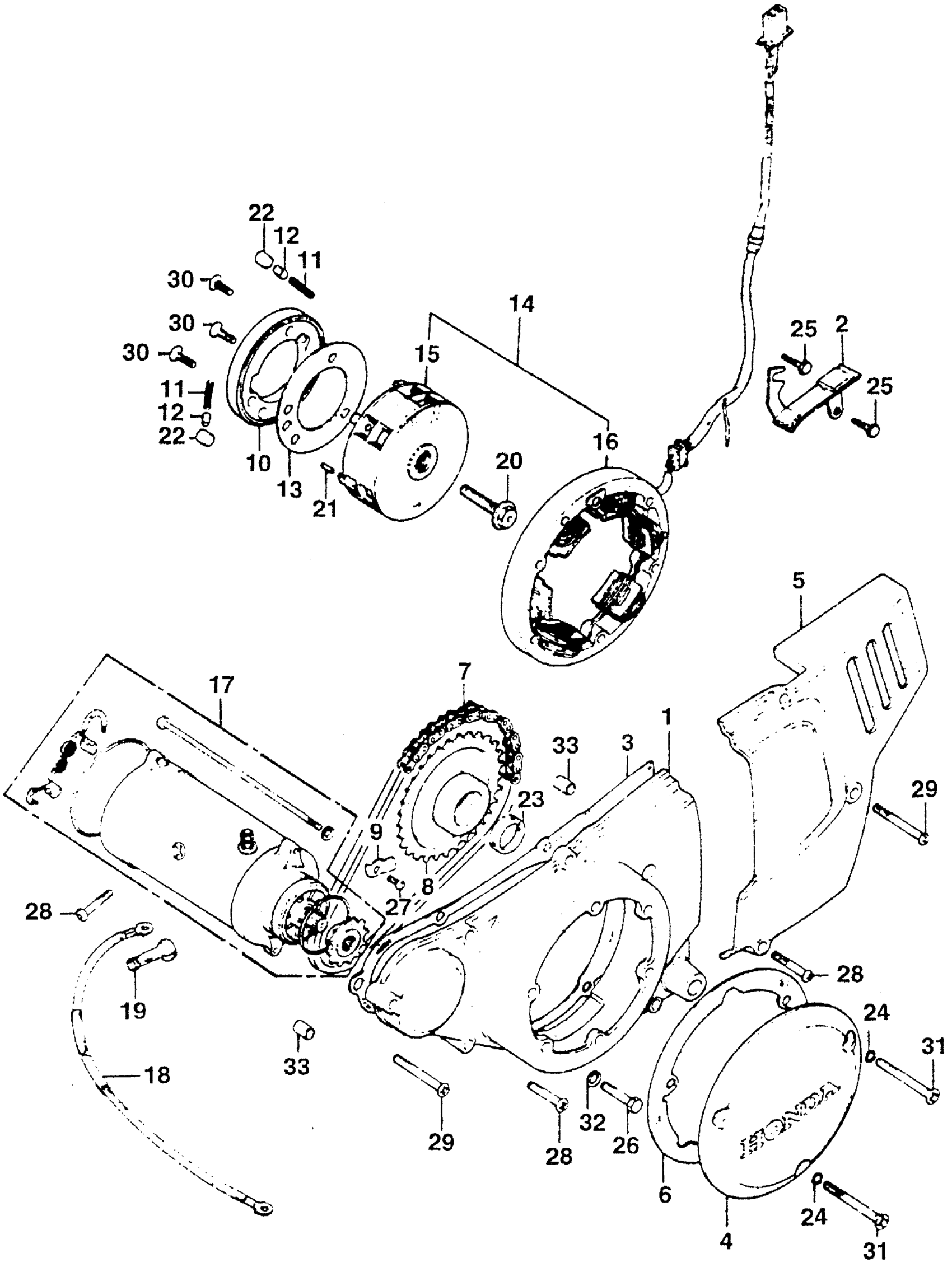

Honda CB200A MOTORCYCLE, JPN, VIN# CB200-1000001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11340-354-000

Unavailable

2

PROTECTOR, CASE (NOT AVAILABLE)

11353-354-000

Unavailable

3

GASKET, L. This part replaces 11395-302-010.

11395-302-307

Unavailable

4

COVER, ALTERNATOR (NOT AVAILABLE)

11431-354-000

Unavailable

5

COVER, DRIVE CHAIN (NOT AVAILABLE)

11661-354-000

Unavailable

6

GASKET, DYNAMO COVER This part replaces 11691-354-000.

11691-354-306

Unavailable

7

CHAIN, STARTER (DID219-54L) (DAIDO) This part replaces 28101-286-003.

28101-402-003

Unavailable

7

CHAIN, STARTER (DID219-54L) (DAIDO)

28101-402-003

Unavailable

8

SPROCKET, STARTER (NOT AVAILABLE)

28110-216-000

Unavailable

9

PLATE, DRIVE SPROCKET SETTING (NOT AVAILABLE)

28117-302-010

Unavailable

10

CLUTCH, STARTER (OUTER)

28120-201-040

$87.06

11

SPRING, STARTER CLUTCH ROLLER

28125-253-020

$5.57

12

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.53

13

PLATE, STARTER CLUTCH SIDE

28128-253-030

$6.08

14

ALTERNATOR ASSY. (HITACHI)

31100-354-005

Unavailable

15

ROTOR (HITACHI)

31101-354-005

Unavailable

16

STATOR (HITACHI) (NOT AVAILABLE)

31102-354-005

Unavailable

17

MOTOR, STARTER (12V) This part replaces 31200-306-158.

31200-306-405

Unavailable

18

CABLE, STARTER MOTOR (NOT AVAILABLE)

32402-304-000

Unavailable

19

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

20

BOLT, ROTOR SETTING (NOT AVAILABLE)

90014-286-000

Unavailable

21

PIN, KNOCK (6X17.5)

90701-250-000

$2.70

21

PIN, KNOCK (6X17.5) (NOT AVAILABLE)

90704-259-000

Unavailable

22

ROLLER (10.2X9.5)

91101-253-020

$3.98

23

OIL SEAL (20X26X4)

91205-216-003

Unavailable

24

O-RING (5.5X1.5)

91301-216-000

$2.38

25

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

25

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

26

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

26

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

27

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

28

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

29

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

29

SCREW, PAN (6X45)

93500-06045-0A

$1.49

30

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

30

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

31

SCREW, OVAL (6X40) This part replaces 93700-06040.

93700-06040-0A

$1.49

31

SCREW, OVAL (6X40)

93700-06040-0A

$1.49

31

SCREW, OVAL (6X40) This part replaces 93715-06040.

93700-06040-0A

$1.49

32

WASHER, SPRING (6MM)

94111-06000

$1.49

33

PIN A, DOWEL (10X14)

94301-10140

$2.28
