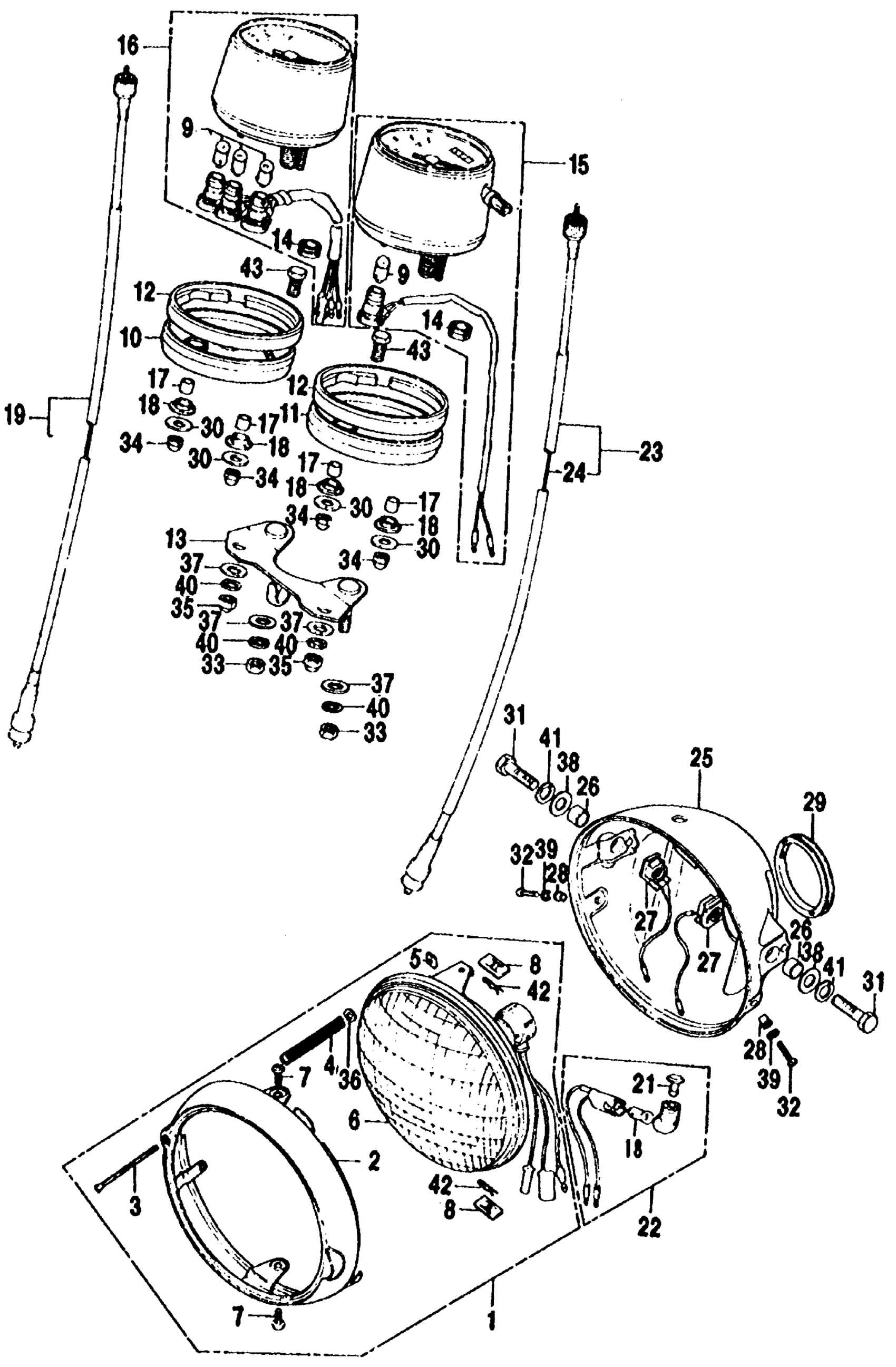

Honda CB200A MOTORCYCLE, JPN, VIN# CB200-1000001 HEADLIGHT + SPEEDOMETER + TACHOMETER Diagram

HEADLIGHT ASSY. (12V 35/25W) (NOT AVAILABLE)

33100-292-674

Unavailable

RIM, HEADLIGHT (NOT AVAILABLE)

33101-292-672

Unavailable

SCREW, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33103-292-670

Unavailable

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE)

33107-283-000

Unavailable

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

NUT, HEADLIGHT BEAM ADJ. This part replaces 33117-292-003.

33117-001-023

$2.39

HEADLIGHT UNIT (12V 35/25W)

33120-292-673

Unavailable

SCREW, UNIT HOLDER

33125-292-670

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

RING, R. METER SETTING

37111-453-008

Unavailable

RING, L. METER SETTING

37112-453-008

Unavailable

RUBBER, METER (NOT AVAILABLE)

37113-453-008

Unavailable

BRACKET, METER (NOT AVAILABLE)

37114-354-000

Unavailable

GROMMET, WIRE (NOT AVAILABLE)

37115-453-000

Unavailable

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-453-671

Unavailable

TACHOMETER ASSY. (NOT AVAILABLE)

37240-354-008

Unavailable

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

RUBBER, METER SETTING

37244-307-670

$2.67

CABLE ASSY., TACHOMETER

37260-MA1-730

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-MC8-000.

37260-MA1-730

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-286-000.

37260-MA1-730

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-425-840.

37260-MA1-730

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-461-000.

37260-MA1-730

Unavailable

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE) This part replaces 37551-329-005.

37551-329-015

Unavailable

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE)

37551-329-015

Unavailable

LAMP ASSY., HIGH BEAM PILOT (IMASEN) (NOT AVAILABLE)

37620-456-005

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-307-000.

44830-389-770

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-351-000.

44830-389-770

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-362-000.

44830-389-770

Unavailable

CABLE ASSY., SPEEDOMETER

44830-389-770

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44831-307-000.

44830-389-770

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-307-000.

44830-389-770

Unavailable

CABLE ASSY., SPEEDOMETER

44830-389-770

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44831-307-000.

44830-389-770

Unavailable

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE) This part replaces 61301-333-003B.

61301-333-013B

Unavailable

COLLAR, HEADLIGHT CASE

61302-292-000

Unavailable

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61306-333-003

Unavailable

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10032-0B.

92101-10032-0B

Unavailable

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.)

92101-10032-0B

Unavailable

SCREW, PAN (5X16)

93500-05016-0B

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, CAP (6MM) This part replaces 94021-06220.

94021-06220-0S

$1.61

NUT, CAP (6MM)

94021-06220-0S

$1.61

NUT, CAP (8MM) (SOURCE: VINTAGE PARTS INC.)

94021-08220-0S

Unavailable

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, LOCK (5MM)

94251-05000

$1.49

BOLT, HEX. (8X16) (NOT AVAILABLE) This part replaces 95100-08016.

95300-08016-00

Unavailable

BOLT, HEX. (8X16) (NOT AVAILABLE) This part replaces 95100-08016-00.

95300-08016-00

Unavailable
