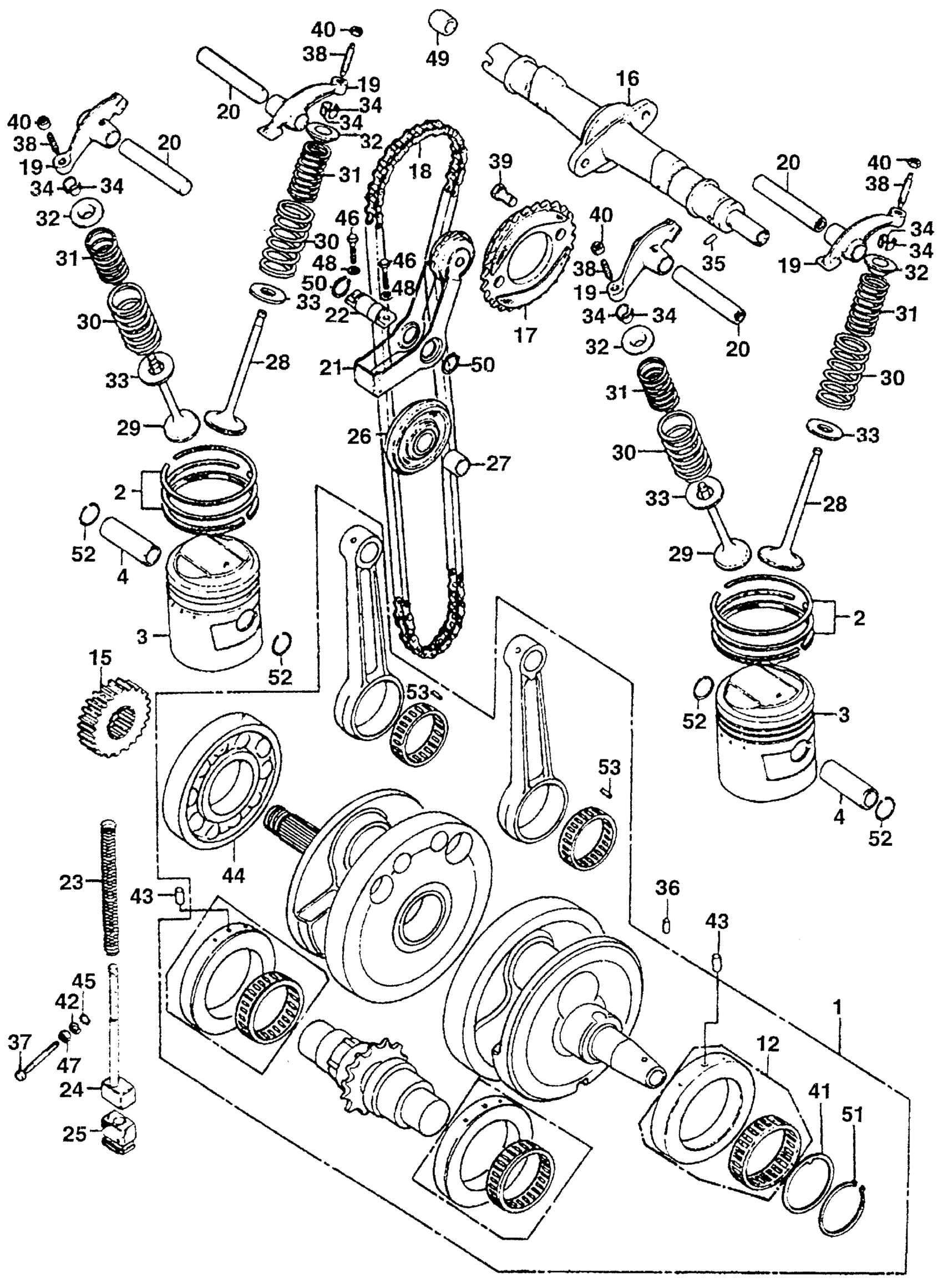

Honda CB200A MOTORCYCLE, JPN, VIN# CB200-1000001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-354-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) This part replaces 13011-354-003.

13011-354-305

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE)

13011-354-305

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). This part replaces 13012-354-003.

13012-354-305

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13012-354-305

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) | (Optional). This part replaces 13013-354-003.

13013-354-305

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13013-354-305

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13014-354-003.

13014-354-305

Unavailable

2

RING SET, PISTON (0.75) | (Optional).

13014-354-305

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13015-354-003.

13015-354-305

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional).

13015-354-305

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-354-000

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-354-000

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-354-000

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-354-000

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-354-000

Unavailable

4

PIN, PISTON

13111-286-000

$26.03

4

PIN, PISTON

13111-440-000

$24.55

12

BEARING ASSY. A, L. CRANKSHAFT (35MM +0.012/+0.018) (NOT AVAILABLE)

13425-216-004

Unavailable

12

BEARING ASSY. B, L. CRANKSHAFT (35MM +0.010/+0.016)

13426-216-004

Unavailable

12

BEARING ASSY. C, L. CRANKSHAFT (35MM +0.008/+0.014) (NOT AVAILABLE)

13427-216-004

Unavailable

12

BEARING ASSY. D, L. CRANKSHAFT (35MM +0.006/+0.012)

13428-216-004

Unavailable

12

BEARING ASSY. E, L. CRANKSHAFT (35MM +0.004/+0.010) (NOT AVAILABLE)

13429-216-004

Unavailable

15

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

13611-354-000

Unavailable

16

CAMSHAFT (NOT AVAILABLE)

14101-354-000

Unavailable

17

SPROCKET, CAM (32T)

14321-354-000

$46.49

18

CHAIN, CAM (DID219T-86L)

14410-354-003

Unavailable

19

ARM, VALVE ROCKER

14431-216-010

Unavailable

20

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-354-000

Unavailable

21

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-354-000

Unavailable

22

PIN, CAM CHAIN GUIDE ROLLER (NOT AVAILABLE)

14503-354-000

$20.92

23

SPRING, CAM CHAIN TENSIONER

14541-235-000

Unavailable

24

BAR, TENSIONER (NOT AVAILABLE)

14550-216-020

Unavailable

25

RUBBER, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14556-216-020

Unavailable

26

ROLLER, CAM CHAIN GUIDE This part replaces 14601-286-010.

14601-312-000

$35.03

26

ROLLER, CAM CHAIN GUIDE

14601-312-000

$35.03

27

COLLAR, CAM CHAIN ROLLER (NOT AVAILABLE)

14606-286-000

Unavailable

28

VALVE, IN. (NOT AVAILABLE)

14711-235-010

Unavailable

29

VALVE, EX.

14721-302-010

Unavailable

30

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-354-005

Unavailable

31

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-354-005

Unavailable

32

RETAINER, VALVE SPRING

14771-030-000

Unavailable

33

SEAT, VALVE SPRING

14775-028-010

$4.07

34

COTTER, VALVE

14781-235-000

$2.84

35

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

36

PIN, FLYWHEEL KNOCK (NOT AVAILABLE)

30906-230-000

Unavailable

37

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90009-315-000

Unavailable

38

SCREW, TAPPET ADJ.

90012-333-000

$2.75

39

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

39

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

40

NUT, TAPPET ADJ.

90206-KM3-000

$1.49

40

NUT, TAPPET ADJUSTING This part replaces 90206-246-000.

90206-KM3-000

$1.49

41

WASHER (35MM) (NOT AVAILABLE)

90452-216-000

Unavailable

42

WASHER (5MM)

90482-028-000

$2.09

43

PIN, KNOCK (6X10) (NOT AVAILABLE)

90701-202-000

Unavailable

44

BEARING, RADIAL (NOT AVAILABLE)

91001-216-000

Unavailable

45

O-RING (4.2X2.0) (NOT AVAILABLE)

91302-315-000

Unavailable

46

BOLT, HEX. (5X18) This part replaces 92000-05018-0A.

92101-05018-0A

$1.49

46

BOLT, HEX. (5X18)

92101-05018-0A

$1.49

47

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM)

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

48

WASHER, SPRING (5MM)

94111-05000

$1.49

49

PIN, KNOCK (12X16)

94301-12160

$2.27

50

CIRCLIP (OUTER) (13MM)

94510-13000

$1.49

51

CIRCLIP (OUTER) (35MM) (NOT AVAILABLE)

94510-35120

Unavailable

52

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

53

ROLLER (3X10) (NOT AVAILABLE)

96220-30100

Unavailable
