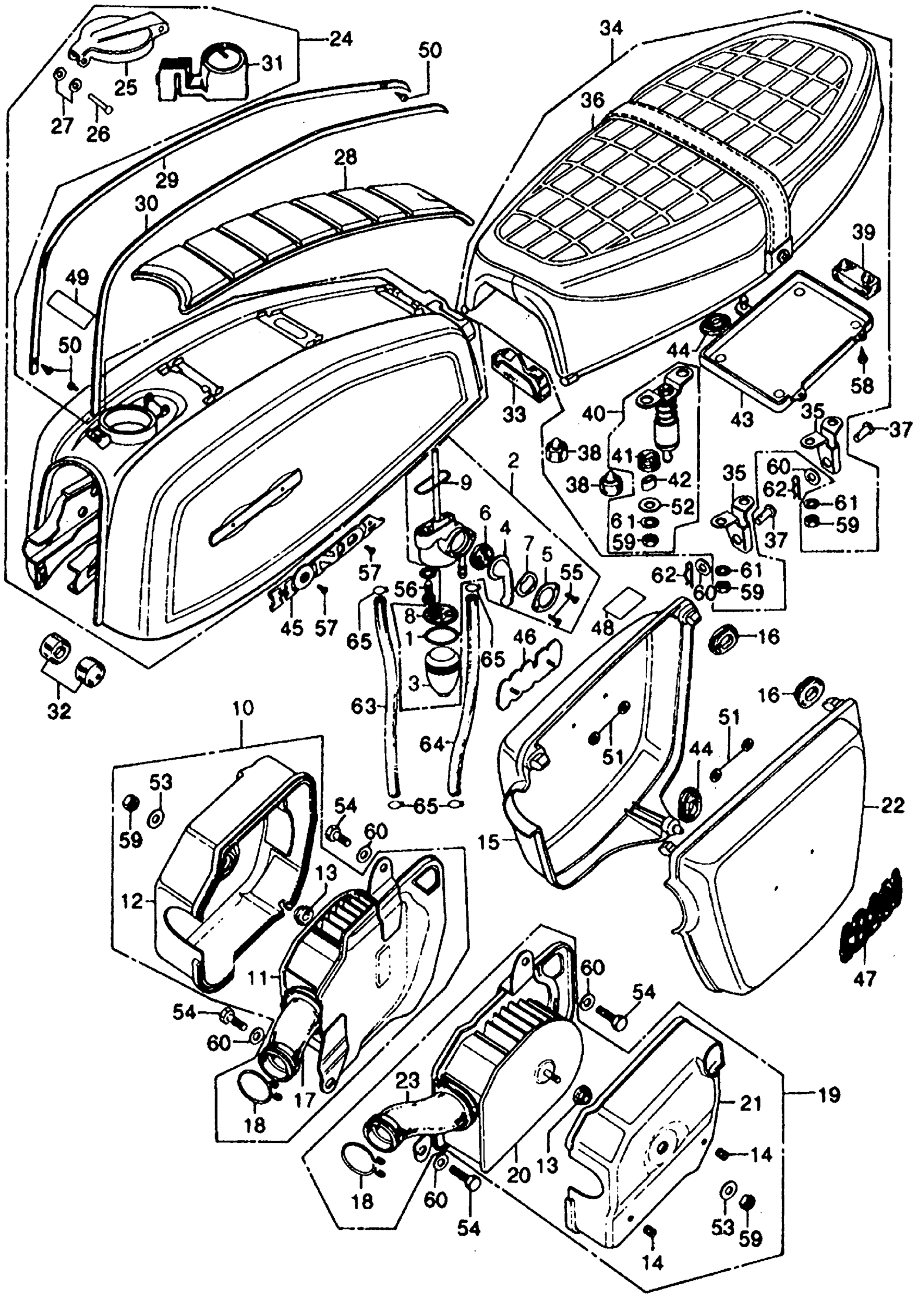

Honda CB200A MOTORCYCLE, JPN, VIN# CB200-1000001 CB FUEL TANK + SEAT + AIR CLEANER Diagram

#

Description
Price

1

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

2

PETCOCK ASSY.

16950-336-005

$63.92

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

4

LEVER, PETCOCK

16953-028-004

Unavailable

5

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

6

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

6

GASKET, VALVE

16957-ZE1-812

$3.08

7

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

7

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

7

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

7

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

8

SCREEN, FUEL STRAINER

16957-028-000

$16.22

9

O-RING (23.8X2.4)

16997-273-000

$4.53

10

AIR CLEANER ASSY., R. (NOT AVAILABLE)

17200-354-005

Unavailable

11

ELEMENT, R. AIR CLEANER (NOT AVAILABLE)

17210-351-005

Unavailable

12

CASE, L. AIR CLEANER (NOT AVAILABLE)

17214-351-000

Unavailable

13

RUBBER, AIR CLEANER HOUSING (NOT AVAILABLE)

17215-336-000

Unavailable

14

STOPPER, ELEMENT CASE (NOT AVAILABLE)

17216-316-000

Unavailable

15

COVER, R. AIR CLEANER *R23* (TAHITIAN RED)

17231-354-000EC

Unavailable

15

COVER, R. AIR CLEANER *G38MS* (MUSCAT GREEN METALLIC) (NOT AVAILABLE)

17231-354-000QF

Unavailable

16

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

17

TUBE, R. AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-354-000

Unavailable

18

CLIP, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)

17255-315-670

Unavailable

19

AIR CLEANER ASSY., L. (NOT AVAILABLE)

17300-354-005

Unavailable

20

ELEMENT, L. AIR CLEANER (NOT AVAILABLE)

17310-351-005

Unavailable

21

CASE, L. AIR CLEANER (NOT AVAILABLE)

17314-351-000

Unavailable

22

COVER, L. AIR CLEANER *R23* (TAHITIAN RED) (NOT AVAILABLE)

17331-354-000EC

Unavailable

22

COVER, L. AIR CLEANER *G38MS* (MUSCAT GREEN METALLIC) (NOT AVAILABLE)

17331-354-000QF

Unavailable

23

TUBE, L. AIR CLEANER CONNECTING (NOT AVAILABLE)

17353-354-000

Unavailable

24

TANK ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17050-354-690EC

Unavailable

24

TANK ASSY., FUEL *G38MS* (MUSCAT GREEN METALLIC) (NOT AVAILABLE)

17050-354-690QF

Unavailable

24

TANK ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE) This part replaces 17500-354-000EC.

17050-354-690EC

Unavailable

24

TANK ASSY., FUEL *G38MS* (MUSCAT GREEN METALLIC) (NOT AVAILABLE) This part replaces 17500-354-000QF.

17050-354-690QF

Unavailable

24

TANK ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE) This part replaces 17500-354-690EC.

17050-354-690EC

Unavailable

24

TANK ASSY., FUEL *G38MS* (MUSCAT GREEN METALLIC) (NOT AVAILABLE) This part replaces 17500-354-690QF.

17050-354-690QF

Unavailable

25

CAP, FUEL TANK

17510-323-310

Unavailable

26

PIN B, FUEL FILLER CAP (NOT AVAILABLE)

17514-323-300

Unavailable

27

WASHER, FILLER CAP FRICTION (NOT AVAILABLE)

17520-300-300

Unavailable

28

COVER, FUEL TANK (NOT AVAILABLE)

17521-351-000

Unavailable

29

MOLDING, R. FUEL TANK (NOT AVAILABLE)

17540-351-000

Unavailable

30

MOLDING, L. FUEL TANK (NOT AVAILABLE)

17550-351-000

Unavailable

31

LATCH ASSY., FUEL FILLER CAP

17550-377-315

Unavailable

32

RUBBER, FR. FUEL TANK

17611-303-000

$7.63

33

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-351-000

Unavailable

34

SEAT ASSY. (NOT AVAILABLE)

77200-354-000

Unavailable

35

HINGE, SEAT (NOT AVAILABLE)

77201-317-670

Unavailable

36

COVER, SEAT (NOT AVAILABLE)

77201-354-300

Unavailable

37

PIN, SEAT HINGE (NOT AVAILABLE)

77203-317-670

Unavailable

38

RUBBER A, SEAT SETTING

77204-286-020

$10.02

39

RUBBER B, SEAT SETTING

77205-286-000

$5.28

39

RUBBER B, SEAT SETTING This part replaces 77205-292-010.

77205-286-000

$5.28

40

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

40

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

40

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

41

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

41

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

41

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

42

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

42

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

42

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

43

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

44

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

45

EMBLEM, R. FUEL TANK

87121-351-000

Unavailable

46

EMBLEM, R. SIDE COVER (NOT AVAILABLE)

87125-354-010

Unavailable

47

EMBLEM, L. SIDE COVER (NOT AVAILABLE)

87126-354-000

Unavailable

48

LABEL, HELMET HOLDER

87511-323-670

$2.72

49

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

49

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

49

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.84

50

SCREW, TAPPING (3X5)

90109-351-000

Unavailable

51

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

51

NUT, SPEED (3MM)

90313-567-000

$3.97

52

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

52

WASHER, PLAIN (6MM)

94103-06800

$1.49

53

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

54

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

54

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

54

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

55

SCREW, PAN (3X6)

93500-03006-0A

$1.49

56

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

57

SCREW, OVAL (3X6)

93700-03006-0G

$1.49

58

SCREW, TAPPING (5X8)

93901-25080

$1.49

59

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

59

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

59

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

59

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

59

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

59

NUT, HEX. (6MM)

94001-06200-0S

$1.49

59

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

60

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

60

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

60

WASHER, PLAIN (6MM)

94101-06800

$1.49

61

WASHER, SPRING (6MM)

94111-06000

$1.49

62

PIN, LOCK (6MM)

94251-06000

$1.49

63

BULK HOSE, FUEL (4.5X3000) (4.5X160)

95001-45003-60M

$36.67

64

BULK HOSE, FUEL (4.5X3000) (4.5X180)

95001-45003-60M

$36.67

65

CLIP, TUBE (B8)

95002-02080

$1.80
