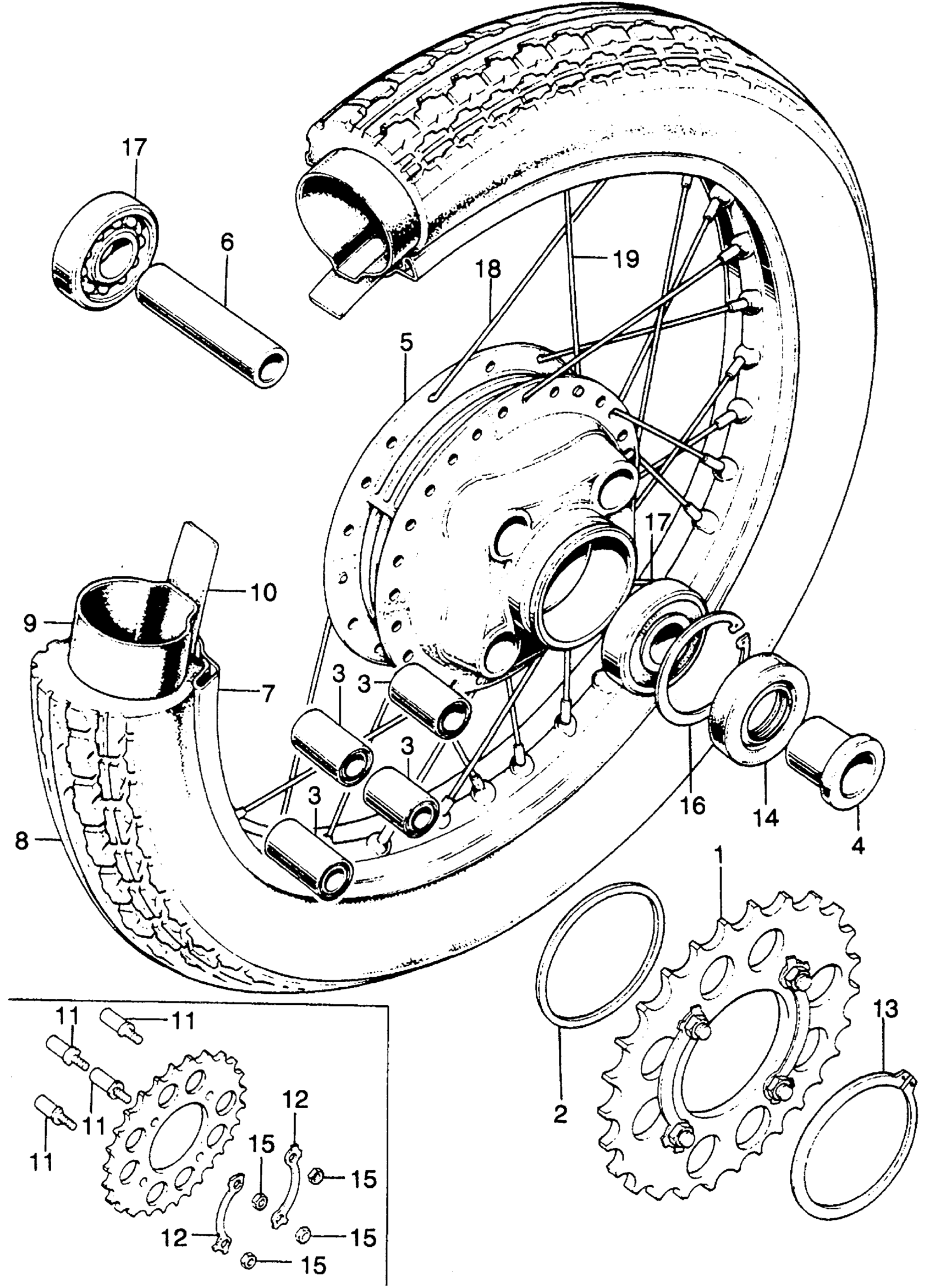

Honda CB175K7A MOTORCYCLE, JPN, VIN# CB175-8000001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET ASSY., FINAL DRIVEN (NOT AVAILABLE)

41200-453-000

Unavailable

3

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-216-000

Unavailable

5

HUB, RR. WHEEL (NOT AVAILABLE)

42601-342-670

Unavailable

6

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-235-000

Unavailable

7

RIM, RR. WHEEL (1.60X18) (DAIDO) (NOT AVAILABLE) This part replaces 42701-235-000.

42701-235-003

Unavailable

7

RIM, RR. WHEEL (1.60X18) (DAIDO) (NOT AVAILABLE)

42701-235-003

Unavailable

8

TIRE, RR. (3.00-18) (YOKOHAMA) (NOT AVAILABLE)

42711-315-009

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

10

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

10

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-810.

42713-304-003

$6.69

10

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-340-006.

42713-304-003

$6.69

10

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 44713-205-000.

42713-304-003

$6.69

12

WASHER A3, TONGUED This part replaces 90523-222-000.

94108-13000

$1.49

12

WASHER A3, TONGUED This part replaces 90522-222-000.

94108-13000

$1.49

12

WASHER A3, TONGUED

94108-13000

$1.49

13

CIRCLIP (58MM)

90664-216-000

$5.55

14

DUST SEAL, WHEEL DAMPER (NOT AVAILABLE) This part replaces 90757-216-000.

90757-216-003

Unavailable

14

DUST SEAL, WHEEL DAMPER (NOT AVAILABLE)

90757-216-003

Unavailable

16

CIRCLIP (INNER) (47MM) (NOT AVAILABLE)

94521-47000

$2.39

16

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

17

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030.

96140-63030-10

$14.48

17

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030-00.

96140-63030-10

$14.48

17

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

18

SPOKE B (9X163.5) This part replaces 97395-52167-1.

97395-52167-10

Unavailable

18

SPOKE B (9X163.5)

97395-52167-10

Unavailable

19

SPOKE B (9X162.5) (NOT AVAILABLE) This part replaces 97660-52165-1.

97660-52165-10

Unavailable
