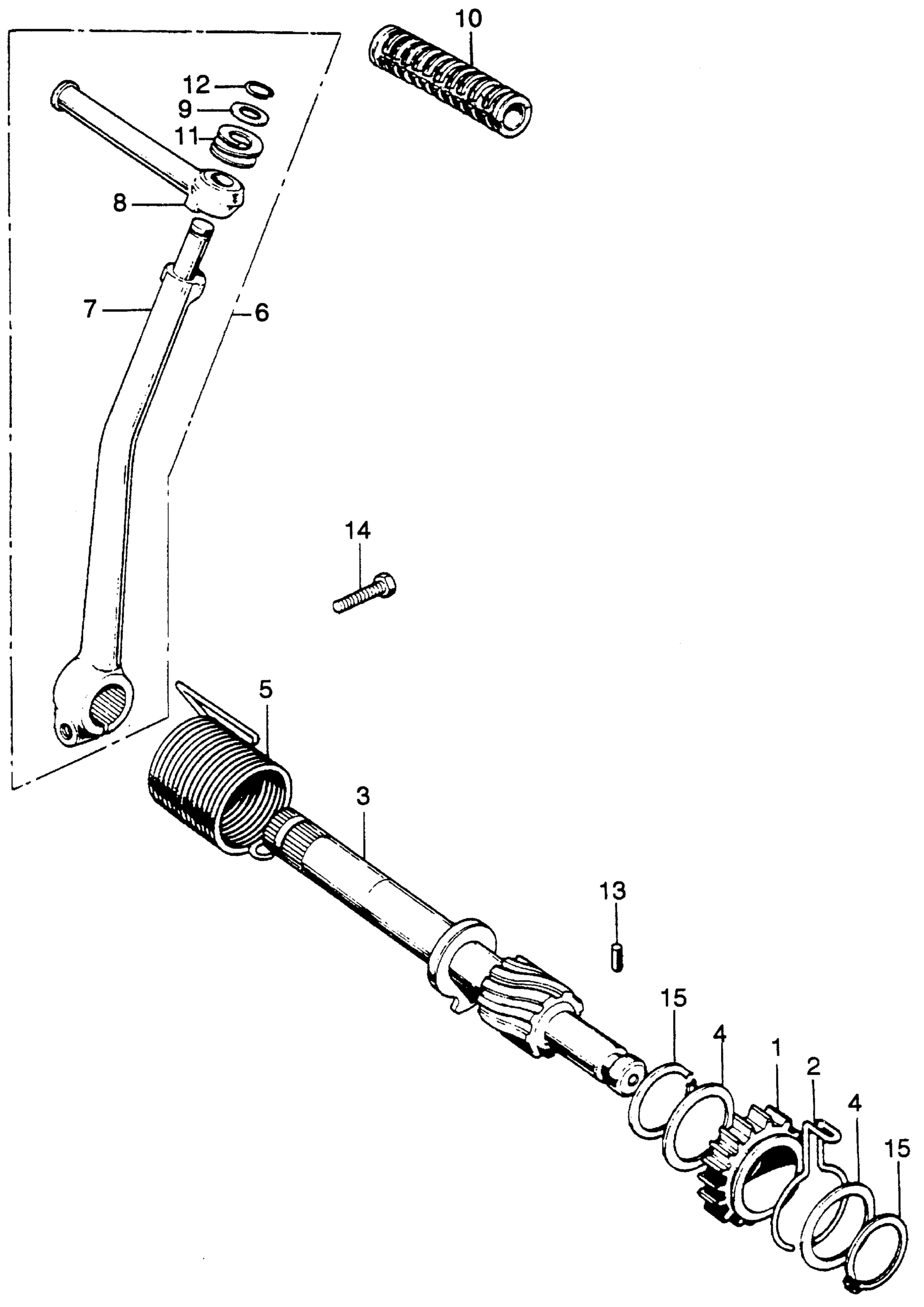

Honda CB175K7A MOTORCYCLE, JPN, VIN# CB175-8000001 KICK STARTER Diagram

PINION, KICK STARTER (NOT AVAILABLE)

28211-235-020

Unavailable

SPRING, FRICTION (NOT AVAILABLE)

28239-235-000

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-235-000

Unavailable

WASHER, KICK STARTER SPINDLE (NOT AVAILABLE)

28252-235-000

Unavailable

SPRING, KICK STARTER (NOT AVAILABLE)

28261-235-000

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-342-670

Unavailable

ARM, KICK STARTER

28301-342-000

Unavailable

PEDAL, KICK STARTER (NOT AVAILABLE)

28302-342-300

Unavailable

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

RUBBER, KICK STARTER

28311-342-000

$6.71

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

PIN, KNOCK (4X15) (NOT AVAILABLE)

90701-216-000

Unavailable

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49
