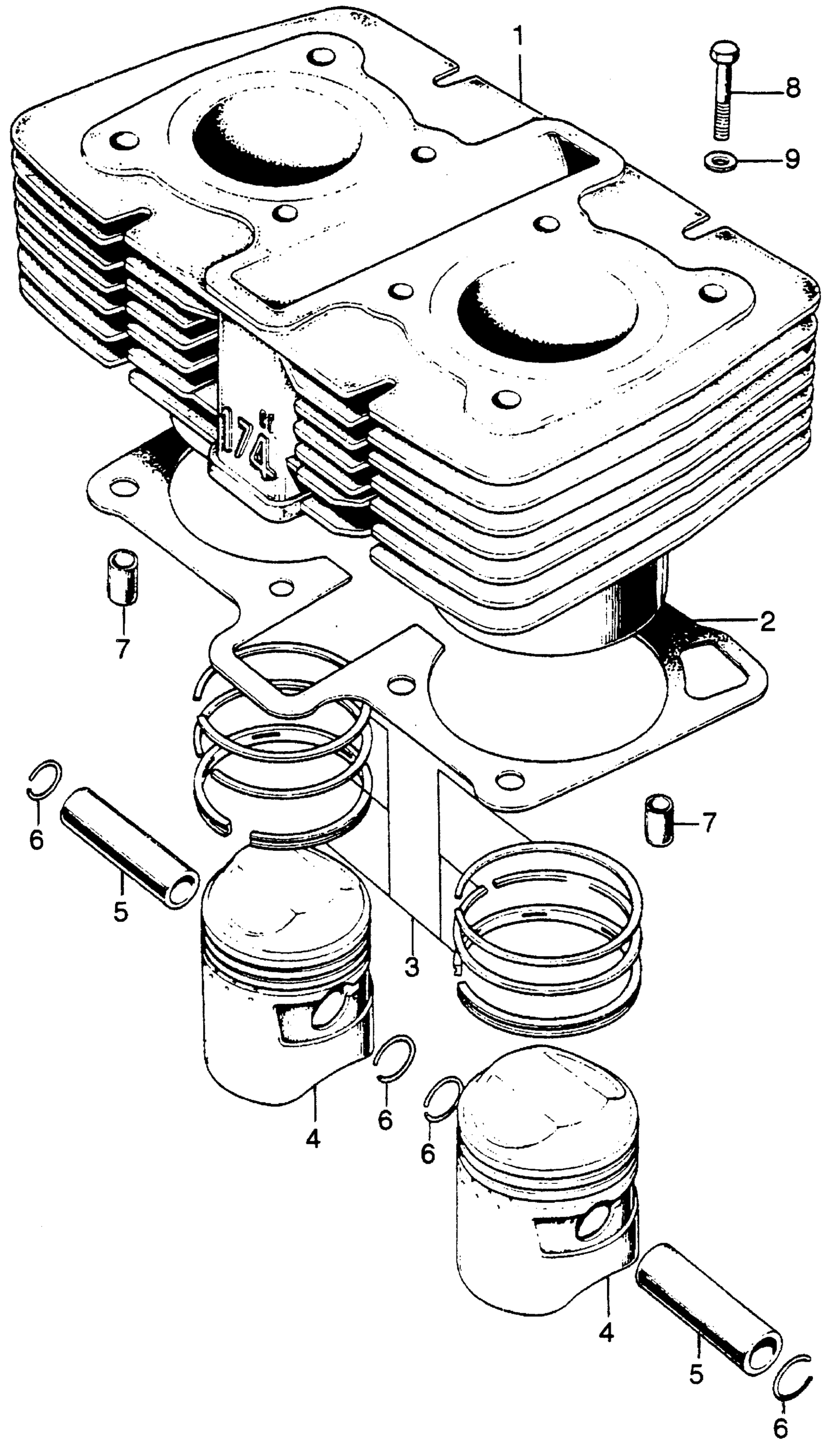

Honda CB175K7A MOTORCYCLE, JPN, VIN# CB175-8000001 CYLINDER + PISTON Diagram

#

Description
Price

1

CYLINDER

12100-302-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-235-010.

12191-235-306

Unavailable

3

RING SET, PISTON (STD) This part replaces 13011-302-004.

13011-439-005

$56.20

3

RING SET, PISTON (STD) This part replaces 13011-302-305.

13011-439-005

$56.20

3

RING SET, PISTON (STD)

13011-439-005

$56.20

3

RING SET, PISTON (OS 0.25) This part replaces 13021-302-004.

13021-439-005

Unavailable

3

RING SET, PISTON (OS 0.25) This part replaces 13021-302-305.

13021-439-005

Unavailable

3

RING SET, PISTON (OS 0.25)

13021-439-005

Unavailable

3

RING SET, PISTON (OS 0.50) This part replaces 13031-302-004.

13031-439-005

Unavailable

3

RING SET, PISTON (OS 0.50) This part replaces 13031-302-305.

13031-439-005

Unavailable

3

RING SET, PISTON (OS 0.50)

13031-439-005

Unavailable

3

RING SET, PISTON (0.75) This part replaces 13041-302-004.

13041-439-005

Unavailable

3

RING SET, PISTON (0.75) This part replaces 13041-302-305.

13041-439-005

Unavailable

3

RING SET, PISTON (0.75)

13041-439-005

Unavailable

3

RING SET, PISTON (1.00) This part replaces 13051-302-004.

13051-439-005

Unavailable

3

RING SET, PISTON (1.00) This part replaces 13051-302-305.

13051-439-005

Unavailable

3

RING SET, PISTON (1.00)

13051-439-005

Unavailable

4

PISTON (STD) (NOT AVAILABLE)

13101-313-010

Unavailable

4

PISTON (OS 0.25) (NOT AVAILABLE)

13102-313-010

Unavailable

4

PISTON (OS 0.50) (NOT AVAILABLE)

13103-313-010

Unavailable

4

PISTON (0.75) (NOT AVAILABLE)

13104-313-010

Unavailable

4

PISTON (1.00) (NOT AVAILABLE)

13105-313-010

Unavailable

5

PIN, PISTON

13111-028-000

$11.08

5

PIN, PISTON This part replaces 13111-217-000.

13111-028-000

$11.08

5

PIN, PISTON This part replaces 13111-221-000.

13111-028-000

$11.08

6

CLIP, PISTON PIN

13115-200-000

$1.49

6

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

7

PIN A, DOWEL (10X14)

94301-10140

$2.28

8

BOLT, FLANGE (6X25) This part replaces 95700-06025.

95701-06025-00

$1.80

8

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

8

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

8

BOLT, FLANGE (6X25) This part replaces 95900-06025-00.

95701-06025-00

$1.80
