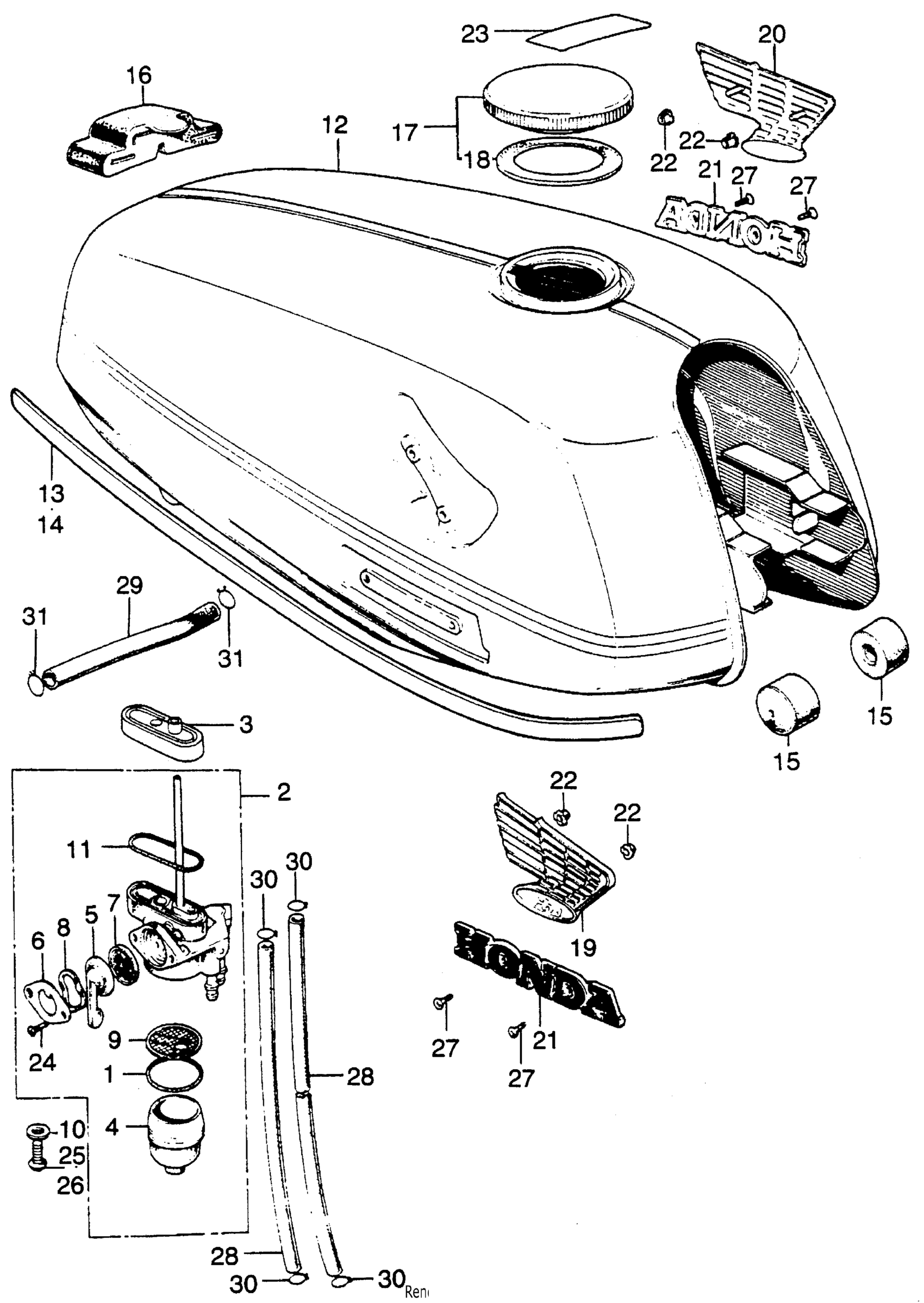

Honda CB175K7A MOTORCYCLE, JPN, VIN# CB175-8000001 CB FUEL TANK + FUEL VALVE Diagram

#

Description
Price

1

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

2

PETCOCK ASSY.

16950-336-005

$63.92

3

PLATE, VALVE (NOT AVAILABLE)

16951-453-000

Unavailable

4

CUP, FUEL STRAINER

16952-028-000

Unavailable

5

LEVER, PETCOCK

16953-028-004

Unavailable

6

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

7

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

7

GASKET, VALVE

16957-ZE1-812

$3.08

8

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

8

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

8

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

8

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

9

SCREEN, FUEL STRAINER

16957-028-000

$16.22

10

GASKET, PETCOCK BODY

16993-011-000

Unavailable

11

O-RING (23.8X2.4)

16997-273-000

$4.53

12

TANK, FUEL *PB50MS* (HAWAIIAN BLUE METALLIC) (NOT AVAILABLE)

17510-453-000MK

Unavailable

12

TANK, FUEL *R2CC* (CANDY ORANGE CUSTOM) (NOT AVAILABLE)

17510-453-000NC

Unavailable

13

MOLDING, R. FUEL TANK

17521-453-000

Unavailable

14

MOLDING, L. FUEL TANK (NOT AVAILABLE)

17522-453-000

Unavailable

15

RUBBER, FR. FUEL TANK

17611-303-000

$7.63

16

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-336-000

Unavailable

17

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

17

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

17

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

18

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

$2.85

18

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

18

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

19

EMBLEM, R. FUEL TANK

87121-342-670

Unavailable

20

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-342-670

Unavailable

22

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

22

NUT, EMBLEM CLAMP

87311-634-600

$4.79

23

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

23

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

23

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.84

24

SCREW, PAN (3X6)

93500-03006-0A

$1.49

26

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

26

SCREW, PAN (6X35)

93500-06035-0A

$1.49

27

SCREW, OVAL (3X6) (NOT AVAILABLE)

93700-03006-0A

Unavailable

28

BULK HOSE, FUEL (4.5X3000) (4.5X185)

95001-45003-60M

$36.67

29

BULK HOSE, FUEL (5.5X3000) (5.5X200)

95001-55003-60M

$47.32

30

CLIP, TUBE (B8)

95002-02080

$1.80

31

CLIP, TUBE (B10)

95002-02100

$1.90
