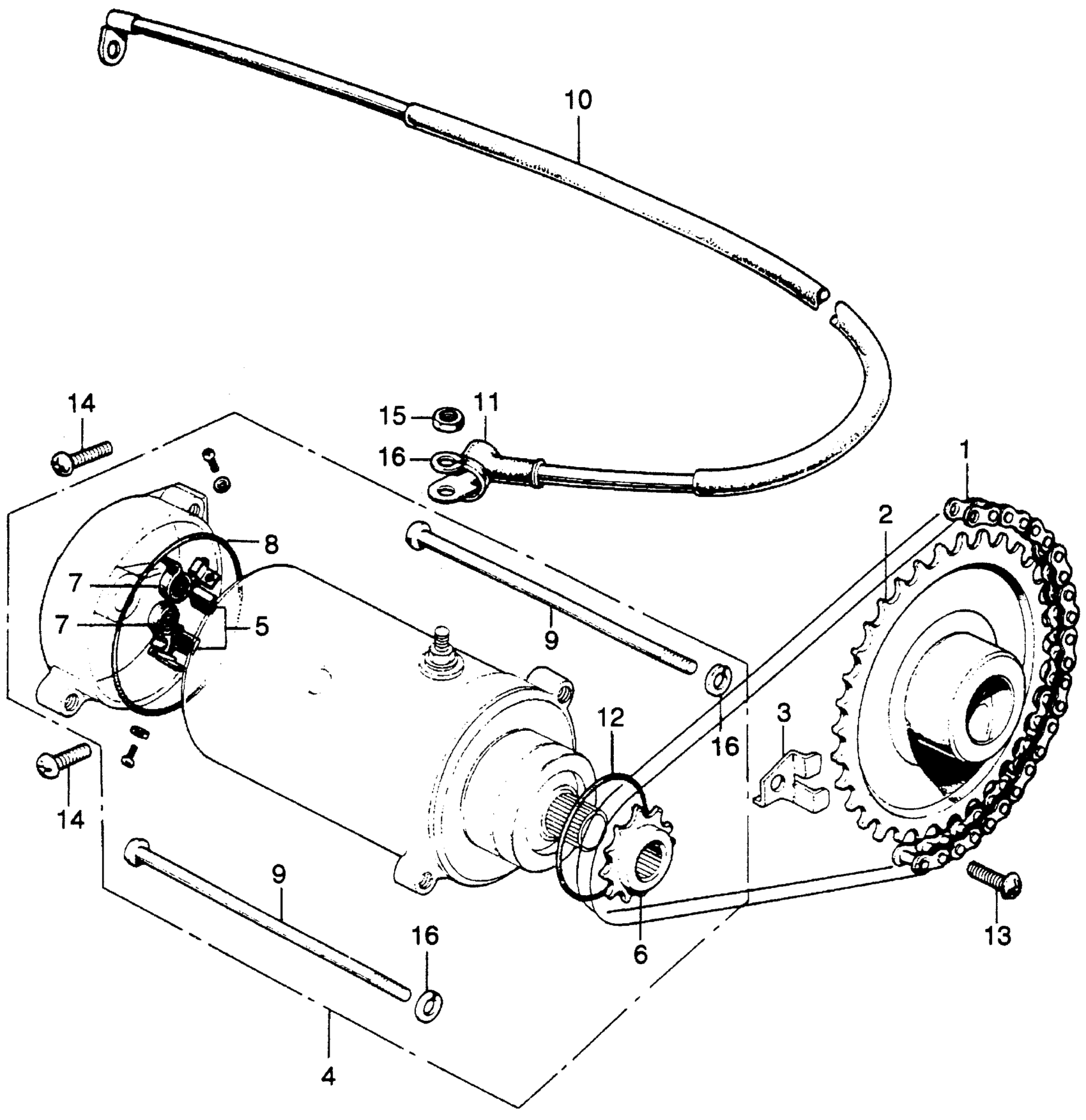

Honda CB175K6A MOTORCYCLE, JPN, VIN# CB175-7000001 STARTING MOTOR Diagram

#

Description
Price

1

CHAIN, STARTER (DID219-54L) (DAIDO) This part replaces 28101-286-003.

28101-402-003

Unavailable

1

CHAIN, STARTER (DID219-54L) (DAIDO)

28101-402-003

Unavailable

2

SPROCKET, STARTER (NOT AVAILABLE)

28110-216-000

Unavailable

3

PLATE, DRIVE SPROCKET SETTING (NOT AVAILABLE)

28117-302-010

Unavailable

4

MOTOR, STARTER (12V) This part replaces 31200-306-158.

31200-306-405

Unavailable

5

BRUSH SET (MITSUBA) This part replaces 31201-216-154.

31201-230-174

Unavailable

5

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

6

SPROCKET, STARTER MOTOR

31202-216-154

$50.41

7

SPRING, BRUSH

31204-230-174

$4.64

8

O-RING (61X2) This part replaces 31205-216-000.

91302-MA6-003

$5.17

8

O-RING (61X2) This part replaces 31205-216-004.

91302-MA6-003

$5.17

8

O-RING (61X2)

91302-MA6-003

$5.17

9

BOLT, SETTING (NOT AVAILABLE)

31205-286-158

Unavailable

10

CABLE, STARTER MOTOR (NOT AVAILABLE)

32402-304-000

Unavailable

11

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

12

O-RING

91309-MA6-000

$3.97

12

O-RING This part replaces 91309-283-000.

91309-MA6-000

$3.97

12

O-RING This part replaces 91309-283-005.

91309-MA6-000

$3.97

13

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

14

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

15

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

15

NUT, HEX. (6MM)

94002-06000-0S

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49
