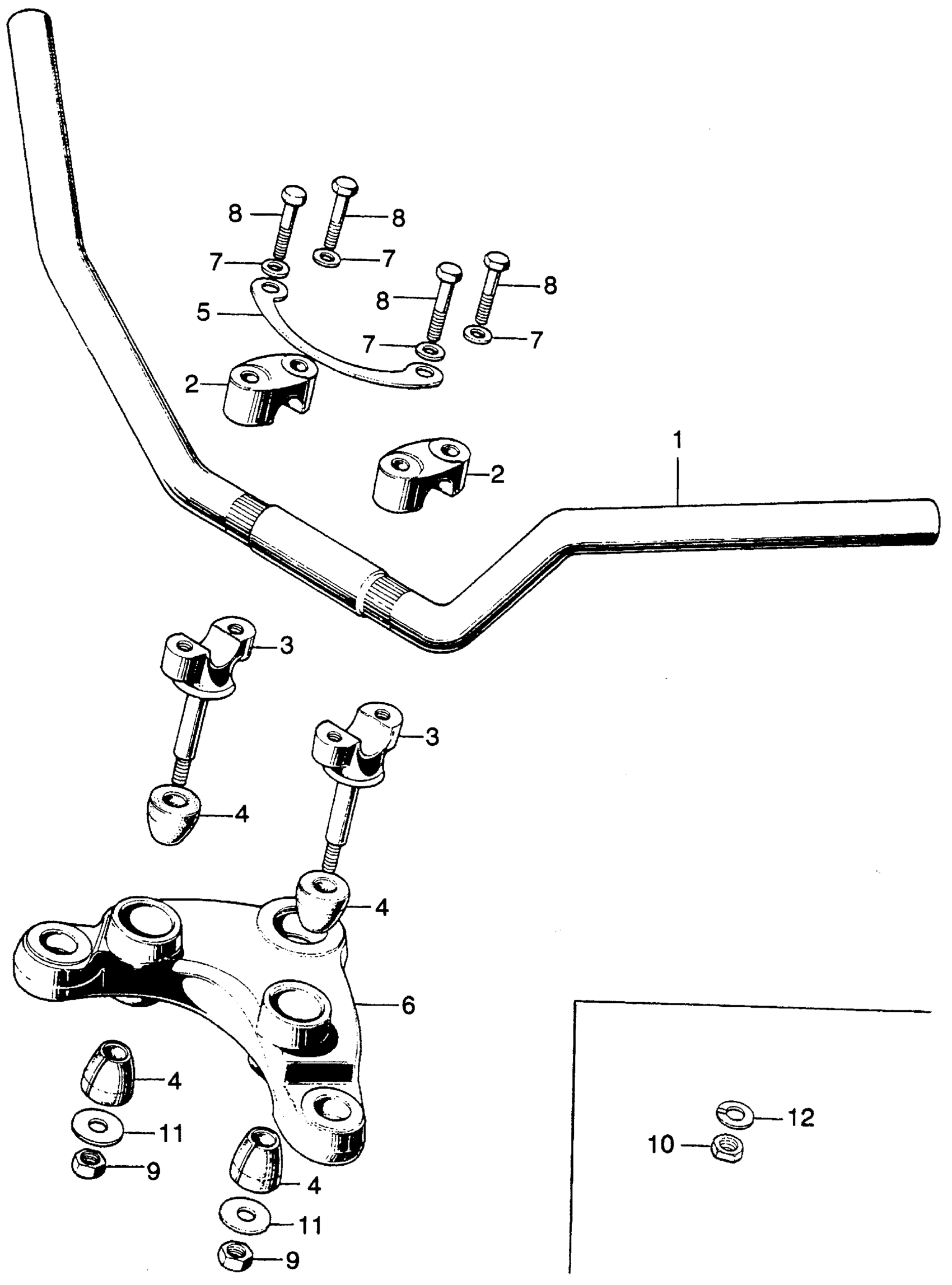

Honda CB175K6A MOTORCYCLE, JPN, VIN# CB175-7000001 HANDLEBAR + TOP BRIDGE Diagram

#

Description

Price

1

HANDLEBAR (NOT AVAILABLE)

53100-336-000

Unavailable

2

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$10.90

3

HOLDER C2, HANDLEBAR This part replaces 53132-316-670.

95014-33200

Unavailable

3

HOLDER C2, HANDLEBAR

95014-33200

Unavailable

4

RUBBER, HANDLEBAR CUSHION

53133-303-000

$5.61

5

HOLDER, CABLE (NOT AVAILABLE)

53139-286-000

Unavailable

6

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-316-670

Unavailable

7

WASHER, PLAIN (8MM)

90518-921-000

$1.19

8

BOLT, FLANGE (8X36)

90111-362-000

$4.47

8

BOLT, FLANGE (8X36) This part replaces 93000-08036-0B.

90111-362-000

$4.47

9

NUT, HEX. (8MM)

94001-08000-0S

$1.19

11

WASHER, PLAIN (8MM)

94101-08000

$0.75
