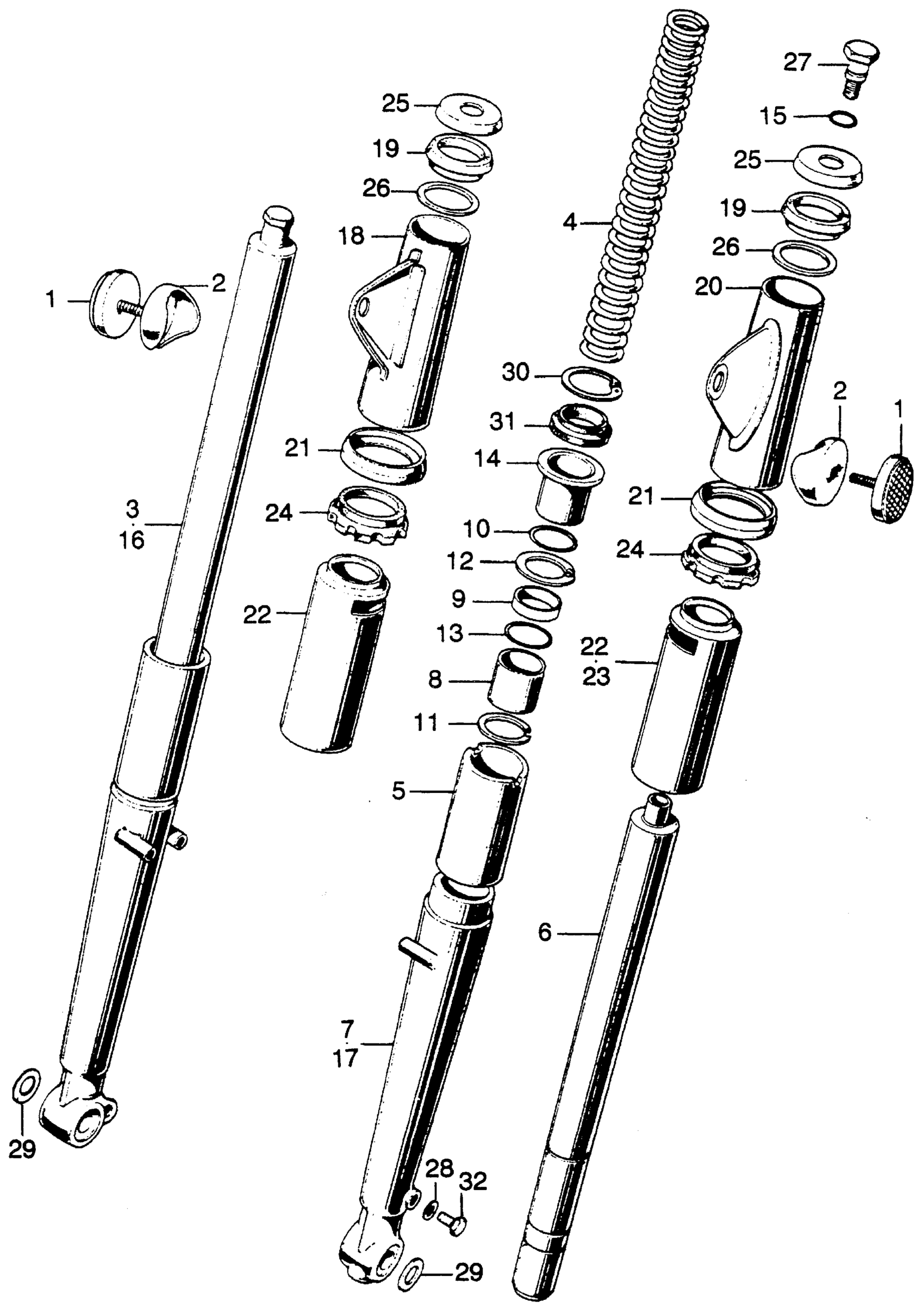

Honda CB175K6A MOTORCYCLE, JPN, VIN# CB175-7000001 CB175 FRONT FORK K4-K6 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33743-342-670

Unavailable

3

FORK ASSY., R. FR.

51400-342-670

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-216-000

Unavailable

5

COVER, CASE (LOWER) (NOT AVAILABLE)

51402-240-000

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-336-000

Unavailable

7

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51420-336-000

Unavailable

8

PISTON, FR. FORK (NOT AVAILABLE)

94603-31200

Unavailable

9

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-222-000

Unavailable

10

RING A, SNAP (31MM)

94570-31000

Unavailable

11

RING B, SNAP (31MM)

94580-31000

Unavailable

12

RING, FORK VALVE STOPPER (NOT AVAILABLE)

51446-222-000

Unavailable

13

RING A, SNAP (31MM)

94570-31000

Unavailable

14

GUIDE, FR. FORK PIPE (NOT AVAILABLE)

51451-342-000

Unavailable

15

O-RING (8.4X2.4)

94608-10000

$1.49

16

FORK ASSY., L. FR.

51500-342-670

Unavailable

17

CASE, L. FR. FORK (LOWER) This part replaces 51520-336-000.

51520-336-010

Unavailable

17

CASE, L. FR. FORK (LOWER)

51520-336-010

Unavailable

18

COVER, R. FR. FORK (UPPER) *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

51602-342-670HX

Unavailable

18

COVER, R. FR. FORK (UPPER) *Y2CC* (CANDY GOLD CUSTOM)

51602-342-670LX

Unavailable

19

SHOCK ABSORBER, FR. COVER (UPPER) (NOT AVAILABLE)

51603-315-000

Unavailable

20

COVER, L. FR. FORK (UPPER) *R25* (LIGHT RUBY RED)

51606-342-670HX

Unavailable

20

COVER, L. FR. FORK (UPPER) *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE)

51606-342-670LX

Unavailable

21

RIB, FR. FORK (NOT AVAILABLE)

51608-235-000

Unavailable

22

COVER, R. FR. FORK (LOWER)

51611-240-000Z

Unavailable

22

COVER, R. FR. FORK (LOWER) *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

51611-240-000HX

Unavailable

22

COVER, R. FR. FORK (LOWER) *Y2CC* (CANDY GOLD CUSTOM) (NOT AVAILABLE)

51611-240-000LX

Unavailable

22

COVER, R. FR. FORK (LOWER) *PB14MC* (MARINA BLUE METALLIC CUSTOM) (NOT AVAILABLE)

51611-240-000MU

Unavailable

24

FORK, FR. FORK COVER (LOWER)

51622-216-670

Unavailable

25

CAP, FR. FORK COVER (UPPER) (NOT AVAILABLE)

51623-235-670

Unavailable

26

WASHER, COVER (UPPER/LOWER) (NOT AVAILABLE)

51624-315-000

Unavailable

27

BOLT, FORK A

94605-10101

$5.21

28

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

29

WASHER (15.2X25)

90557-230-000

$2.39

30

CIRCLIP (INNER) (41MM) (NOT AVAILABLE)

94536-41120

Unavailable

31

OIL SEAL, FR. FORK This part replaces 91255-315-003.

91255-464-003

$11.16

31

OIL SEAL, FR. FORK

91255-464-003

$11.16

32

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

32

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

32

BOLT, HEX. (6X8)

92101-06008-0A

$1.49
