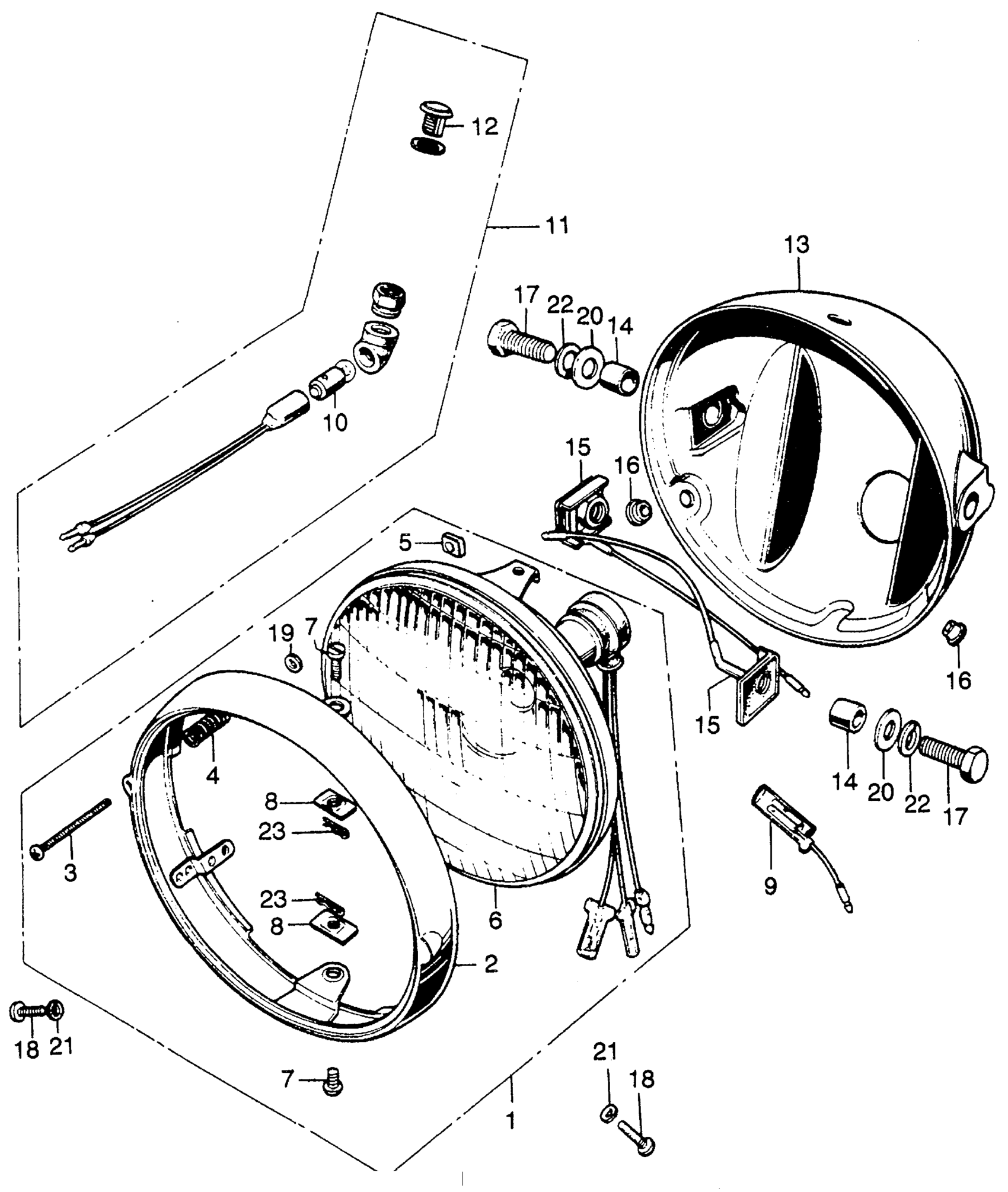

Honda CB175K5A MOTORCYCLE, JPN, VIN# CB175-6000001 CB HEADLIGHT + HEADLIGHT CASE Diagram

HEADLIGHT ASSY. (12V 35/25W) (NOT AVAILABLE)

33100-292-674

Unavailable

RIM, HEADLIGHT (NOT AVAILABLE)

33101-292-672

Unavailable

SCREW, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33103-292-670

Unavailable

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE)

33107-283-000

Unavailable

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

NUT, HEADLIGHT BEAM ADJ. This part replaces 33117-292-003.

33117-001-023

$2.39

HEADLIGHT UNIT (12V 35/25W)

33120-292-673

Unavailable

SCREW, UNIT HOLDER

33125-292-670

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

SUB-WIRE, TURN SIGNAL GROUND (NOT AVAILABLE)

33605-310-000

Unavailable

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

LAMP ASSY., BEAM PILOT (NOT AVAILABLE)

37550-292-010

Unavailable

LENS, BEAM PILOT (NOT AVAILABLE)

37551-292-000

Unavailable

CASE, HEADLIGHT *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

61301-292-020CM

Unavailable

CASE, HEADLIGHT *Y2C* (CANDY GOLD) (NOT AVAILABLE)

61301-292-020CQ

Unavailable

CASE, HEADLIGHT *PB6M* (CRYSTAL BLUE METALLIC) (NOT AVAILABLE)

61301-292-020EW

Unavailable

COLLAR, HEADLIGHT CASE

61302-292-000

Unavailable

WASHER, HEADLIGHT CASE (NOT AVAILABLE)

61303-292-000

Unavailable

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

BOLT, HEX. (10X25) This part replaces 92000-10025-0B.

92101-10025-0B

Unavailable

SCREW, PAN (5X16)

93500-05016-0B

$1.49

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, PLAIN (10MM)

94101-10200

$1.49

WASHER, SPRING (5MM) This part replaces 90085-371-980.

94111-05000

$1.49

WASHER, SPRING (5MM) This part replaces 91560-371-980.

94111-05000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, SPRING (5MM) This part replaces 94111-05200.

94111-05000

$1.49

WASHER, SPRING (8MM) This part replaces 94111-10200.

94111-10000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, LOCK (5MM)

94251-05000

$1.49
