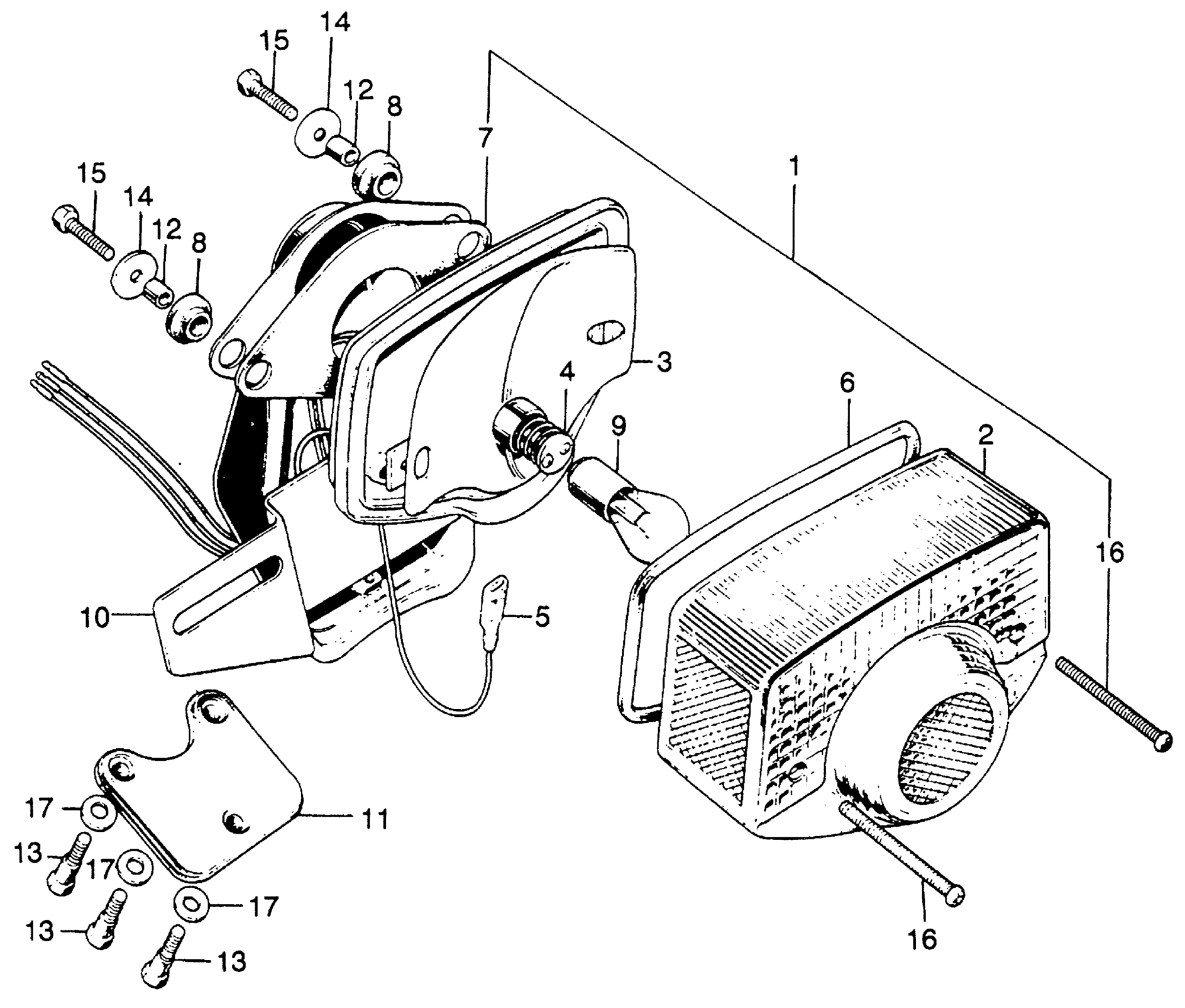

Honda CB175K4A MOTORCYCLE, JPN, VIN# CB175-5000001 TAILLIGHT K4 Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-315-000

Unavailable

2

LENS, TAILLIGHT

33702-077-671

$36.90

3

BASE, TAILLIGHT

33703-077-671

Unavailable

4

WIRE, TAILLIGHT (NOT AVAILABLE)

33707-304-000

Unavailable

5

CABLE, TAILLIGHT GROUND

33708-304-000

Unavailable

6

GASKET, TAILLIGHT

33709-077-671

$3.41

7

GASKET, TAILLIGHT BASE (NOT AVAILABLE)

33718-077-671

Unavailable

8

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

9

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

9

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

9

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

9

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

10

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-235-000B.

84701-235-670Z

Unavailable

10

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-235-670Z

Unavailable

11

SEAT, NUMBER PLATE BRACKET (NOT AVAILABLE)

84702-307-000

Unavailable

12

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

13

BOLT, TAILLIGHT SETTING

90162-283-000

$4.24

14

WASHER (20MM)

90581-310-000

$1.90

15

BOLT, HEX. (5X20) This part replaces 92000-05020-0B.

92101-05020-0B

Unavailable

16

SCREW, PAN (4X50)

93500-04050-0B

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49
