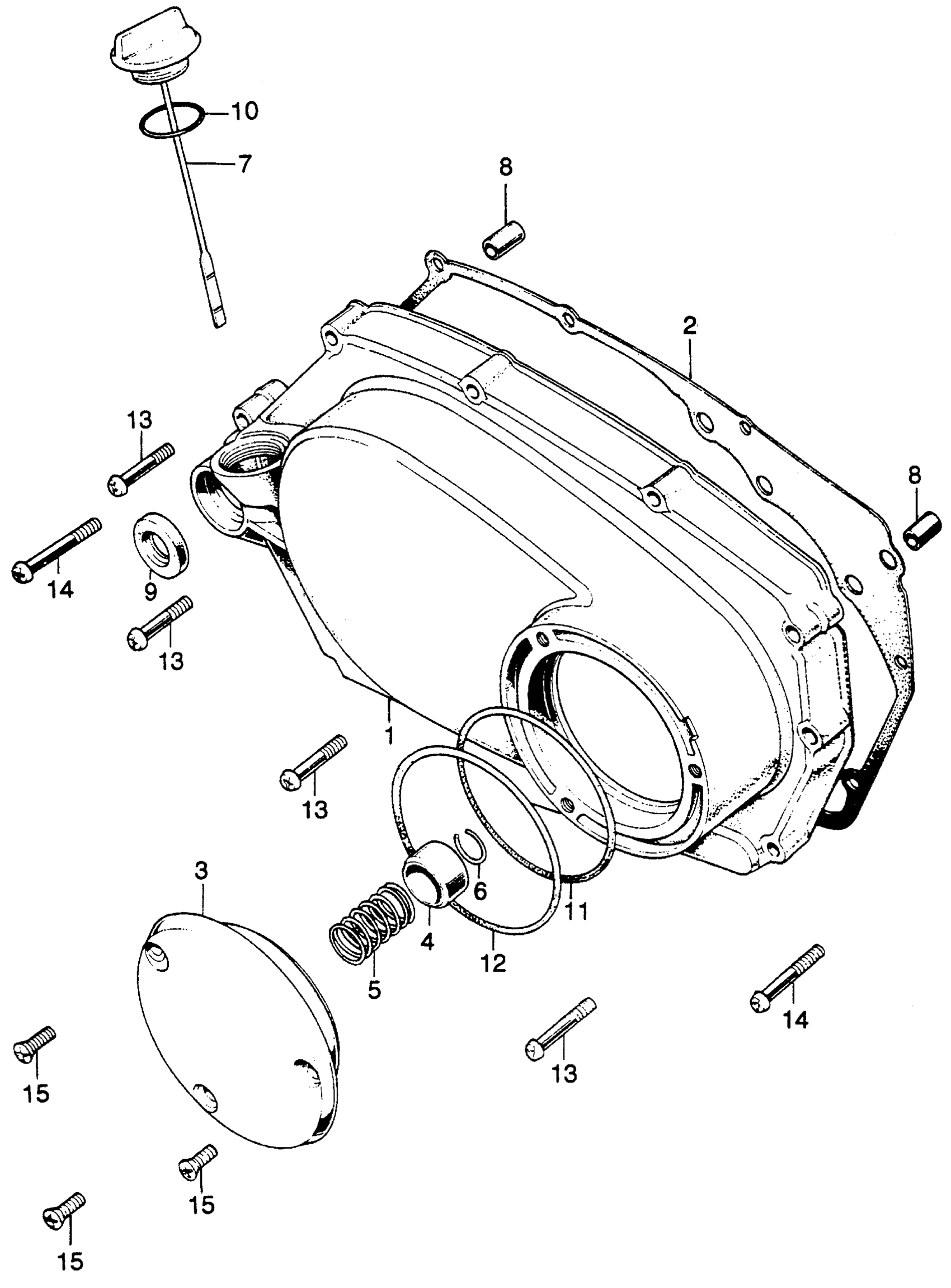

Honda CB175K4A MOTORCYCLE, JPN, VIN# CB175-5000001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-302-030

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-302-010.

11394-302-306

Unavailable

GASKET, R. CRANKCASE COVER

11394-302-306

Unavailable

COVER, OIL FILTER

15481-302-010

Unavailable

METAL, OIL GUIDE (NOT AVAILABLE)

15594-216-000

Unavailable

SPRING, OIL GUIDE METAL

15595-216-000

Unavailable

RING, OIL GUIDE METAL STOPPER (NOT AVAILABLE)

15597-286-000

Unavailable

DIPSTICK, OIL

15650-302-000

Unavailable

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

PIN A, DOWEL (10X14)

94301-10140

$2.28

OIL SEAL (14X24X5)

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$5.04

O-RING (27.5X2.6) This part replaces 91302-001-000.

91302-001-710

$2.99

O-RING (27.5X2.6)

91302-001-710

$2.99

O-RING (70X2.4)

91309-302-000

$10.00

O-RING (64.5X3) (ARAI) This part replaces 91305-634-961.

91310-MG7-003

$9.98

O-RING (64.5X3) (ARAI) This part replaces 91309-700-000.

91310-MG7-003

$9.98

O-RING (64.5X3) (ARAI)

91310-MG7-003

$9.98

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

SCREW, PAN (6X45)

93500-06045-0A

$1.49

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

SCREW, OVAL (6X16)

93700-06016-0A

$1.49
