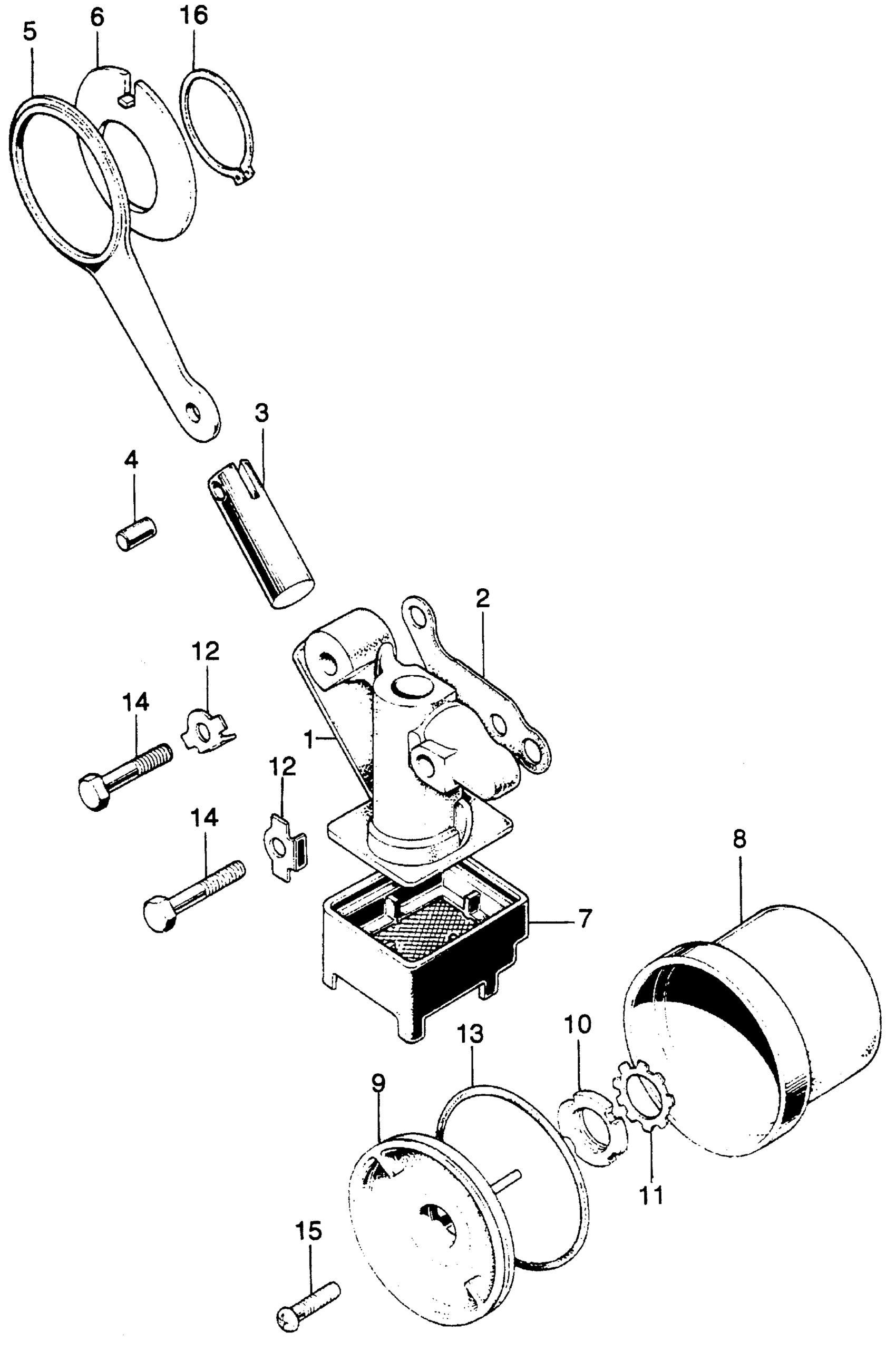

Honda CB175K4A MOTORCYCLE, JPN, VIN# CB175-5000001 OIL PUMP + OIL FILTER Diagram

#

Description
Price

1

PUMP, OIL (NOT AVAILABLE)

15210-302-000

Unavailable

2

GASKET PUMP, BODY (NOT AVAILABLE)

15219-302-000

Unavailable

3

PLUNGER, PUMP (NOT AVAILABLE)

15231-205-000

Unavailable

4

PIN, PUMP PLUNGER (NOT AVAILABLE)

15235-205-000

Unavailable

5

ROD, PUMP (NOT AVAILABLE)

15281-216-010

Unavailable

6

WASHER, SIDE PUMP ROD (NOT AVAILABLE)

15292-216-000

Unavailable

7

SCREEN, PUMP FILTER (NOT AVAILABLE)

15334-302-000

Unavailable

8

ROTOR, OIL FILTER (NOT AVAILABLE)

15441-216-010

Unavailable

9

CAP, OIL FILTER (NOT AVAILABLE)

15450-216-000

Unavailable

10

NUT, LOCK (16MM)

90231-KCS-651

$3.90

10

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$3.90

11

WASHER, LOCK (16MM) (NOT AVAILABLE)

90431-216-010

Unavailable

12

WASHER, SPRING (6MM) (NOT AVAILABLE)

90433-283-000

Unavailable

13

O-RING (46X2) This part replaces 91305-216-000.

91305-426-003

$6.69

13

O-RING (46X2)

91305-426-003

$6.69

14

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.57

14

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.57

14

BOLT, HEX. (6X32)

92101-06032-0A

$1.57

15

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$0.93

15

SCREW, PAN (6X20)

93500-06020-0A

$0.93

16

CIRCLIP (OUTER) (26MM) (NOT AVAILABLE)

94510-26000

Unavailable
