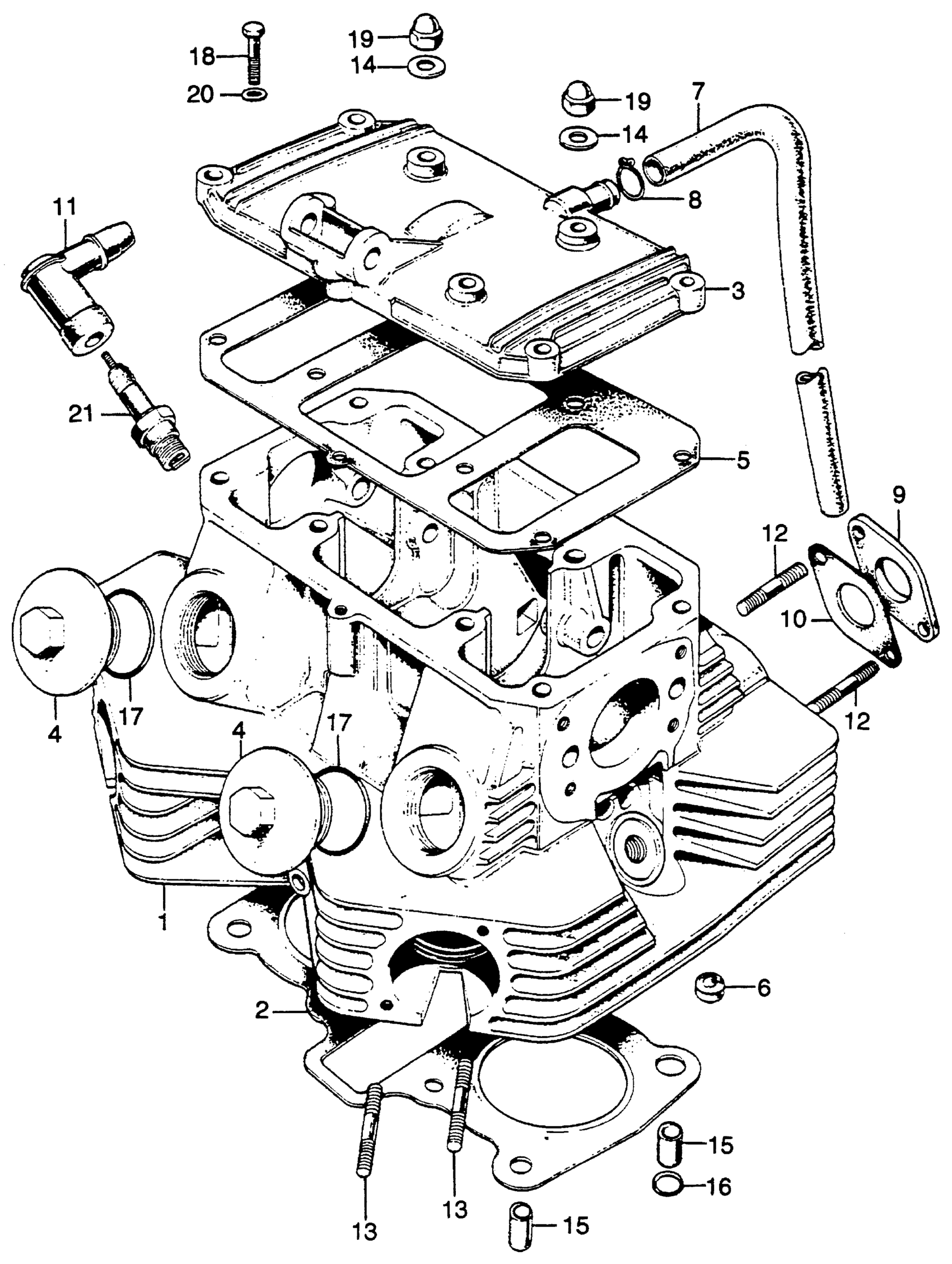

Honda CB175K4A MOTORCYCLE, JPN, VIN# CB175-5000001 CYLINDER HEAD + CYLINDER HEAD COVER Diagram

#

Description
Price

1

CYLINDER HEAD This part replaces 12200-315-000.

12200-315-010

Unavailable

1

CYLINDER HEAD

12200-315-010

Unavailable

2

GASKET, CYL HD This part replaces 12251-235-000.

12251-235-405

Unavailable

3

COVER, CYLINDER HEAD (NOT AVAILABLE)

12300-302-010

Unavailable

4

CAP, VALVE ADJ.

12361-246-000

Unavailable

5

GASKET, CYL HD CVR This part replaces 12391-216-000.

12391-354-306

Unavailable

5

GASKET, CYL HD CVR This part replaces 12391-354-000.

12391-354-306

Unavailable

6

RUBBER, INSERT

12620-286-000

$5.85

7

*95005-11001-30M This part replaces 15761-286-010.

95005-11570-30

Unavailable

7

*95005-11001-30M This part replaces 15761-292-010.

95005-11570-30

Unavailable

7

*95005-11001-30M This part replaces 15761-292-030.

95005-11570-30

Unavailable

8

CLIP, BREATHER TUBE

15772-292-010

$2.92

9

INSULATOR, CARB This part replaces 16211-304-000.

16211-304-306

Unavailable

10

GASKET This part replaces 16229-235-000.

16229-235-306

Unavailable

11

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

11

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

11

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

11

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

12

BOLT, STUD (6X36) (NOT AVAILABLE)

90044-259-000

Unavailable

13

BOLT, STUD (6X50) This part replaces 90063-235-000.

92700-06050-0E

$1.54

13

BOLT, STUD (6X50)

92700-06050-0E

$1.54

14

WASHER, SEAL (8MM)

90441-286-000

$1.90

15

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

15

PIN A, DOWEL (10X14)

94301-10140

$2.28

16

O-RING (10X1.6)

91301-200-000

$3.01

17

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-790.

91301-428-003

$2.21

17

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-791.

91301-428-003

$2.21

17

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

17

O-RING (35.5X3) (NOK) This part replaces 91302-216-000.

91301-428-003

$2.21

17

O-RING (35.5X3) (NOK) This part replaces 91302-500-000.

91301-428-003

$2.21

18

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

18

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

19

NUT, CAP (8MM)

94021-08000-0S

$1.55

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58714.

98066-58717

$2.44

21

SPARK PLUG (D8HA) (NGK)

98066-58717

$2.44

21

SPARK PLUG (X24FS-U) (DENSO) This part replaces 98066-58723.

98066-58727

Unavailable

21

SPARK PLUG (X24FS-U) (DENSO)

98066-58727

Unavailable
