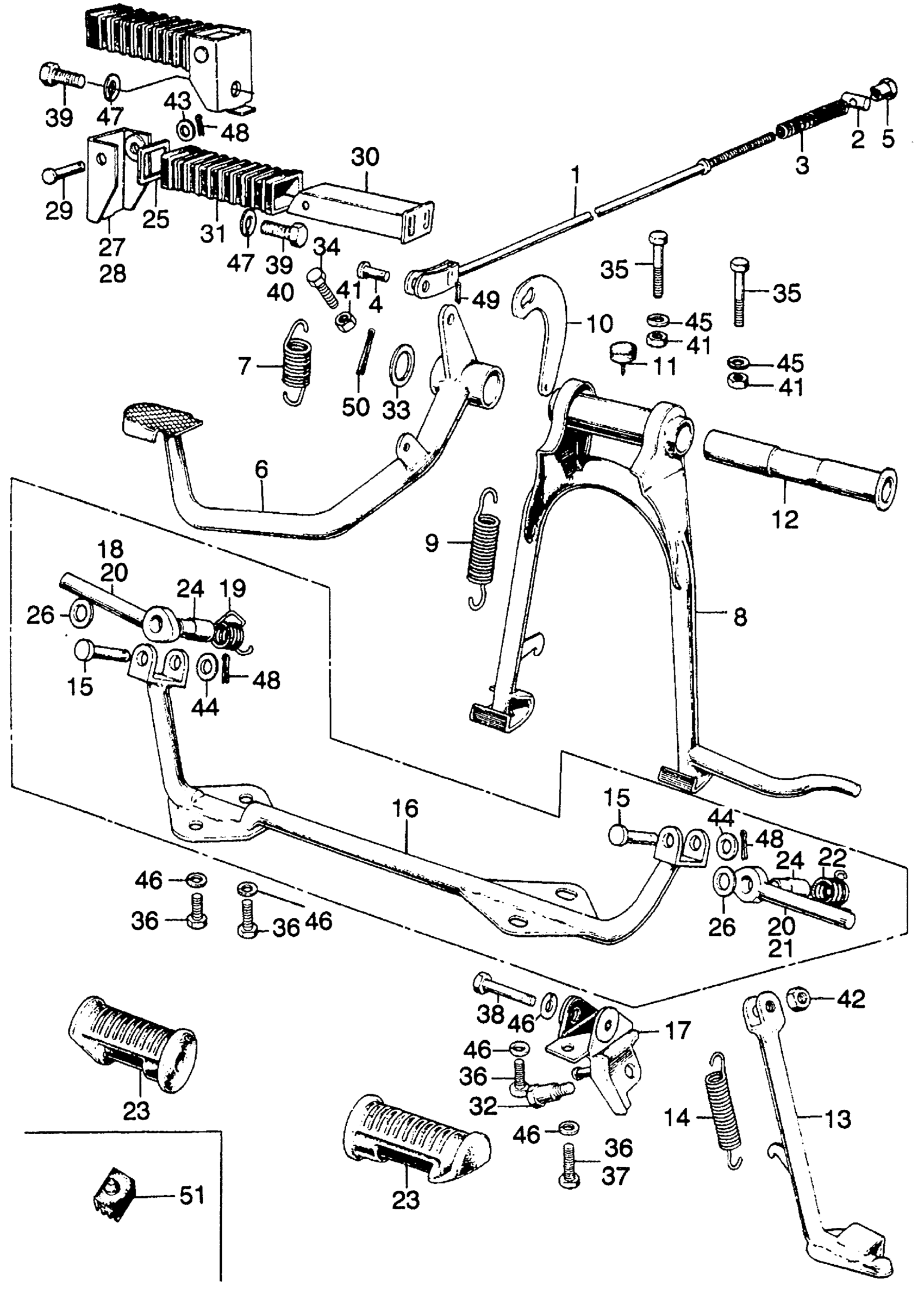

Honda CB175K4A MOTORCYCLE, JPN, VIN# CB175-5000001 BRAKE PEDAL + MAIN STAND Diagram

#

Description
Price

1

ROD, RR. BRAKE (NOT AVAILABLE)

43451-307-000

Unavailable

2

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

2

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

2

JOINT, BRAKE ARM

95015-32001

$1.49

3

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

3

SPRING A, BRAKE ROD

95014-73100

$1.49

3

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

4

PIN A, BRAKE ROD JOINT This part replaces 43472-250-000.

95015-51000

Unavailable

4

PIN A, BRAKE ROD JOINT

95015-51000

Unavailable

5

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.83

5

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

6

PEDAL, BRAKE

46500-303-040

Unavailable

7

SPRING, BRAKE PEDAL This part replaces 46514-303-000.

46541-354-000

Unavailable

7

SPRING, BRAKE PEDAL

46541-354-000

Unavailable

8

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50500-303-030B.

50500-336-000B

Unavailable

8

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-336-000B

Unavailable

9

SPRING, MAIN STAND This part replaces 50522-303-000.

95014-71802

Unavailable

9

SPRING, MAIN STAND This part replaces 95014-71800.

95014-71802

Unavailable

9

SPRING, MAIN STAND This part replaces 95014-71801.

95014-71802

Unavailable

9

SPRING, MAIN STAND

95014-71802

Unavailable

10

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-303-000

Unavailable

12

SHAFT, MAIN STAND PIVOT This part replaces 50526-286-000.

50526-399-000

Unavailable

12

SHAFT, MAIN STAND PIVOT

50526-399-000

Unavailable

15

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

15

PIN, STEP BAR JOINT

50603-033-010

$3.30

16

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-306-000B

Unavailable

19

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

20

ARM, STEP (NOT AVAILABLE)

50630-303-000

Unavailable

22

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

23

RUBBER, STEP This part replaces 50661-056-000.

50661-110-000

$10.76

23

RUBBER, STEP

50661-110-000

$10.76

23

RUBBER, STEP This part replaces 50661-283-010.

50661-110-000

$10.76

23

RUBBER, STEP This part replaces 95011-23000.

50661-110-000

$10.76

24

COLLAR, STEP SETTING (NOT AVAILABLE)

50664-303-000

Unavailable

25

WASHER, FOOTPEG This part replaces 50712-024-000.

95015-91000

$1.31

25

WASHER, FOOTPEG

95015-91000

$1.31

26

WASHER, STEP ARM (NOT AVAILABLE)

50712-303-000

Unavailable

27

BRACKET B, PILLION STEP (NOT AVAILABLE) This part replaces 50713-286-000.

95015-72100

Unavailable

27

BRACKET B, PILLION STEP (NOT AVAILABLE)

95015-72100

Unavailable

29

PIN B, PILLION FOOTPEG This part replaces 50714-286-000.

95015-82000

$2.41

29

PIN B, PILLION FOOTPEG

95015-82000

$2.41

30

BAR B, PILLION STEP This part replaces 50715-283-000.

95015-62000

$30.68

30

BAR B, PILLION STEP

95015-62000

$30.68

31

RUBBER, PILLION STEP This part replaces 50731-024-000.

95011-31000

$7.16

31

RUBBER, PILLION STEP

95011-31000

$7.16

33

WASHER (17.5MM)

90512-303-000

$1.77

35

BOLT, HEX. (6X38) (NOT AVAILABLE)

92000-06038

Unavailable

36

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

36

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

39

BOLT, HEX. (10X20) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10020-0A.

92101-10020-0A

Unavailable

39

BOLT, HEX. (10X20) (SOURCE: VINTAGE PARTS INC.)

92101-10020-0A

Unavailable

41

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM)

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

43

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

43

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

43

WASHER, PLAIN (6MM)

94101-06800

$1.49

44

WASHER, PLAIN (8MM)

94101-08000

$1.49

45

WASHER, SPRING (6MM)

94111-06000

$1.49

46

WASHER, SPRING (8MM)

94111-08000

$1.49

47

WASHER, SPRING (8MM)

94111-10000

$1.49

48

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

48

PIN, COTTER (1.6X25)

94201-16250

$1.49

49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

49

PIN, COTTER (2.0X22)

94201-20220

$1.49

49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

49

PIN, COTTER (2.0X35)

94201-20350

$1.49

49

PIN, COTTER (2.0X22)

94201-29220

$1.49

50

PIN, COTTER (2.5MM)

94201-25300

$1.49
