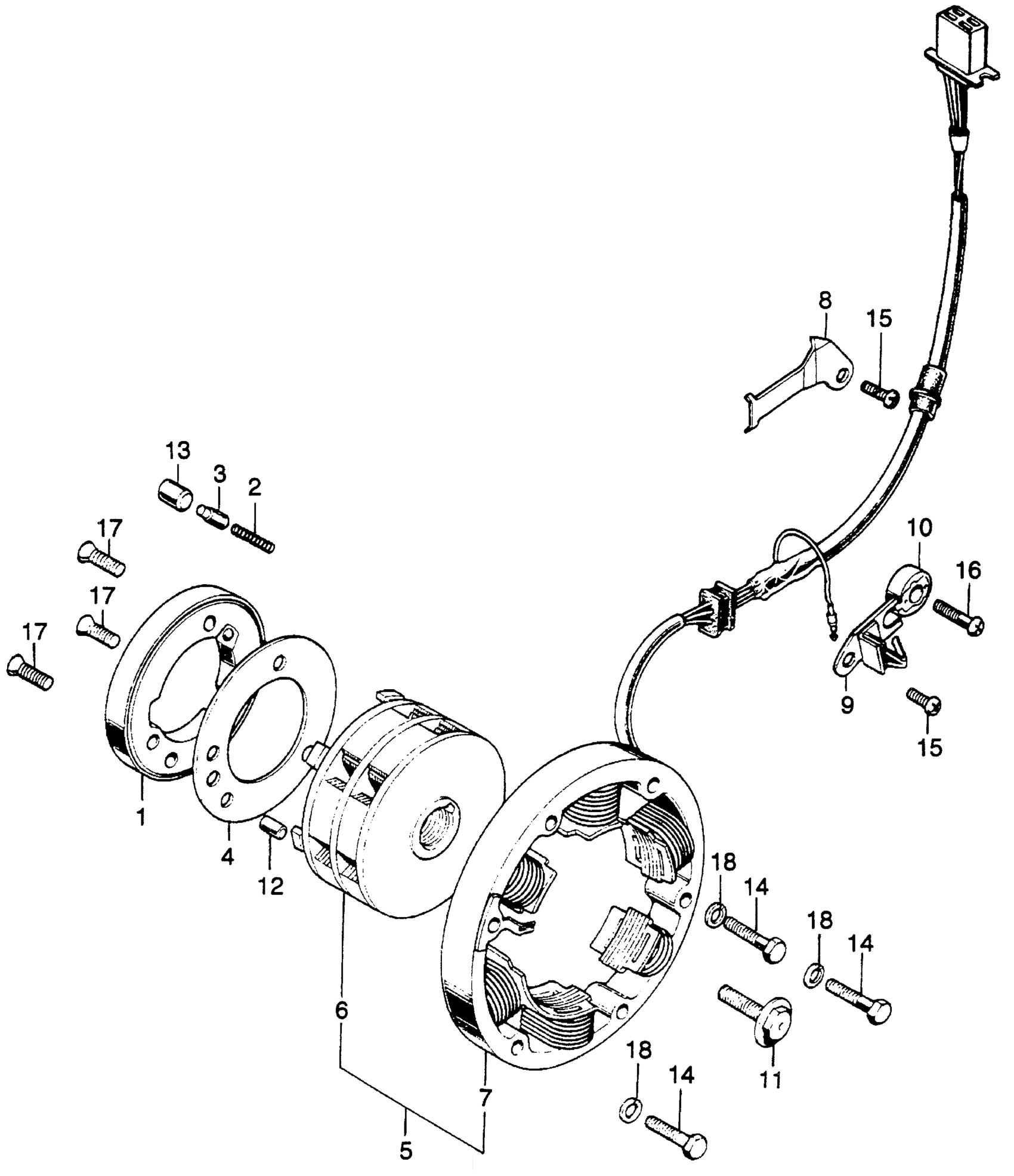

Honda CB175K4A MOTORCYCLE, JPN, VIN# CB175-5000001 ALTERNATOR + NEUTRAL SWITCH Diagram

#

Description
Price

1

CLUTCH, STARTER (OUTER)

28120-201-040

$87.06

2

SPRING, STARTER CLUTCH ROLLER

28125-253-020

$5.57

3

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.53

4

PLATE, STARTER CLUTCH SIDE

28128-253-030

$6.08

5

ALTERNATOR ASSY. (12V) (NOT AVAILABLE)

31100-306-005

Unavailable

6

ROTOR (NOT AVAILABLE)

31101-306-005

Unavailable

7

STATOR (NA USE ALT:31100-307-690) This part replaces 31102-306-005.

31102-307-690

Unavailable

7

STATOR (NA USE ALT:31100-307-690)

31102-307-690

Unavailable

8

CLIP, ALTERNATOR WIRE (NOT AVAILABLE)

32913-302-000

Unavailable

9

STATOR, NEUTRAL SWITCH (NOT AVAILABLE)

35752-216-003

Unavailable

10

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-286-003

Unavailable

11

BOLT, ROTOR SETTING (NOT AVAILABLE)

90014-286-000

Unavailable

12

PIN, KNOCK (6X17.5)

90701-250-000

$2.70

12

PIN, KNOCK (6X17.5) (NOT AVAILABLE)

90704-259-000

Unavailable

13

ROLLER (10.2X9.5)

91101-253-020

$3.98

14

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

14

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

15

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

15

SCREW, PAN (6X12)

93500-06012-0A

$1.49

15

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

16

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

16

SCREW, PAN (6X20)

93500-06020-0A

$1.49

17

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

17

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49
