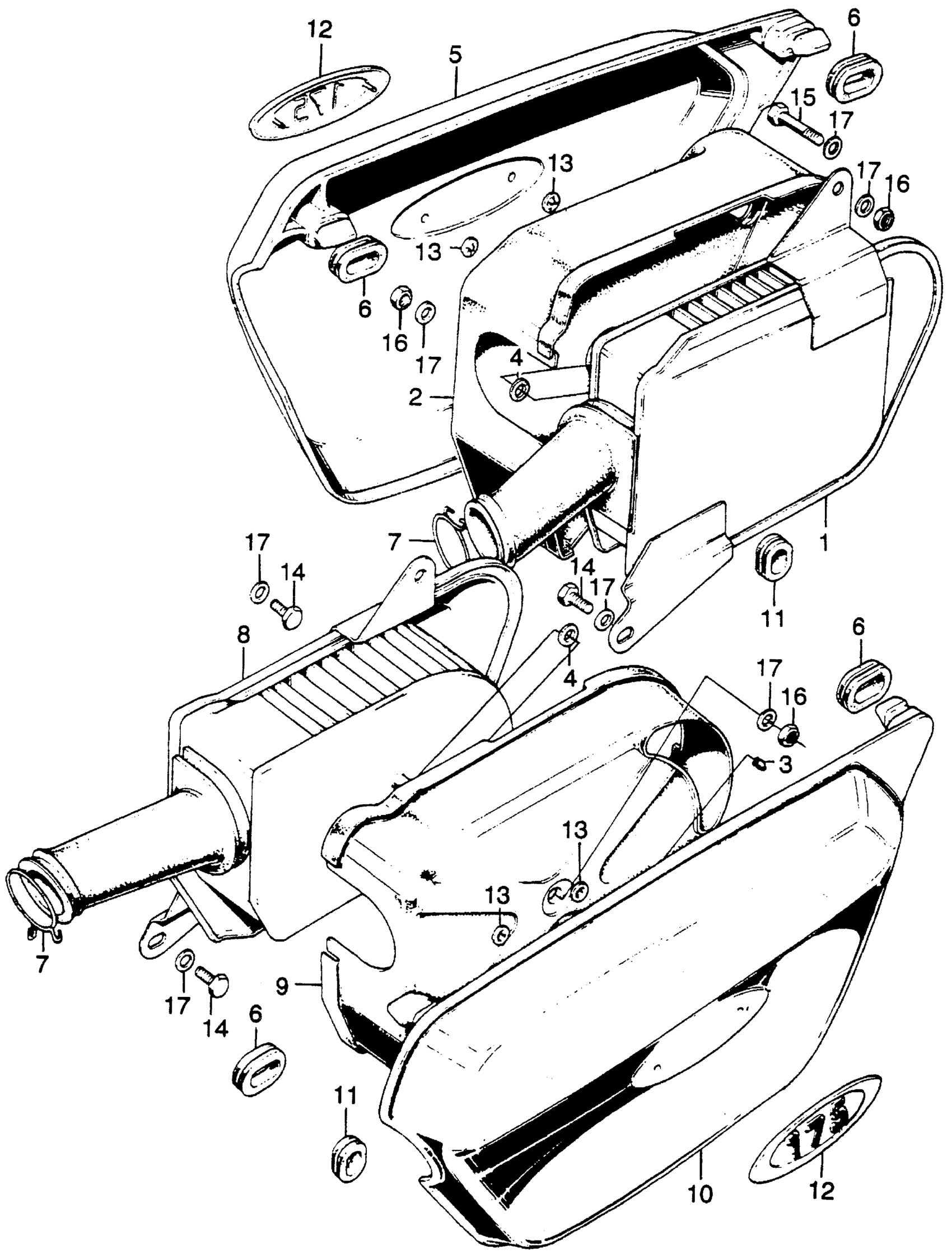

Honda CB175K4A MOTORCYCLE, JPN, VIN# CB175-5000001 AIR CLEANER + AIR CLEANER CASE K4-K5 Diagram

#

Description
Price

1

AIR CLEANER, R.

17210-315-005

Unavailable

2

CASE, R. AIR CLEANER (NOT AVAILABLE)

17214-315-000

Unavailable

3

STOPPER, ELEMENT CASE (NOT AVAILABLE)

17216-316-000

Unavailable

4

RUBBER, AIR CLEANER SEAL

17217-315-000

Unavailable

5

COVER, R. AIR CLEANER *YR1C* (CANDY TOPAZ ORANGE) (NOT AVAILABLE)

17231-315-000DD

Unavailable

5

COVER, R. AIR CLEANER *PB12M* (STRATO BLUE METALLIC) (NOT AVAILABLE)

17231-315-000FB

Unavailable

5

COVER, R. AIR CLEANER *Y2M* (POPPY YELLOW METALLIC) (NOT AVAILABLE)

17231-315-000FS

Unavailable

6

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

7

CLIP, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)

17255-315-670

Unavailable

8

AIR CLEANER, L. (NOT AVAILABLE)

17310-315-005

Unavailable

9

CASE, L. AIR CLEANER (NOT AVAILABLE)

17313-315-000

Unavailable

10

COVER, L. AIR CLEANER *YR1C* (CANDY TOPAZ ORANGE) (NOT AVAILABLE)

17331-316-000DD

Unavailable

10

COVER, L. AIR CLEANER *PB12M* (STRATO BLUE METALLIC) (NOT AVAILABLE)

17331-316-000FB

Unavailable

10

COVER, L. AIR CLEANER *Y2M* (POPPY YELLOW METALLIC) (NOT AVAILABLE)

17331-316-000FS

Unavailable

11

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

12

EMBLEM, AIR CLEANER COVER (NOT AVAILABLE)

87125-315-670

Unavailable

13

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

13

NUT, SPEED (3MM)

90313-567-000

$3.97

14

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

15

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

15

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

15

BOLT, HEX. (6X35)

92201-06035-0A

$1.75

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49
