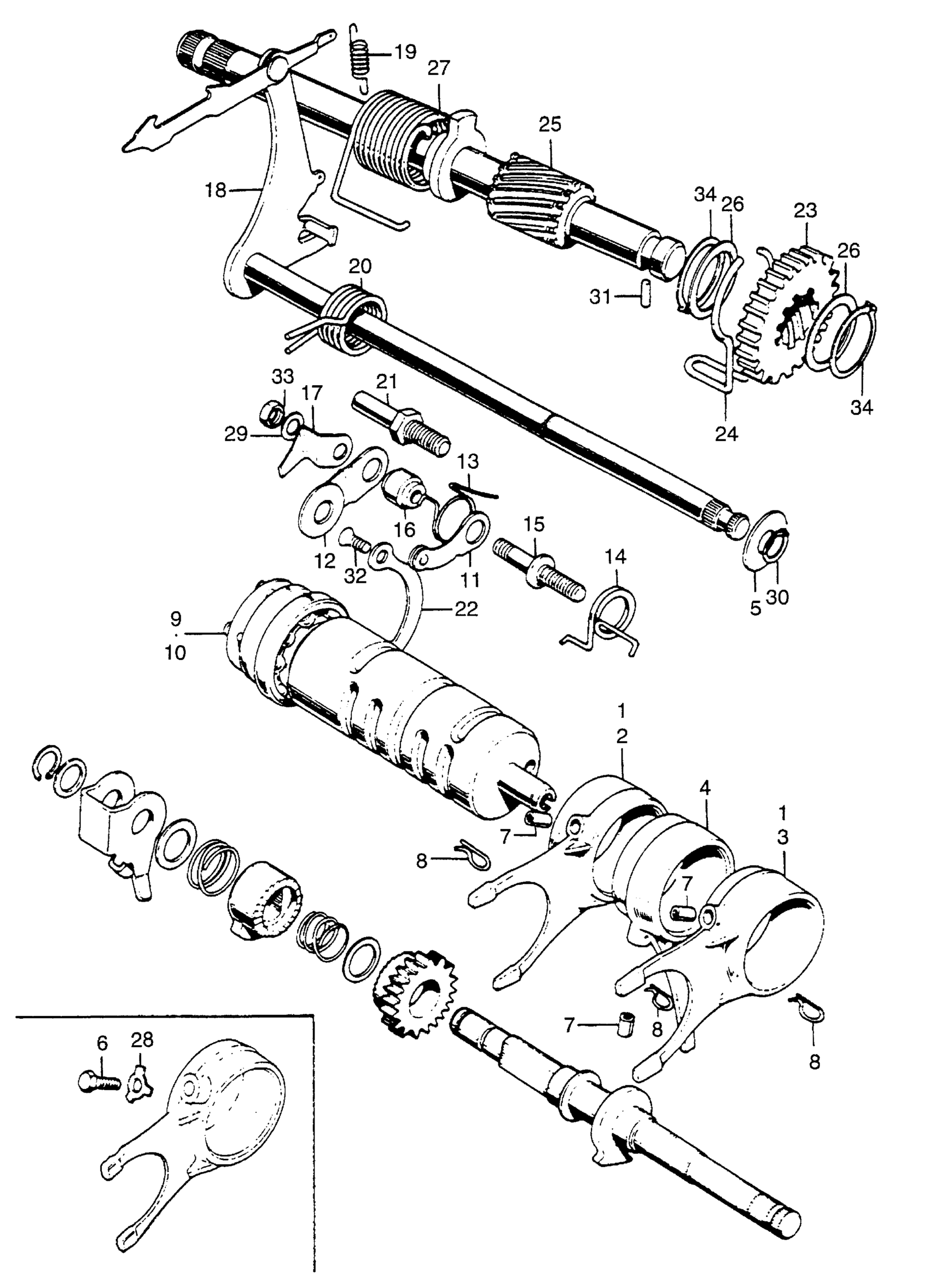

Honda CB175K3A MOTORCYCLE, JPN, VIN# CB175-4000001 SHIFT DRUM + KICK STARTER SPINDLE Diagram

#

Description
Price

2

FORK, R. GEARSHIFT This part replaces 24211-235-000.

24211-354-000

Unavailable

2

FORK, R. GEARSHIFT

24211-354-000

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-235-000

Unavailable

4

FORK, CENTER GEARSHIFT

24231-235-000

Unavailable

5

STOPPER, SIDE GEARSHIFT (NOT AVAILABLE)

24261-200-000

Unavailable

7

PIN, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24261-306-000

Unavailable

8

CLIP, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24263-283-000

Unavailable

10

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-306-000

Unavailable

11

ARM, SHIFT DRUM STOPPER

24420-302-000

Unavailable

12

STOPPER, SHIFT DRUM (NOT AVAILABLE) This part replaces 24430-302-000.

24430-302-010

Unavailable

12

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24430-302-010

Unavailable

13

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-302-000

Unavailable

14

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24436-302-000

Unavailable

15

PIN, SHIFT DRUM STOPPER (NOT AVAILABLE)

24437-302-000

Unavailable

16

COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE)

24438-302-000

$5.15

17

PLATE, STOPPER ARM (NOT AVAILABLE)

24439-302-000

Unavailable

18

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-302-010

Unavailable

19

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

20

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-235-000

Unavailable

21

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-200-000

Unavailable

22

PLATE, BEARING SET (NOT AVAILABLE)

24710-235-000

Unavailable

23

PINION, KICK STARTER (NOT AVAILABLE)

28211-235-020

Unavailable

24

SPRING, FRICTION (NOT AVAILABLE)

28239-235-000

Unavailable

25

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-235-000

Unavailable

26

WASHER, KICK STARTER SPINDLE (NOT AVAILABLE)

28252-235-000

Unavailable

27

SPRING, KICK STARTER (NOT AVAILABLE)

28261-235-000

Unavailable

29

WASHER, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

90417-302-000

Unavailable

30

CIRCLIP (12MM) (NOT AVAILABLE)

90603-200-000

Unavailable

31

PIN, KNOCK (4X15) (NOT AVAILABLE)

90701-216-000

Unavailable

32

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

32

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

33

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM)

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

34

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49
