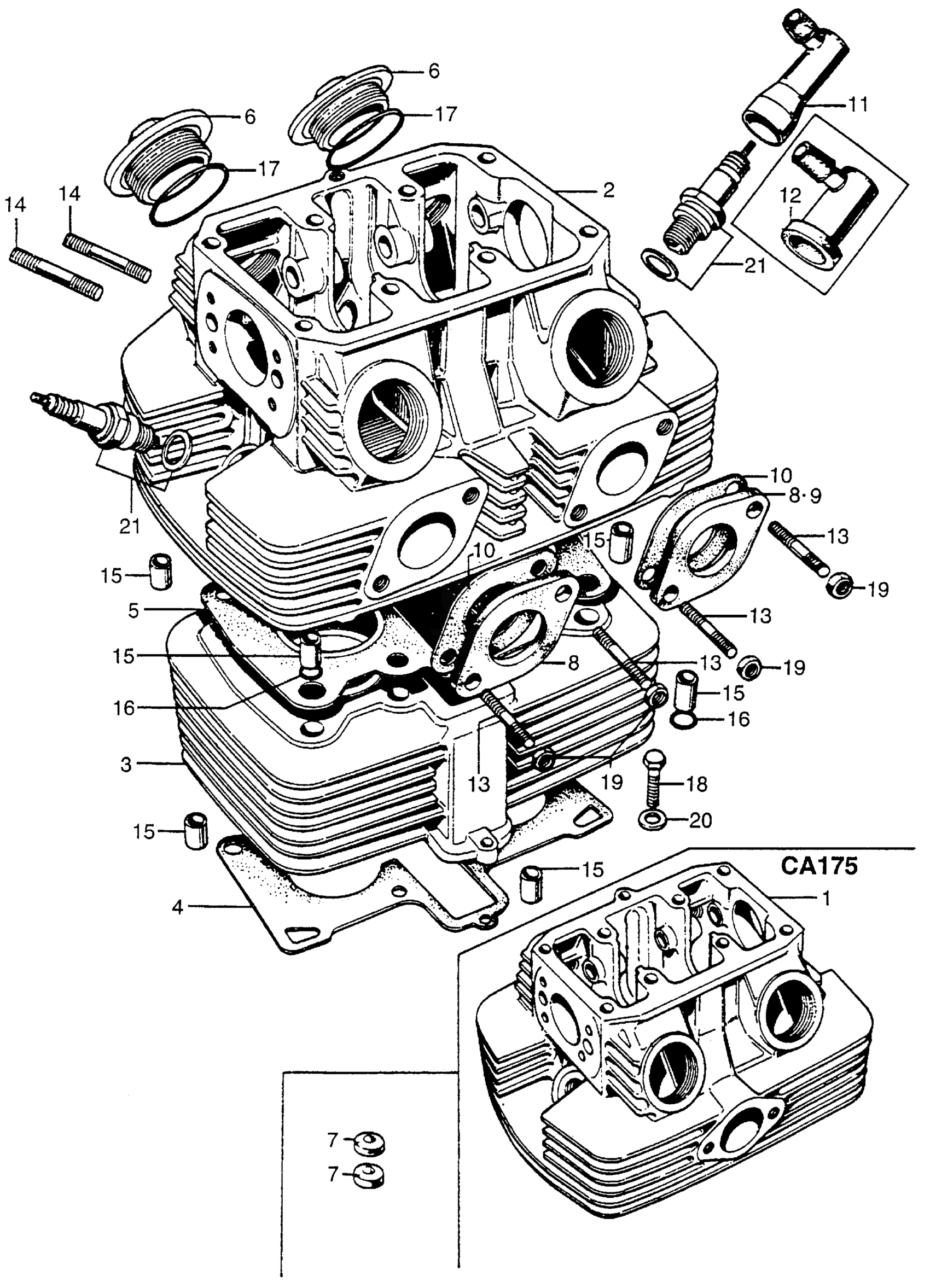

Honda CB175K3A MOTORCYCLE, JPN, VIN# CB175-4000001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

2

CYLINDER HEAD

12020-306-030

Unavailable

3

CYLINDER

12100-302-000

Unavailable

4

GASKET, CYLINDER This part replaces 12191-235-010.

12191-235-306

Unavailable

5

GASKET, CYL HD This part replaces 12251-235-000.

12251-235-405

Unavailable

6

CAP, VALVE ADJ.

12361-246-000

Unavailable

7

RUBBER, INSERT

12620-286-000

$5.85

8

INSULATOR, CARB This part replaces 16211-304-000.

16211-304-306

Unavailable

10

GASKET This part replaces 16229-235-000.

16229-235-306

Unavailable

11

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

11

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

11

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

13

BOLT, STUD (6X40) (NOT AVAILABLE)

90041-259-000

Unavailable

14

BOLT, STUD (6X50) This part replaces 90063-235-000.

92700-06050-0E

$1.54

14

BOLT, STUD (6X50)

92700-06050-0E

$1.54

15

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

15

PIN A, DOWEL (10X14)

94301-10140

$2.28

16

O-RING (10X1.6)

91301-200-000

$3.01

17

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-790.

91301-428-003

$2.21

17

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-791.

91301-428-003

$2.21

17

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

17

O-RING (35.5X3) (NOK) This part replaces 91302-216-000.

91301-428-003

$2.21

17

O-RING (35.5X3) (NOK) This part replaces 91302-500-000.

91301-428-003

$2.21

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58714.

98066-58717

$2.44

21

SPARK PLUG (D8HA) (NGK)

98066-58717

$2.44

21

SPARK PLUG (X24FS-U) (DENSO) This part replaces 98066-58723.

98066-58727

Unavailable

21

SPARK PLUG (X24FS-U) (DENSO)

98066-58727

Unavailable
