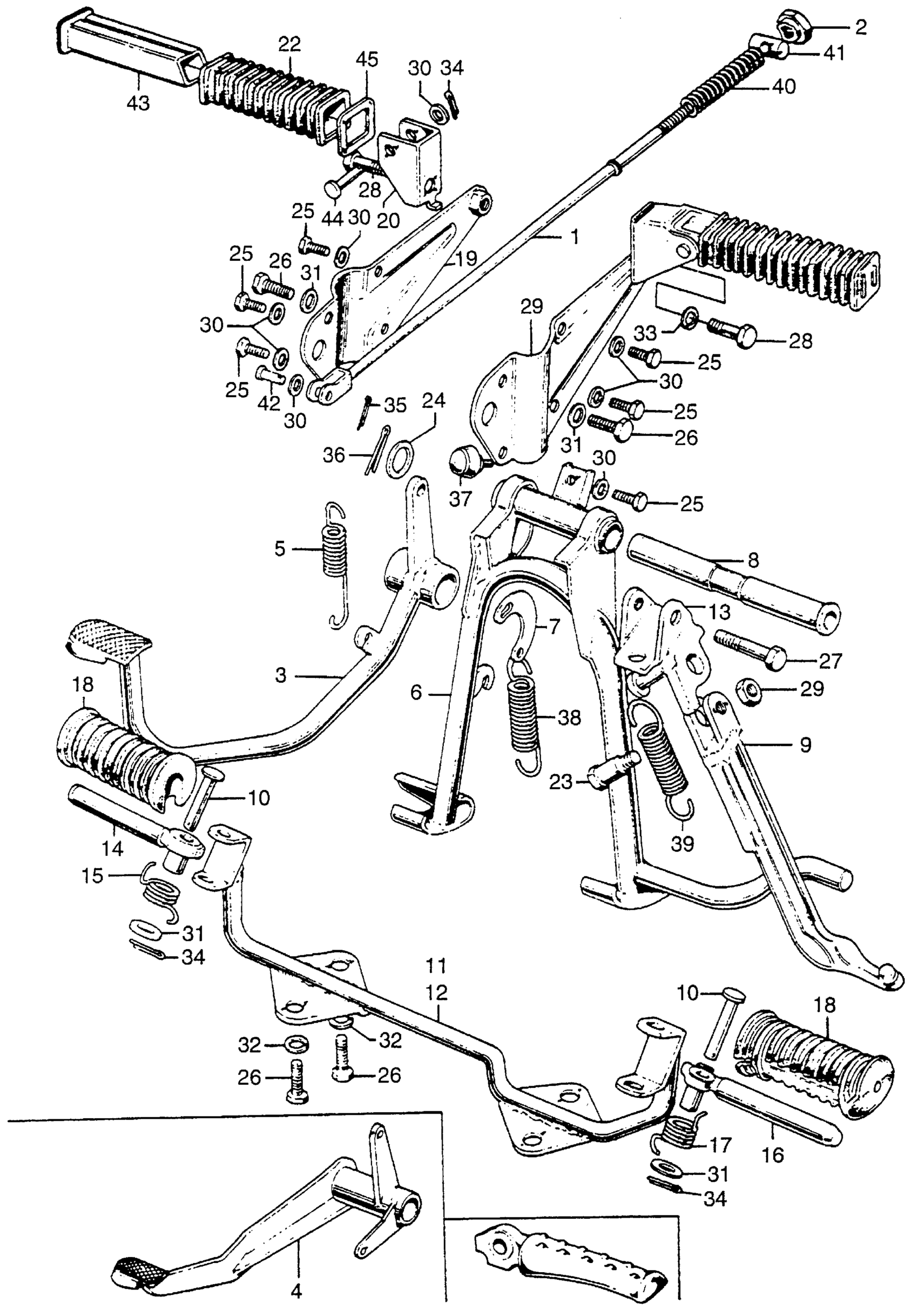

Honda CB175K3A MOTORCYCLE, JPN, VIN# CB175-4000001 CB/CL175STAND + STEP Diagram

#

Description
Price

2

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.78

2

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78

3

PEDAL, BRAKE

46500-303-040

Unavailable

5

SPRING, BRAKE PEDAL This part replaces 46514-303-000.

46541-354-000

Unavailable

5

SPRING, BRAKE PEDAL

46541-354-000

Unavailable

6

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50500-303-030B.

50500-336-000B

Unavailable

6

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-336-000B

Unavailable

7

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-205-000

Unavailable

8

SHAFT, MAIN STAND PIVOT This part replaces 50526-286-000.

50526-399-000

Unavailable

8

SHAFT, MAIN STAND PIVOT

50526-399-000

Unavailable

10

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.06

10

PIN, STEP BAR JOINT

50603-033-010

$3.06

11

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-306-000B

Unavailable

14

ARM, R. STEP *NH1* (BLACK)

50616-283-020B

Unavailable

15

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

16

ARM, L. STEP *NH1* (BLACK)

50642-283-020B

$29.53

17

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

18

RUBBER, STEP This part replaces 50661-056-000.

50661-110-000

$9.88

18

RUBBER, STEP

50661-110-000

$9.88

18

RUBBER, STEP This part replaces 50661-283-010.

50661-110-000

$9.88

18

RUBBER, STEP This part replaces 95011-23000.

50661-110-000

$9.88

20

BRACKET B, PILLION STEP (NOT AVAILABLE) This part replaces 50713-286-000.

95015-72100

Unavailable

20

BRACKET B, PILLION STEP (NOT AVAILABLE)

95015-72100

Unavailable

22

RUBBER, PILLION STEP This part replaces 50731-024-000.

95011-31000

$6.87

22

RUBBER, PILLION STEP

95011-31000

$6.87

24

WASHER (17.5MM)

90512-303-000

$1.63

25

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.34

25

BOLT, HEX. (6X14)

92101-06014-0A

$1.34

26

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.37

26

BOLT, HEX. (8X16)

92101-08016-0A

$1.37

28

BOLT, HEX. (10X25) This part replaces 92000-10025-0A.

92101-10025-0A

$2.78

28

BOLT, HEX. (10X25)

92101-10025-0A

$2.78

29

NUT, HEX. (10MM)

94002-10000-0S

$4.12

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

30

WASHER, PLAIN (6MM)

94101-06800

Unavailable

31

WASHER, PLAIN (8MM)

94101-08000

$0.76

32

WASHER, SPRING (8MM)

94111-08000

$0.91

33

WASHER, SPRING (8MM)

94111-10000

$1.24

34

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.96

34

PIN, COTTER (1.6X25)

94201-16250

$0.96

35

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$0.96

35

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.96

35

PIN, COTTER (2.0X22)

94201-20220

$0.96

35

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.96

35

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.96

35

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.96

35

PIN, COTTER (2.0X35)

94201-20350

$0.96

35

PIN, COTTER (2.0X22)

94201-29220

$0.96

36

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

36

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

36

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

36

PIN, COTTER (3.0X45)

94201-30450

$0.96

37

RUBBER A, STAND STOPPER

95011-61000

$1.15

38

SPRING, MAIN STAND This part replaces 95014-71801.

95014-71802

Unavailable

38

SPRING, MAIN STAND

95014-71802

Unavailable

40

SPRING A, BRAKE ROD

95014-73100

$1.19

40

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.19

41

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$0.87

41

JOINT, BRAKE ARM

95015-32001

$0.87

42

PIN A, BRAKE ROD JOINT

95015-51000

Unavailable

43

BAR B, PILLION STEP

95015-62000

$30.31

44

PIN B, PILLION FOOTPEG

95015-82000

$2.22

45

WASHER, FOOTPEG

95015-91000

$1.21
