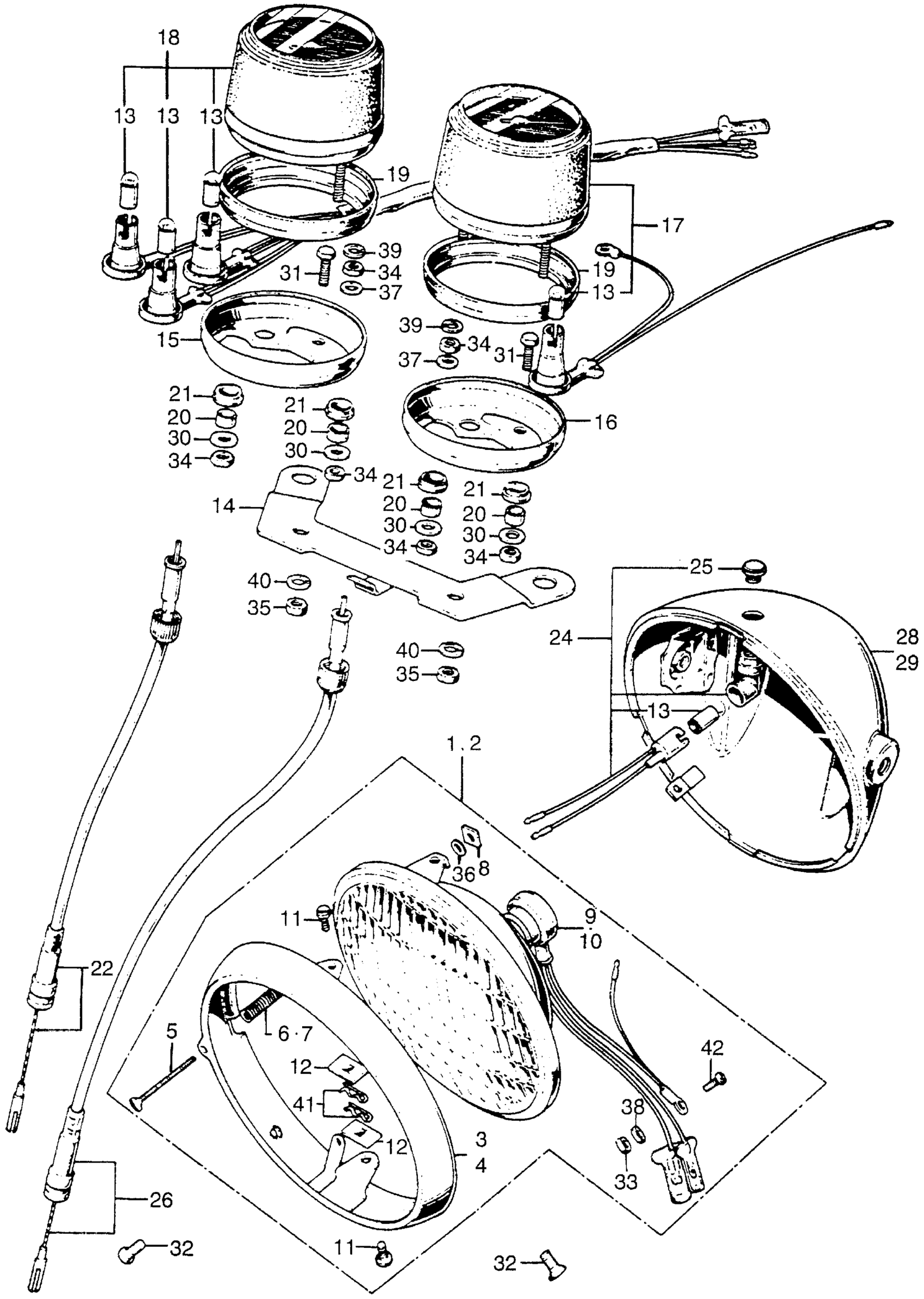

Honda CB175K3A MOTORCYCLE, JPN, VIN# CB175-4000001 CB/CL175HEADLIGHT + SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-286-672

Unavailable

3

RIM, HEADLIGHT

33101-286-670

Unavailable

5

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) (NOT AVAILABLE)

33103-292-003

$4.66

6

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

8

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

8

NUT, HEADLIGHT BEAM ADJ. This part replaces 33117-292-003.

33117-001-023

$2.39

9

HEADLIGHT UNIT (12V 35/25W)

33120-292-673

Unavailable

11

SCREW, UNIT HOLDER

33125-292-670

Unavailable

12

NUT, UNIT HOLDER This part replaces 33128-200-030.

33128-292-670

$2.94

12

NUT, UNIT HOLDER

33128-292-670

$2.94

13

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

14

PLATE, METER SET (NOT AVAILABLE)

37211-307-670

Unavailable

15

RING, R. METER SET

37212-307-670

Unavailable

16

RING, L. METER SET

37213-307-670

Unavailable

17

SPEEDOMETER ASSY. (NOT AVAILABLE)

37230-334-670

Unavailable

18

TACHOMETER ASSY.

37240-334-670

Unavailable

19

RUBBER, METER

37242-307-670

Unavailable

20

COLLAR, METER SETTING

37243-307-670

$2.44

21

RUBBER, METER SETTING

37244-307-670

$2.67

22

CABLE ASSY., TACHOMETER

37260-KB7-010

Unavailable

22

CABLE ASSY., TACHOMETER This part replaces 37260-MG1-000.

37260-KB7-010

Unavailable

22

CABLE ASSY., TACHOMETER This part replaces 37260-296-000.

37260-KB7-010

Unavailable

22

CABLE ASSY., TACHOMETER This part replaces 37260-362-000.

37260-KB7-010

Unavailable

22

CABLE ASSY., TACHOMETER This part replaces 37260-438-000.

37260-KB7-010

Unavailable

24

LAMP ASSY., BEAM PILOT (STANLEY) (NOT AVAILABLE)

37550-286-003

Unavailable

25

LENS, BEAM PILOT (NOT AVAILABLE)

37551-044-670

Unavailable

26

CABLE ASSY., SPEEDOMETER This part replaces 44830-307-000.

44830-389-770

Unavailable

26

CABLE ASSY., SPEEDOMETER

44830-389-770

Unavailable

28

CASE, HEADLIGHT (NOT AVAILABLE)

61301-286-670Z

Unavailable

28

CASE, HEADLIGHT *PB2C* (CANDY BLUE GREEN) (NOT AVAILABLE)

61301-292-020AZ

Unavailable

30

WASHER (6.5X20)

90545-292-000

$1.77

31

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

31

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

32

SCREW, OVAL (5X8)

93700-05008-0A

$1.49

33

NUT, HEX. (3MM)

94001-03000-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM)

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (8MM)

94001-08000-0S

$1.49

36

WASHER, PLAIN (4MM)

94101-04000

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, SPRING (3MM)

94111-03000

$1.49

39

WASHER, SPRING (6MM)

94111-06000

$1.49

40

WASHER, SPRING (8MM)

94111-08000

$1.49

41

PIN, LOCK (5MM)

94251-05000

$1.49

42

SCREW, HOLLOW PAN (3X6) (NOT AVAILABLE)

99500-03006-0A

Unavailable
