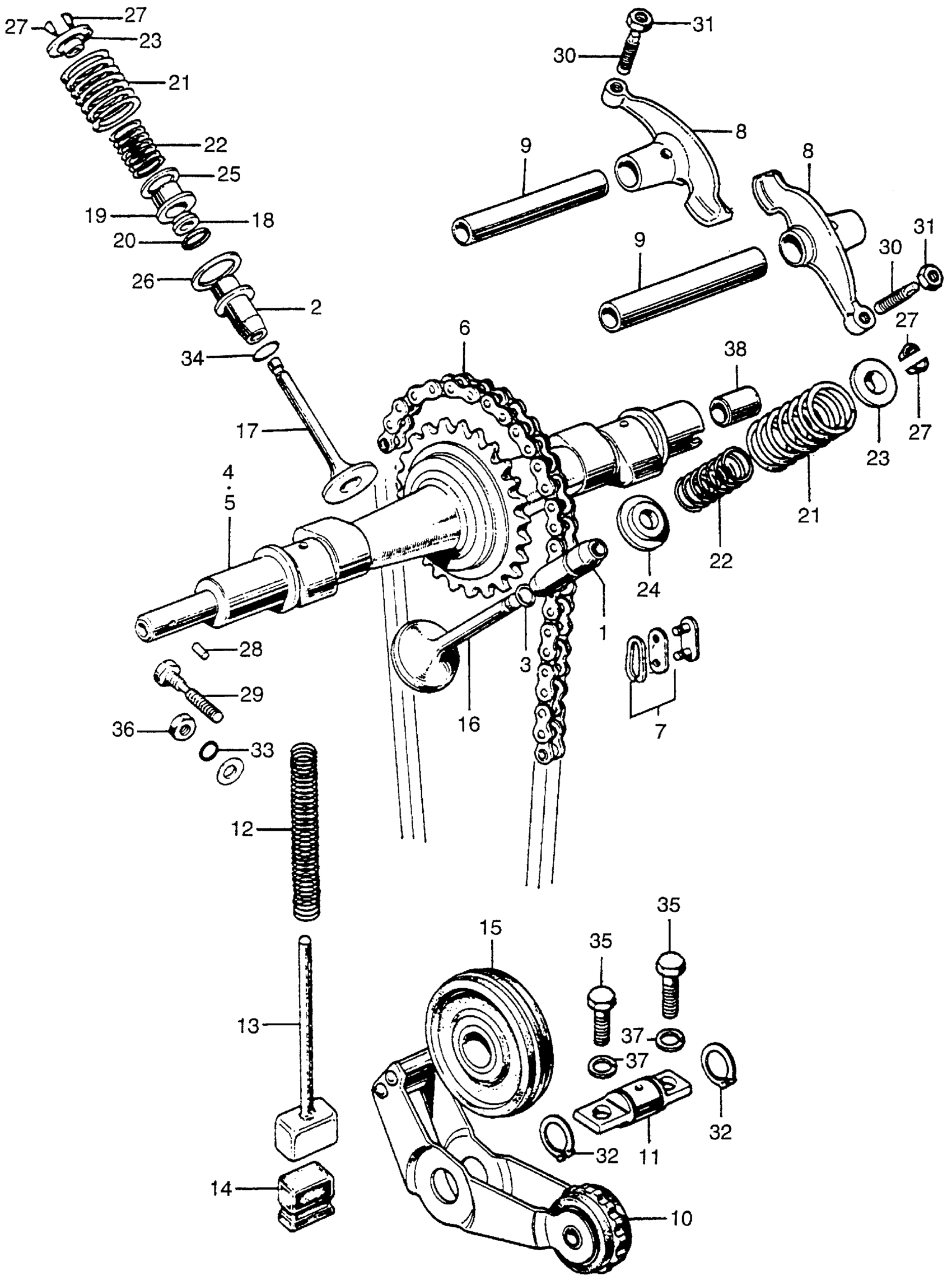

Honda CB175K3A MOTORCYCLE, JPN, VIN# CB175-4000001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

GUIDE, VALVE (NOT AVAILABLE)

12021-216-000

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-235-690

Unavailable

3

CLIP, VALVE GUIDE (NOT AVAILABLE)

12253-200-300

Unavailable

5

CAMSHAFT (NOT AVAILABLE)

14100-306-030

Unavailable

6

CHAIN, CAM (DK219H-82L) (NOT AVAILABLE)

14410-235-003

Unavailable

7

JOINT, CAM CHAIN (DK219)

14411-235-003

Unavailable

8

ARM, VALVE ROCKER

14431-216-010

Unavailable

9

SHAFT, ROCKER ARM (NOT AVAILABLE)

14451-216-010

Unavailable

10

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14501-216-000

Unavailable

11

PIN, CAM CHAIN GUIDE ROLLER (NOT AVAILABLE)

14503-216-000

Unavailable

12

SPRING, CAM CHAIN TENSIONER

14541-235-000

Unavailable

13

BAR, TENSIONER (NOT AVAILABLE)

14550-216-020

Unavailable

14

RUBBER, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14556-216-020

Unavailable

15

ROLLER, CAM CHAIN GUIDE (NOT AVAILABLE)

14610-235-000

Unavailable

16

VALVE, IN. (NOT AVAILABLE)

14711-235-010

Unavailable

17

VALVE, EX.

14721-302-010

Unavailable

18

SEAL, VALVE STEM This part replaces 14730-028-000.

14730-028-013

$9.71

18

SEAL, VALVE STEM

14730-028-013

$9.71

19

CAP, VALVE STEM SEAL

14731-028-000

$4.35

19

CAP, VALVE STEM SEAL This part replaces 14731-235-690.

14731-028-000

$4.35

20

RUBBER, STEM SEAL SUCTION (NOT AVAILABLE)

14733-230-000

Unavailable

21

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-235-010

Unavailable

22

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-235-010

Unavailable

23

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-011-000

Unavailable

24

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-235-000

Unavailable

25

SEAL (INNER) (NOT AVAILABLE)

14776-235-690

Unavailable

26

SEAL B, VALVE SPRING (NOT AVAILABLE)

14777-235-690

Unavailable

27

COTTER, VALVE

14781-235-000

$2.84

28

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

29

BOLT, TENSIONER SETTING (NOT AVAILABLE)

90009-235-000

Unavailable

30

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.75

30

SCREW, TAPPET ADJ.

90012-333-000

$2.75

31

NUT, TAPPET ADJ.

90206-KM3-000

$1.49

31

NUT, TAPPET ADJUSTING This part replaces 90206-246-000.

90206-KM3-000

$1.49

32

CIRCLIP (12MM) (NOT AVAILABLE)

90603-200-000

Unavailable

33

O-RING (3.4X1.2)

91303-216-000

Unavailable

34

O-RING (7.3X2.2) (NOK) This part replaces 91301-PD6-003.

91301-P2F-A01

$2.97

34

O-RING (7.3X2.2) (NOK) This part replaces 91301-PM7-003.

91301-P2F-A01

$2.97

34

O-RING (7.3X2.2) (NOK) This part replaces 91305-028-000.

91301-P2F-A01

$2.97

35

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

35

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

36

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

36

NUT, HEX. (5MM)

94001-05000-0S

$2.74

37

WASHER, SPRING (6MM)

94111-06000

$1.49

38

PIN, KNOCK (12X16)

94301-12160

$2.27
