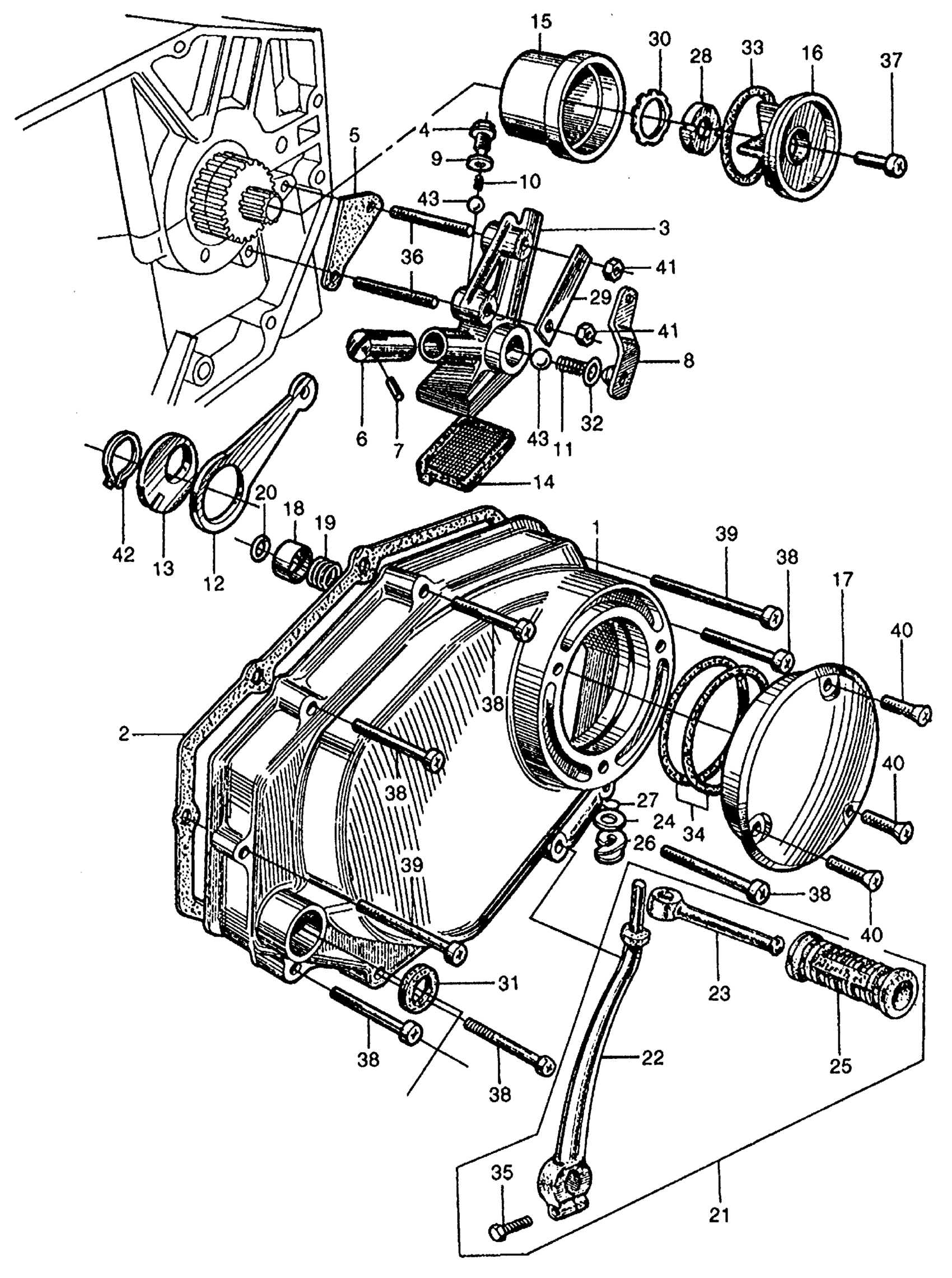

Honda CB160A MOTORCYCLE, JPN, VIN# CB160-9000001 OIL PUMP + RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-216-000

Unavailable

2

GASKET, R. This part replaces 11394-216-000.

11394-216-306

Unavailable

3

BODY, OIL PUMP (NOT AVAILABLE)

15210-216-000

Unavailable

4

BOLT, PUMP SUCTION VALVE (NOT AVAILABLE)

15213-216-000

Unavailable

5

GASKET PUMP, BODY (NOT AVAILABLE)

15219-216-000

Unavailable

6

PLUNGER, PUMP (NOT AVAILABLE)

15231-205-000

Unavailable

7

PIN, PUMP PLUNGER (NOT AVAILABLE)

15235-205-000

Unavailable

8

GUIDE, PUMP OUTLET VALVE

15260-216-000

Unavailable

9

GASKET, SUCTION VALVE BOLT (NOT AVAILABLE)

15266-200-000

Unavailable

10

SPRING, SUCTION VALVE (NOT AVAILABLE)

15271-216-000

Unavailable

11

SPRING, VALVE (NOT AVAILABLE)

15272-216-000

Unavailable

12

ROD, PUMP (NOT AVAILABLE) This part replaces 15281-216-000.

15281-216-010

Unavailable

12

ROD, PUMP (NOT AVAILABLE)

15281-216-010

Unavailable

13

WASHER, SIDE PUMP ROD

15292-216-000

Unavailable

14

SCREEN, PUMP PLUNGER (NOT AVAILABLE)

15421-216-000

Unavailable

15

ROTOR, OIL FILTER (NOT AVAILABLE) | Use up to Engine SN 1091963

15441-216-000

Unavailable

15

ROTOR, OIL FILTER | Use from Engine SN 1091964

15441-216-010

Unavailable

16

CAP, OIL FILTER (NOT AVAILABLE)

15450-216-000

Unavailable

17

COVER, OIL FILTER (NOT AVAILABLE)

15481-216-000

Unavailable

18

METAL, OIL GUIDE (NOT AVAILABLE)

15594-216-000

Unavailable

19

SPRING, OIL GUIDE METAL (NOT AVAILABLE)

15595-216-000

Unavailable

20

RING, OIL GUIDE METAL STOPPER (NOT AVAILABLE) This part replaces 15597-216-000.

15597-286-000

Unavailable

20

RING, OIL GUIDE METAL STOPPER (NOT AVAILABLE)

15597-286-000

Unavailable

21

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-216-000

Unavailable

22

ARM, KICK STARTER (NOT AVAILABLE)

28301-216-000

Unavailable

23

PEDAL, STARTER (NOT AVAILABLE)

28302-200-000

Unavailable

24

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

25

RUBBER B, KICK STARTER This part replaces 28311-200-000.

95011-52000

$4.12

25

RUBBER B, KICK STARTER

95011-52000

$4.12

26

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

27

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

28

NUT, LOCK (16MM)

90231-KCS-651

$4.21

28

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

29

WASHER, LOCK OIL PUMP (NOT AVAILABLE)

90404-216-000

Unavailable

30

WASHER, LOCK (16MM) (NOT AVAILABLE) | Use up to Engine SN 9001775 This part replaces 90431-216-000.

90431-216-010

Unavailable

30

WASHER, LOCK (16MM) (NOT AVAILABLE) | Use up to Engine SN 9001775

90431-216-010

Unavailable

31

OIL SEAL (14X24X5)

91202-KFL-841

$5.04

31

OIL SEAL (14X24X5) This part replaces 91202-216-000.

91202-KFL-841

$5.04

31

OIL SEAL (14X24X5) This part replaces 91202-216-003.

91202-KFL-841

$5.04

31

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$5.04

31

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

31

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

31

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

31

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$5.04

32

O-RING (11.5X2)

91304-216-000

$2.11

33

O-RING (46X2) This part replaces 91305-216-000.

91305-426-003

$7.19

33

O-RING (46X2)

91305-426-003

$7.19

34

O-RING (64.5X3) (ARAI) This part replaces 91305-634-961.

91310-MG7-003

$9.98

34

O-RING (64.5X3) (ARAI) This part replaces 91309-700-000.

91310-MG7-003

$9.98

34

O-RING (64.5X3) (ARAI)

91310-MG7-003

$9.98

35

BOLT, HEX. (6X25) This part replaces 92000-06024.

92101-06025-0A

$1.62

35

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

35

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.62

35

BOLT, HEX. (6X25)

92000-06025-00

Unavailable

35

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

35

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

36

BOLT 2, STUD (6X25) This part replaces 92700-06038.

92900-06025-0B

$1.73

36

BOLT 2, STUD (6X25) This part replaces 92705-06037.

92900-06025-0B

$1.73

36

BOLT, STUD (6X25)

92900-06025-0B

$1.73

37

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

37

SCREW, PAN (6X20)

93500-06020-0A

$1.49

38

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

38

SCREW, PAN (6X32)

93500-06032-0A

$1.49

39

SCREW, PAN (6X42) (NOT AVAILABLE)

93500-06042

Unavailable

40

SCREW, OVAL (6X40) This part replaces 93700-06040.

93700-06040-0A

$1.49

40

SCREW, OVAL (6X40)

93700-06040-0A

$1.49

41

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

41

NUT, HEX. (6MM)

94001-06200-0S

$1.49

41

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

42

CIRCLIP (OUTER) (26MM)

94510-26000

Unavailable

43

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
