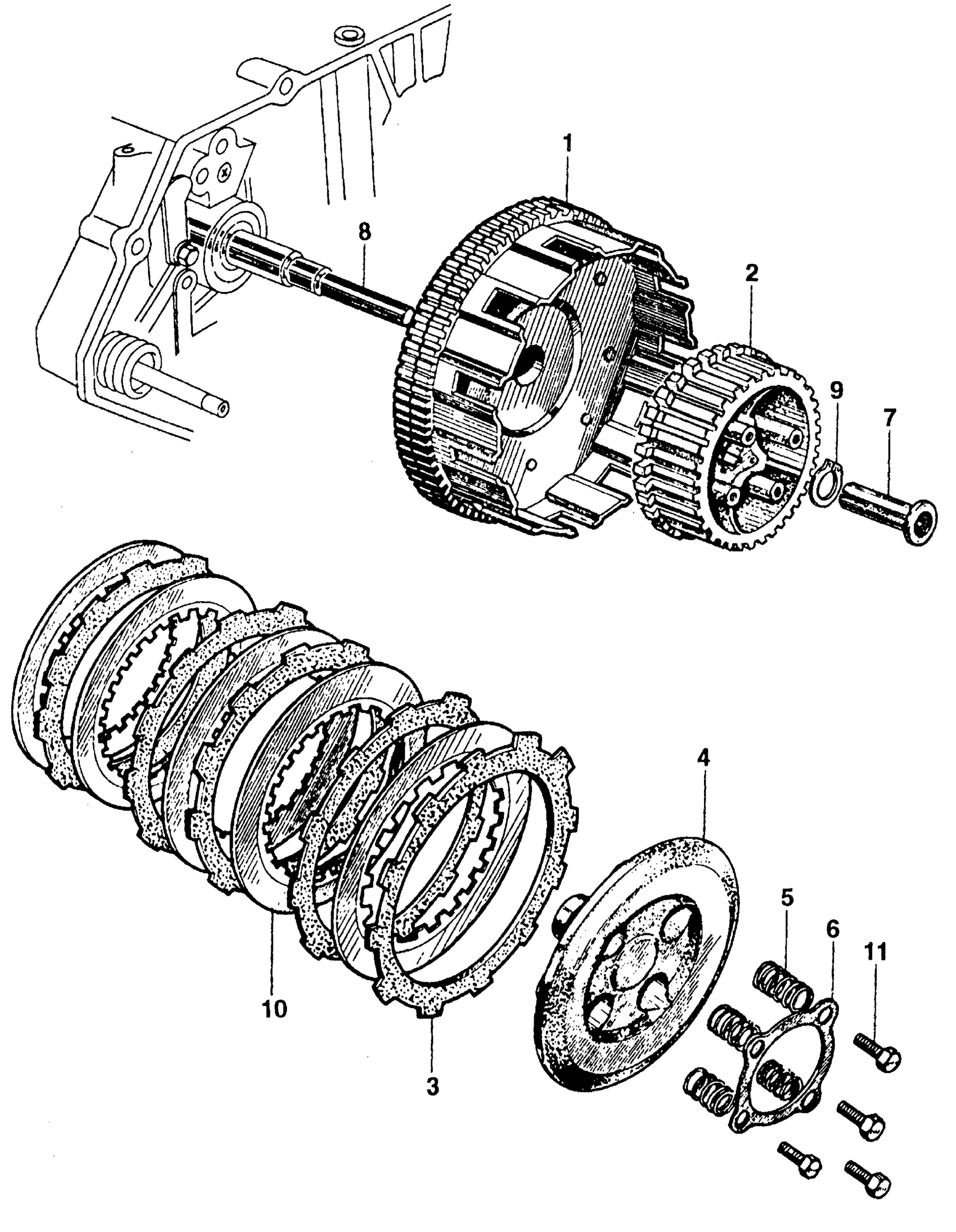

Honda CB160A MOTORCYCLE, JPN, VIN# CB160-9000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 1007560

22100-217-000

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 1007559 This part replaces 22100-216-000.

22100-217-000

Unavailable

2

CENTER, CLUTCH (24T) (NOT AVAILABLE) | Use up to Engine SN 1091953

22120-216-000

$48.34

2

CLUTCH, CENTER | Use from Engine SN 1091954

22120-216-010

Unavailable

3

DISK, CLUTCH FRICTION This part replaces 22201-217-600.

22201-240-000

Unavailable

3

DISK, CLUTCH FRICTION (NOT AVAILABLE)

22201-240-000

Unavailable

4

PLATE, CLUTCH PRESSURE (NOT AVAILABLE) | Use from Engine SN 1075578

22351-216-010

Unavailable

4

PLATE, CLUTCH PRESSURE (NOT AVAILABLE) | Use up to Engine SN 1075577

22351-216-000

Unavailable

5

SPRING, CLUTCH This part replaces 22401-216-600.

22401-362-000

Unavailable

5

SPRING, CLUTCH

22401-362-000

Unavailable

6

PLATE, CLUTCH SPRING RETAINER (NOT AVAILABLE) This part replaces 22408-200-000.

22408-230-000

Unavailable

6

PLATE, CLUTCH SPRING RETAINER (NOT AVAILABLE) This part replaces 22408-216-000.

22408-230-000

Unavailable

6

PLATE, CLUTCH SPRING RETAINER

22408-230-000

Unavailable

7

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-202-010

Unavailable

7

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-216-000

Unavailable

8

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-216-000

Unavailable

9

RING A SET (20MM) (NOT AVAILABLE)

22903-200-000

Unavailable

10

PLATE A, CLUTCH

23311-200-000

$12.22

11

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

11

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

11

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

11

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49
