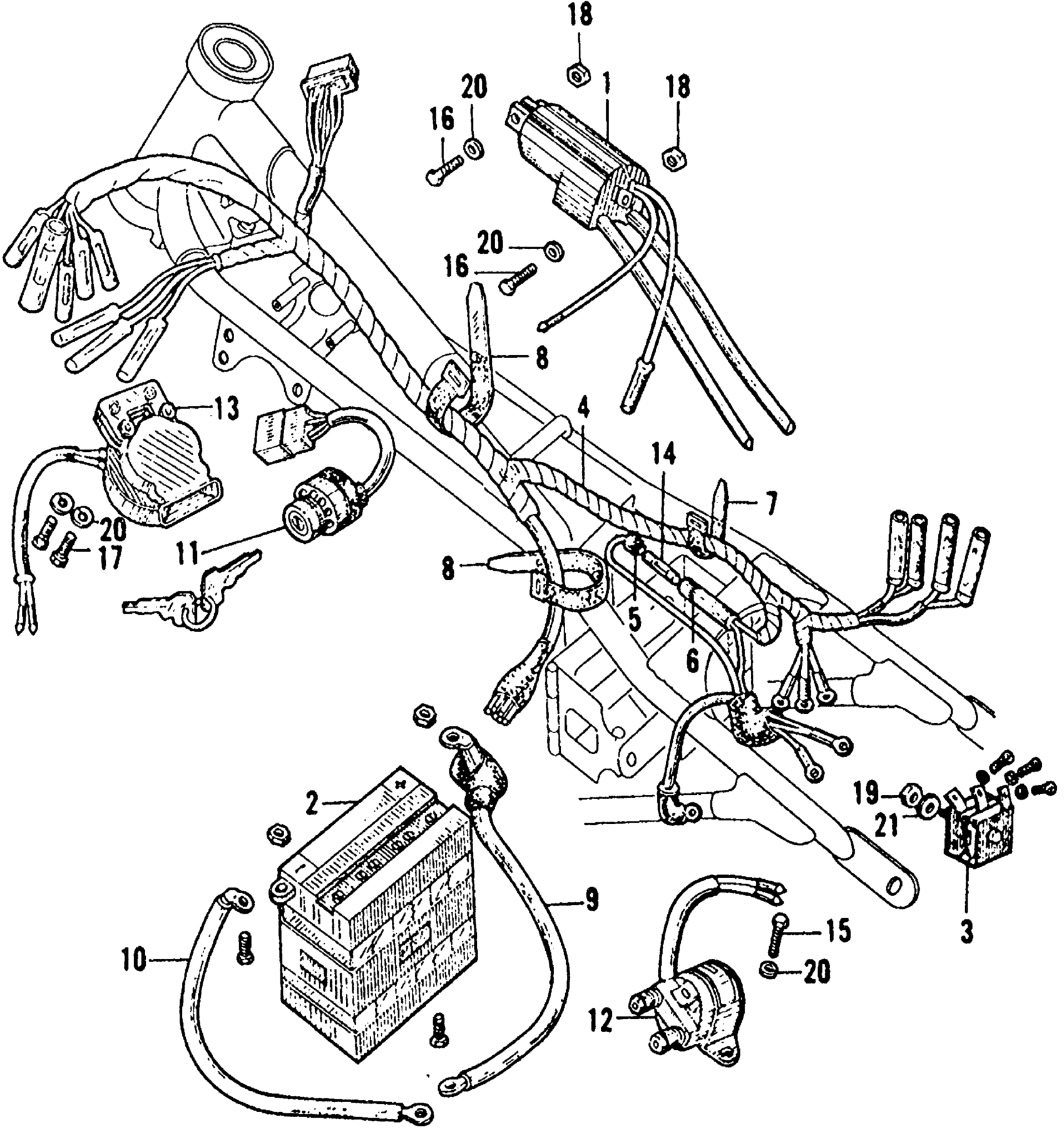

Honda CB160A MOTORCYCLE, JPN, VIN# CB160-9000001 CB/CL160WIRE HARNESS + BATTERY Diagram

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-216-000.

30500-216-405

Unavailable

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-216-405

Unavailable

BATTERY ASSY. (12N9-4B-1) This part replaces 31500-222-000.

31500-235-677AH

Unavailable

BATTERY ASSY. (12N9-4B-1) This part replaces 31500-235-677.

31500-235-677AH

Unavailable

BATTERY ASSY. (12N9-4B-1)

31500-235-677AH

Unavailable

RECTIFIER

31700-216-000

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 1047936 This part replaces 32100-216-000.

32100-216-315

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 1047937 This part replaces 32100-216-000.

32100-216-315

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 1047936

32100-216-315

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 1047936 This part replaces 32100-216-600.

32100-216-315

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 1047936 This part replaces 32100-216-601.

32100-216-315

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 1047937 This part replaces 32100-216-601.

32100-216-315

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 1047936 This part replaces 32100-216-671.

32100-216-315

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 1047937 This part replaces 32100-216-671.

32100-216-315

Unavailable

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

BAND B2, CABLE HARNESS This part replaces 32161-286-000.

95014-62200

$2.11

BAND B2, WIRE

95014-62200

$2.11

BAND B2, CABLE HARNESS This part replaces 32161-286-000.

95014-62200

$2.11

BAND B2, CABLE HARNESS This part replaces 32162-286-000.

95014-62200

$2.11

BAND B2, WIRE

95014-62200

$2.11

CABLE, STARTER MOTOR (NOT AVAILABLE)

32401-216-000

Unavailable

CABLE, BATTERY GROUND (NOT AVAILABLE) This part replaces 32601-216-000.

32601-222-000

Unavailable

SWITCH KEY, COMBINATION (NOT AVAILABLE)

35010-216-000

Unavailable

SWITCH, MAGNETIC This part replaces 35850-216-154.

35850-216-155

Unavailable

HORN ASSY. (NOT AVAILABLE)

38100-216-000

Unavailable

FUSE (15A)

98200-11500

$1.49

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

BOLT, HEX. (6X75) (SOURCE: VINTAGE PARTS INC.) | Use from Frame SN 7087141 This part replaces 92000-06075.

92101-06075-0A

Unavailable

BOLT, HEX. (6X75) (NOT AVAILABLE) | Use from Frame SN 7087141

92101-06075-0A

Unavailable

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (6X25) This part replaces 92000-06024.

92101-06025-0A

$1.62

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92000-06025-00

Unavailable

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

NUT, HEX. (6MM) | Use from Frame SN 1087141 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) | Use from Frame SN 1087141 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) | Use from Frame SN 1087141 This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) | Use from Frame SN 1087141 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) | Use from Frame SN 1087141 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) | Use from Frame SN 1087141

94001-06200-0S

$1.49

NUT, HEX. (6MM) | Use from Frame SN 1087141 This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

NUT, HEX. (8MM)

94031-08000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
