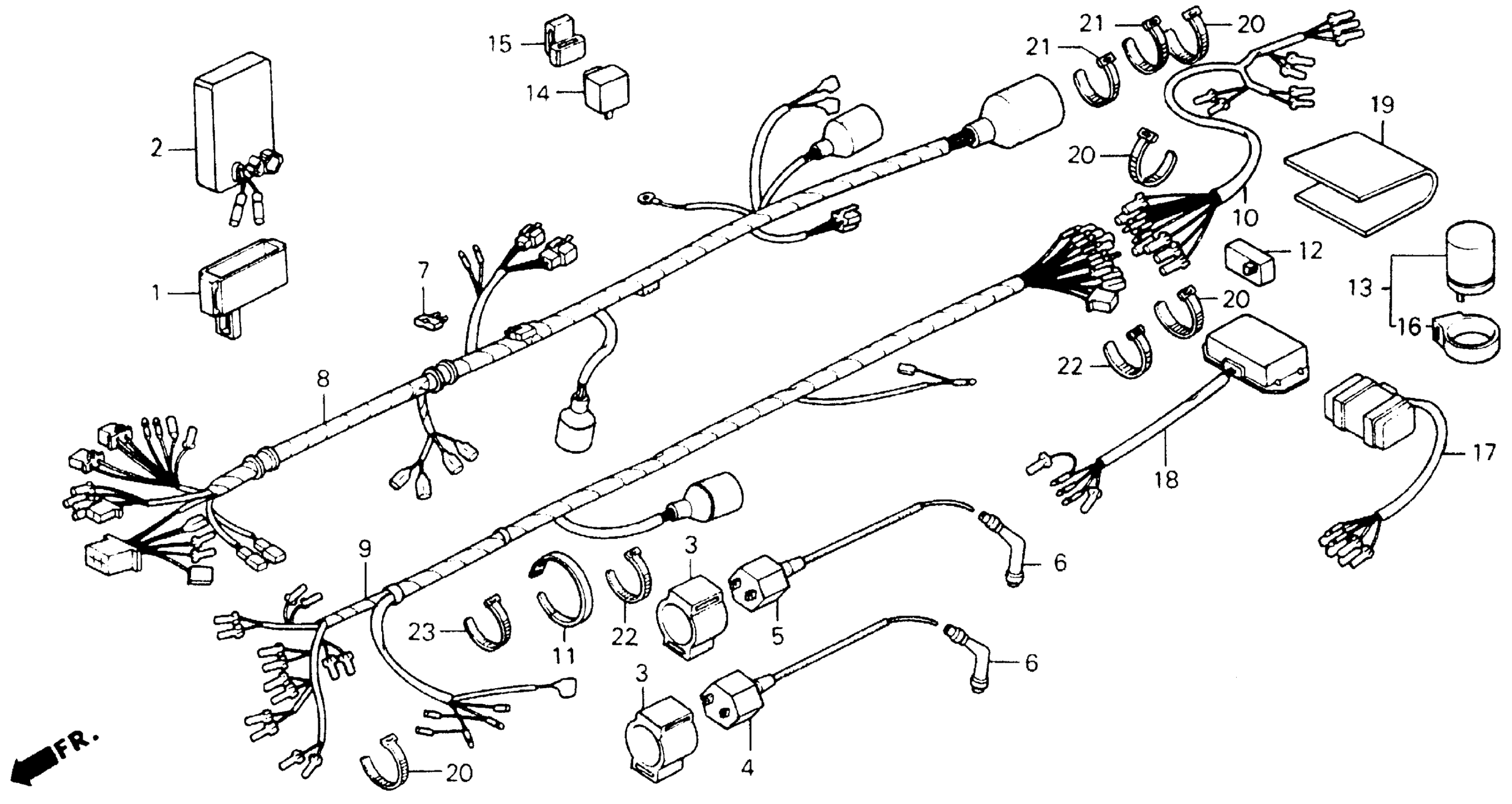

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HE0-000

Unavailable

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-KC1-921

Unavailable

3

SUSPENSION, IGNITION COIL

30506-KV3-771

$11.89

4

COIL, IGNITION This part replaces 30510-KC1-920.

30510-KT0-405

$77.33

4

COIL, IGNITION

30510-KT0-405

$77.33

5

COIL, IGNITION

30510-KT0-405

$77.33

5

COIL, IGNITION This part replaces 30520-KC1-920.

30510-KT0-405

$77.33

6

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

6

CAP ASSY. | Use up to Frame SN LK001569 This part replaces 30700-KJ9-010.

30700-GAR-003

$19.81

6

CAP ASSY. This part replaces 30700-KJ9-020.

30700-GAR-003

$19.81

7

RECTIFIER, SILICON

31700-196-000

$26.42

8

WIRE HARNESS (NOT AVAILABLE)

32100-KC1-920

Unavailable

9

SUB-WIRE HARNESS A (NOT AVAILABLE)

32101-KC1-920

Unavailable

10

SUB-HARNESS C (NOT AVAILABLE)

32103-KC1-920

Unavailable

11

BAND, CABLE

32161-402-000

Unavailable

12

RELAY, ENGINE STOP (NOT AVAILABLE)

36100-KC1-920

Unavailable

13

RELAY, CHANGE LAMP

38300-388-711

Unavailable

14

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

15

SUSPENSION, TURN SIGNAL RELAY

38306-KJ6-740

$7.49

16

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

17

WARNING UNIT, SPEED

38550-388-711

Unavailable

18

INDICATOR UNIT, STARTER (NOT AVAILABLE)

38800-KC1-920

Unavailable

19

RUBBER

50241-KC1-830

Unavailable

20

BAND, WIRE (95MM)

90650-KV6-003

$3.12

21

BAND, WIRE

90650-KW3-000

$4.48

22

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

23

CLIP, WIRE

91406-166-000

$3.83
